The Grande unit water unit this will be really filling a bottling this is actually top-of-the-line done for filling water along with other liquids into containers with ease and effectiveness. This method is simply a unit organizations and that can be vital looking for big levels of water bottling for the building blocks this is really regular. The Grande unit water unit this will be really bottling crafted from top-quality materials that ensure its durability and durability. The apparatus can accommodate sorts various sizes of containers, which makes it versatile and well suited for various companies and organizations. Water unit this is actually technology definitely bottling is advanced guarantees accuracy and precision in filling water along with other liquids into containers. The device features filling this is actually automatic, which eradicates the necessity for handbook labour, leading to increased efficiency notably less downtime. The stuffing fluid are now actually very easy to work plus don't need any expertise technical making them worthy of small to medium-sized businesses being just starting straight down and require a reduced priced and easy-to-use unit this is actually filling. The Grande unit really filling simple to produce that will prepare to have rapidly. Water unit this might be really bottling furthermore beautifully made with safety features which can make it safe to work with and prevent accidents or accidents. Kit is produced with quality controllers that ensure the bottling procedure runs effectively and seamlessly. Additionally, the item calls for maintenance this will be really minimal that makes it a good investment very good is durable virtually every business. The price water unit this is really filling furthermore designed with energy-saving features, rendering it cost-efficient and eco-friendly. The equipment was built to save lots of on electricity, water, and substances, reducing production costs and increasing profits

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10, 000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions

Products Description

Mineral Pure Water Filling Production Machine

1. Water filling line/liquid filling line includes: Washing-filling-capping 3 in 1 machine, lamp inspection, label shrinking machine, inkjet printer, hot shrink film packer and conveyors. It is a full automatic production line.
2. The water filling line is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
3. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
4. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.
5. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.
6. It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum

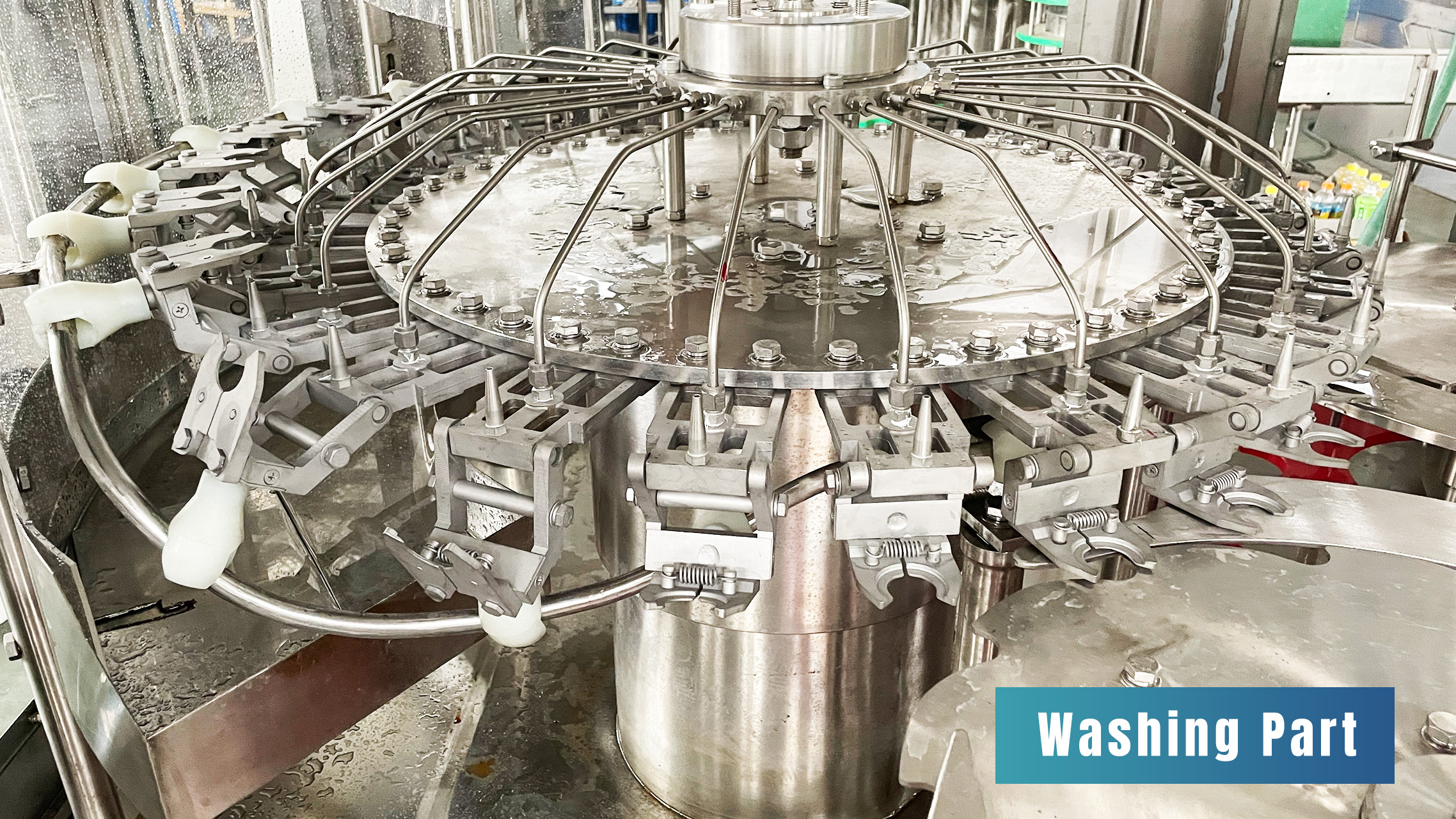

Washing part grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip. After the gripping, the bottle is turned upside down with 180 degree and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again

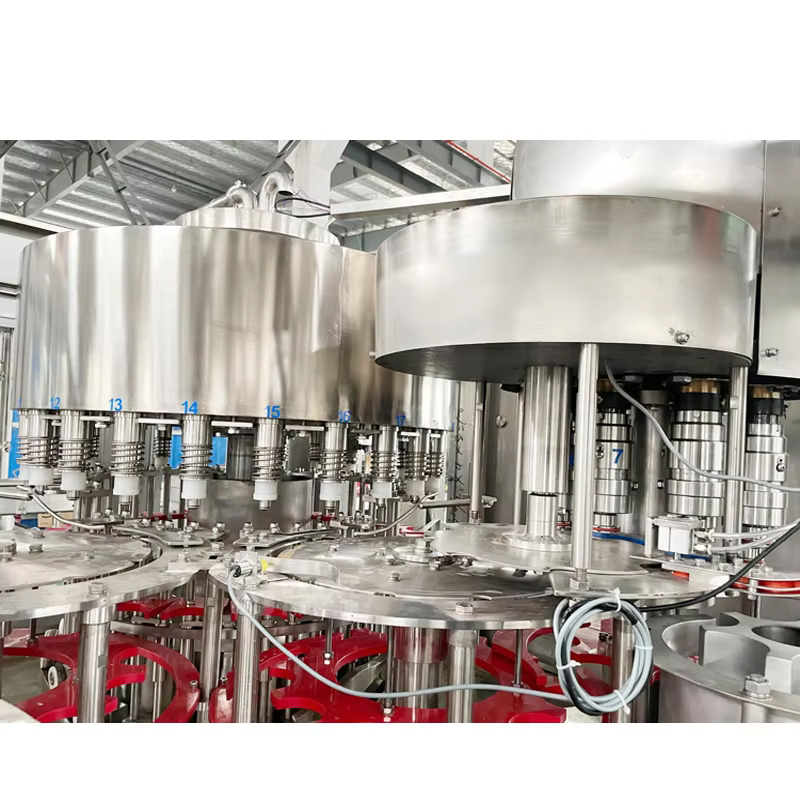

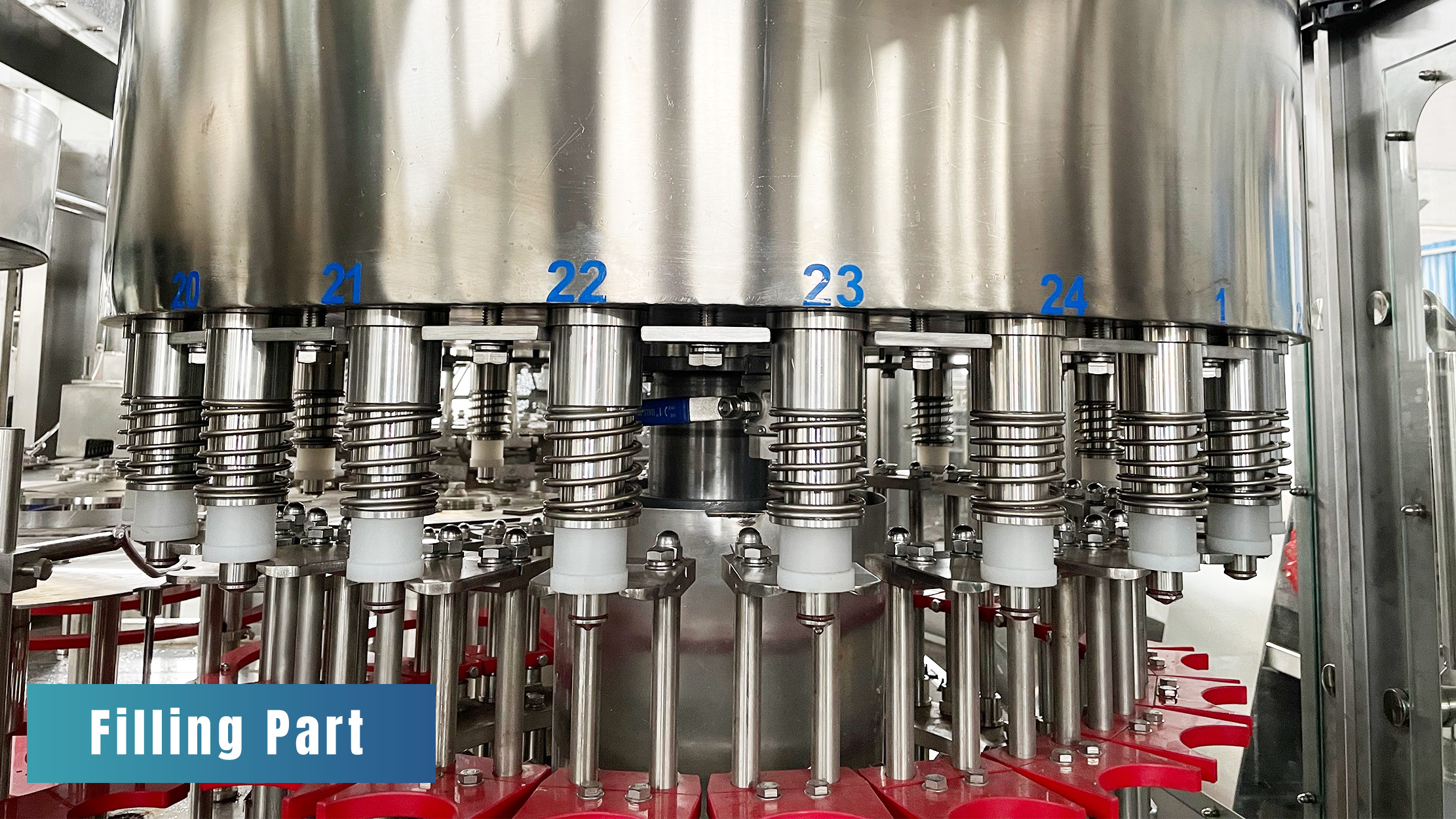

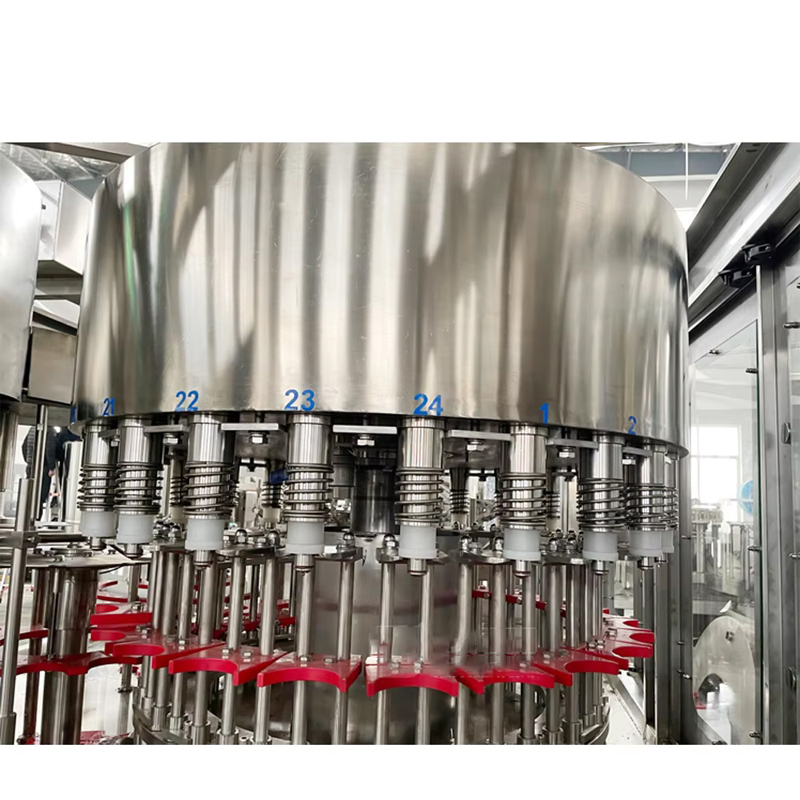

Filling part Long tube filling type with 2 times filling process to make sure perfect filling level Liquid tank, filling valves, controlling rings, upgrading cylinder. High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic

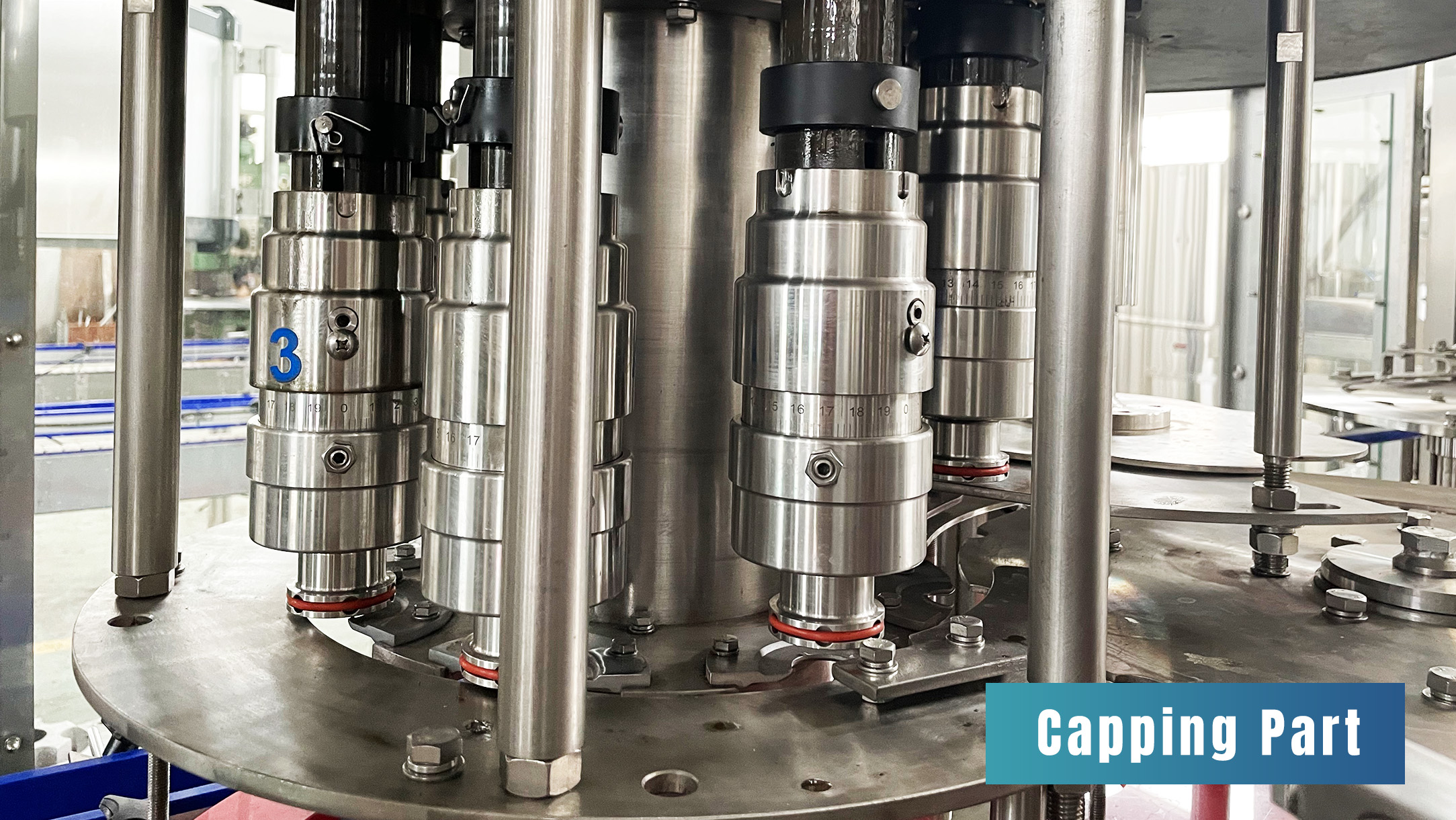

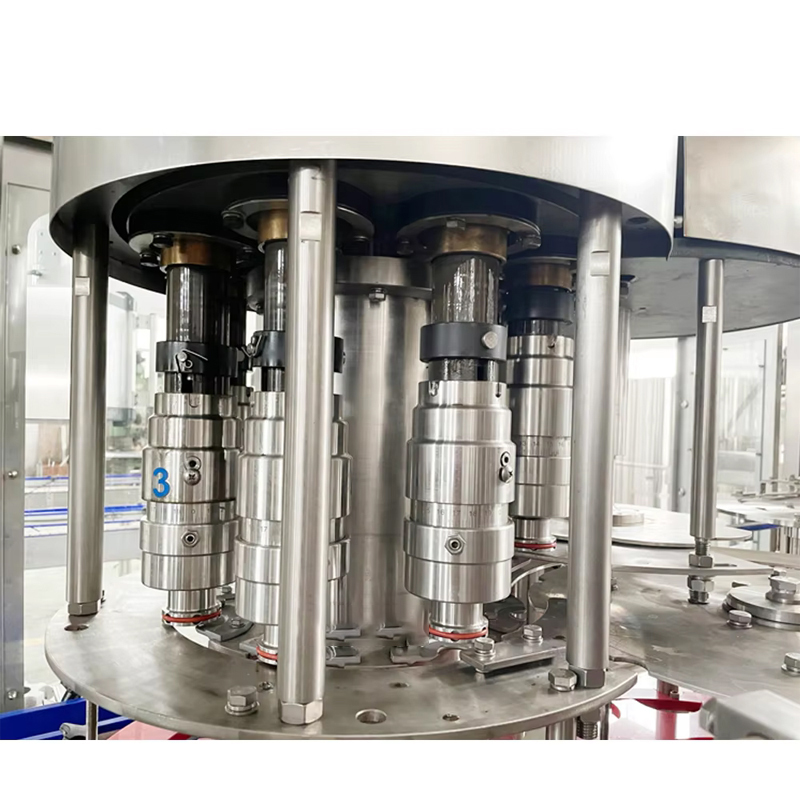

Capping part Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The heads are raised and lowered by the action of a follower that is riding on a shaped cam

Main technical parameter

Model	XGF  8-8-3	XGF 14-12-5	XGF 16-16-6	XGF 18-18-6	XGF 24-24-8	XGF 32-32-10	XGF 40-40-12
Capacity 500ml/BPH	2000	3000	4000	8000	12000	14000	16000
Suitable bottle shape and size	Both round of square bottle, 220ml-2000ml, Dia: 50-108mm, Height: 150-340mm
Compressed air pressure	0.3-0.7MPa
Bottle washing medium	Sterile water
Washing pressure	0.25MPa
Main motor	1.5	2.2	2.2	2.2	4.5	5.5	7.5
Dimension(mm)	2000*1600*2300	2200*1800*2300	2400*1900*2300	2500*2000*2300	2700*2100*2300	2970*2260*2700	3780*2800*2700
Weight(KG)	2000	2500	3000	3500	4500	6500	8500

NAME	BRAND	AREA
PLC	Siemens	Germany
INVERTER	Siemens	Germany
CONTACTOR	Siemens	Germany
TOUCH SCREEN	Siemens	Germany
INVERTER	Siemens	Germany
MOTOR	ABB	SWISS
PNEUMATIC PARTS	FESTO	GERMANY
ELECTRICAL PARTS	SCHNEIDER	FRANCE

Turnkey Solution

Juice filling machine

Carbonated drink filling machine

Mixed fruit juice mixing system

Automatic soft drink filling line

Mineral water filling machine

Water bottle filling machine

Company Profile

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10, 000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions. We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line, can filling and sealing line, complete blowing labeling and packaging system
