Automatic Carton Box Packing Sealing Machine
Machine application:
Comprehensive overseas various packing machine features, latest successful development of automatic box packing machines, according to the box packing requirements, can automatically organize the arrangement; new design, compact structure, suitable for PET bottles, plastic bottles, glass bottles, two cans and three-piece cans automatically put into paper (plastic) box, the product is the key parts are made of high quality imported parts, is highly cost-effective. It applies to beer, beverage, food, chemical, pharmaceutical and other industries packing process. Particularly suitable for assembly line use, easy to move; computer program control, simple operation, stable operation. The machine can be made electric packing machine; pneumatic packing machine; servo packing machine according to the driving mode
Carton packaging line, case erector
Customized carton packaging line, carton erector machine, carton sealing machine, case weighing machine, carton strapping machine
This carton packaging line Including carton erector, carton sealer, carton corner edge sealer, labeling machine and strapping machine which can be equipped with various options based on the requirements of our clients to save labor cost and improve working capacity

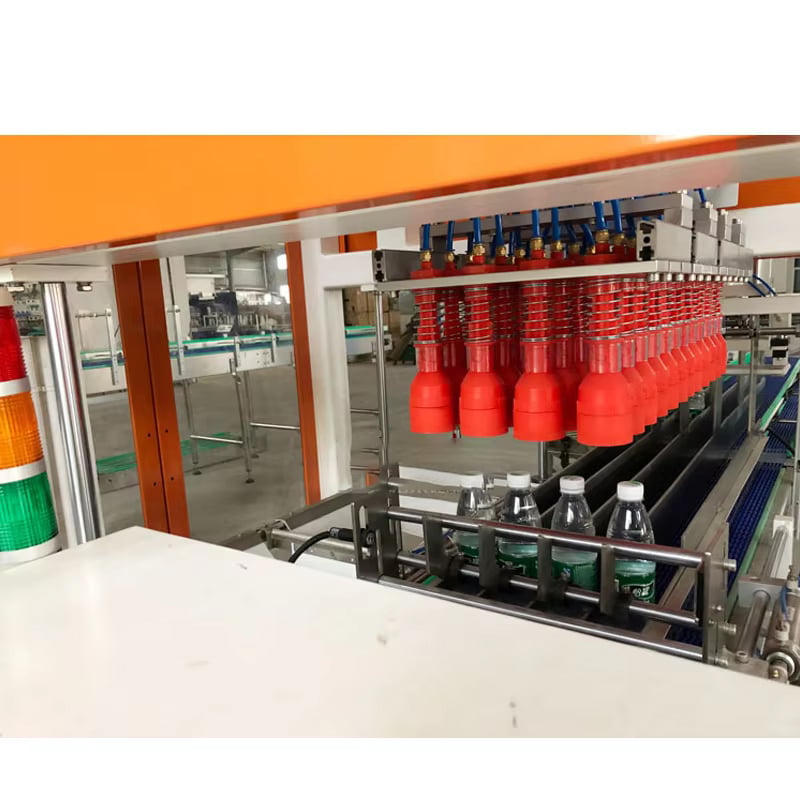

Bottle gripping system
Various series of gripper apply to different material, height and caliber bottle, It will be easy to change bottle type because gripper is easy to change

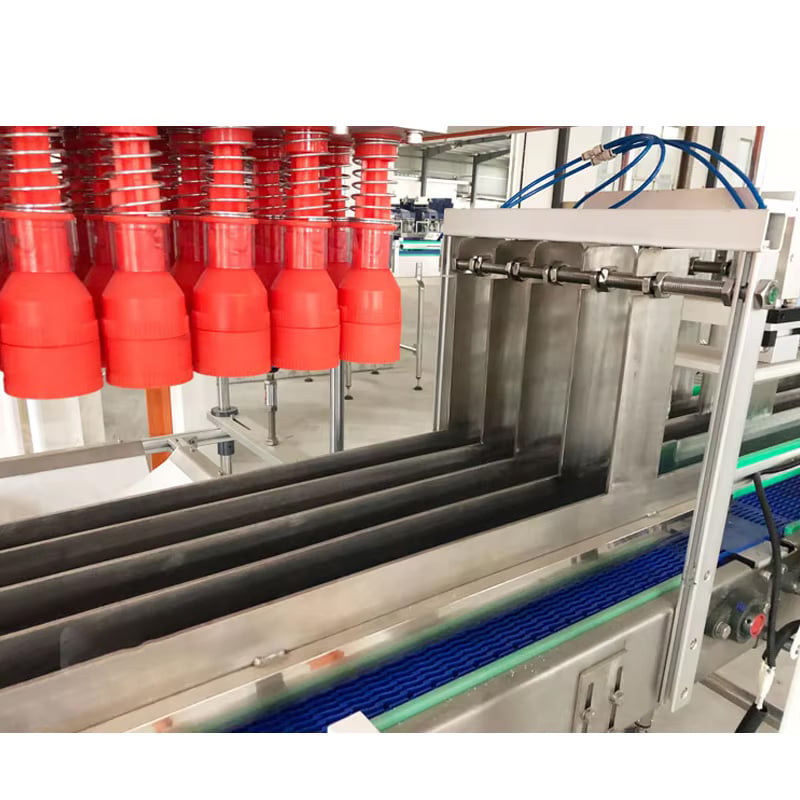

Bottles feeding are separated to multi channels at conveyor system, and then group divided and inspected evenly
Automatic bottle gripping system:
Main beam adopt 120*80 high tensile overloading industrial aluminum material, It will be more stable and energy efficient with SMC or AIRTAC air source components
Cardboard folding mechanism
The servo driver of this mechanism will drive the chain to fold the cardboard step by step
Cardboard folding mechanism
Different carton box like 3*4 or 4*6 and they are easy to change
Automatic system control cabinet
Case wraparound machine adopt Siemens PLC to control the complete system of the machine. The interface is Siemens touch screen with good display of production management and status
|
Machine model
|
GD-ZX10
|
|
Bottle type application
|
pet bottle or glass bottle, etc
|
|
Number of layer
|
one layer
|
|
Bottle size
|
200ml-1500ml
|
|
Control power
|
24V DC
|
|
Air compressure
|
0.4-0.6 MPa, 300L/Min
|
|
Capacity
|
4 boxes(3*4) 20 boxes/min 2 boxes (4*6) 10 boxes/min
|
|
Voltage
|
380V 50HZ 3P
|
|
Total Power
|
5kw
|
|
Conveyor belt height
|
1150mm
|
|
Machine size
|
2500*2000*2500 mm L*W*H
|
|
Machine weight
|
3000KGS
|
One stage or Second stage R.O. Water treatment system
Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine
Automatic OPP BOPP hot melt Glue labeling machine
Automatic BOPP labeling machine is widely suitable for different material of containers and labels. The cost of each label is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is one of the most economical models to make mass production and integrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, like changing the label is only needed to change the PLC program, the products concept that the equipment is used for users and considered for users is embodied in everywhere
Automatic PVC PE Sleeve Shrink Labeling Machine
This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc
Operating Principle Of Packaging Machine
The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping
GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions
We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line, can filling and sealing line, complete blowing labeling and packaging system
Q1: How to find suitable machine or complete beverage production line
A1: Looking for beverage filling machine in www.grandeemachine.en.alibaba.com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for
Q2: Are you a trading company or a manufactory
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years. We just not only sell drinking water machines and other related equipment, Quality is our culture. We have rich experienced engineers with technicians working team, providing good and after-sales service term, professional salesman terms
Q3: Do you have technical support after we purchased your machines
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems
Q4: If you buy our machines, can you offer us wear-out spare parts
A4: We provide our high quality machine 2 years guarantee, and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing
The Automatic beer wine glass bottle carton box case erector packer sealer packing machine is a highly efficient and versatile packaging device from GRANDEE MACHINE. This top-of-the-line machine was designed to automate the packaging process, saving you time, resources and ensuring the safe delivery of your products.
It can handle numerous bottles including beer, wine, and glass bottles of various sizes. It is ideal for small to medium-sized companies which are seeking a dependable, efficient and cost-effective method to their packaging procedures.
Designed with high-quality materials that ensure longevity and durability, it was made for easy maintenance and cleaning, making it a perfect investment for companies that need to find a device that can last for years without needing frequent repairs.
This eliminates inefficient manual packaging using its automatic packaging technology. Featuring its intelligent and streamlined packaging, it could handle large degrees of containers at a time, without making any damage or spillage.
It is simple to operate, together with user-friendly interface that makes it simple for staff to utilize and operate. It comes with an array of features such as automated bottle positioning, intelligent bottle routing, and sealing systems which can manage a different range of carton sizes and shapes.
This is energy-efficient and uses minimal power to operate, rendering it eco-friendly while reducing your electric bills.
Increase your production rate significantly. Get a GRANDEE MACHINE today.
