Automatic Carbonator Co2 Soft Beverage Mixer Carbonated Drink Mixing Machine

Introducing, the Automatic Carbonator Co2 Soft Beverage Mixer Carbonated Drink Mixing Machine from GRANDEE MACHINE, the perfect addition to your beverage-making arsenal. This innovative machine takes the hassle out of Carbonating your favorite drinks, making it easy to create delicious carbonated beverages right at home.

Simple to use and highly efficient, the GRANDEE MACHINE’s Automatic Carbonator Co2 Soft Beverage Mixer Carbonated Drink Mixing Machine is designed to help you create perfectly carbonated drinks every time. With its intelligent carbonation system and advanced technology, this machine ensures a consistent and even distribution of CO2 throughout your beverages, resulting in a smoother, better-tasting drink every time.

Whether you're looking to create carbonated water, sodas, or other soft drinks, this mixer has got you covered. With its powerful motor and 3-liter carbonation tank, it can carbonate up to 30 liters of water per hour, making it ideal for both personal and commercial use.

The GRANDEE MACHINE’s Automatic Carbonator Co2 Soft Beverage Mixer Carbonated Drink Mixing Machine is also incredibly easy to use. Simply fill the water tank with your desired amount of water, add your favorite flavorings or syrups, and let the machine work its magic. It even comes with a digital display screen, allowing you to easily adjust the settings and monitor the carbonation level of your drinks.

With its sleek and modern design, the GRANDEE MACHINE’s Automatic Carbonator Co2 Soft Beverage Mixer Carbonated Drink Mixing Machine is sure to complement any kitchen or commercial setting. And thanks to its high-quality construction and durable materials, it is built to last, providing you with reliable performance and excellent results for many years to come.

So, why wait? Whether you're a home chef looking to impress your guests with homemade carbonated drinks, or a business owner in need of a reliable carbonation solution for your beverages, the GRANDEE MACHINE Automatic Carbonator Co2 Soft Beverage Mixer Carbonated Drink Mixing Machine is the perfect choice. So go ahead and add it to your cart today

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions

Products Description

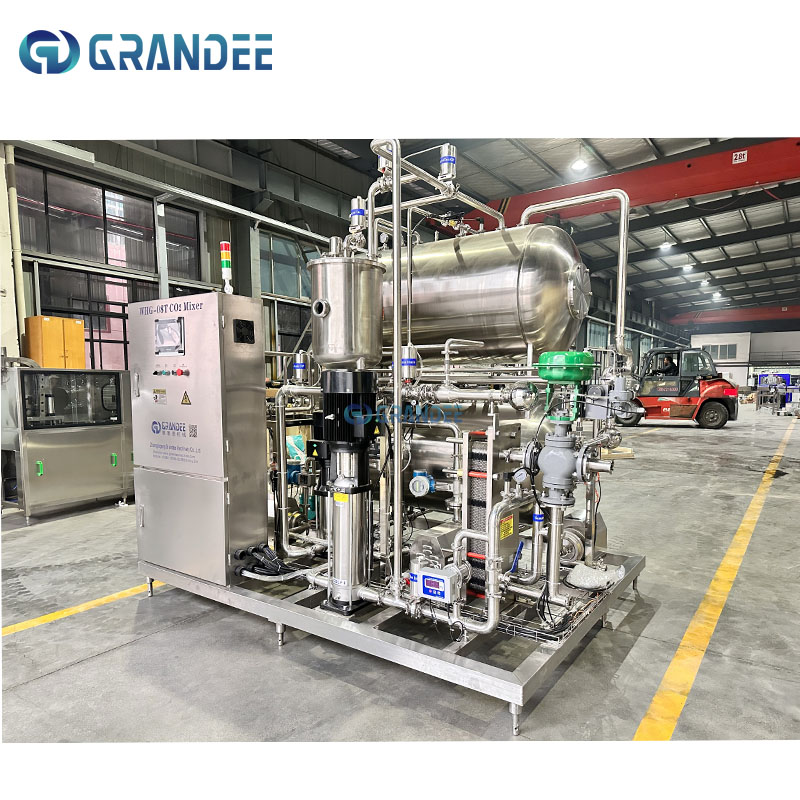

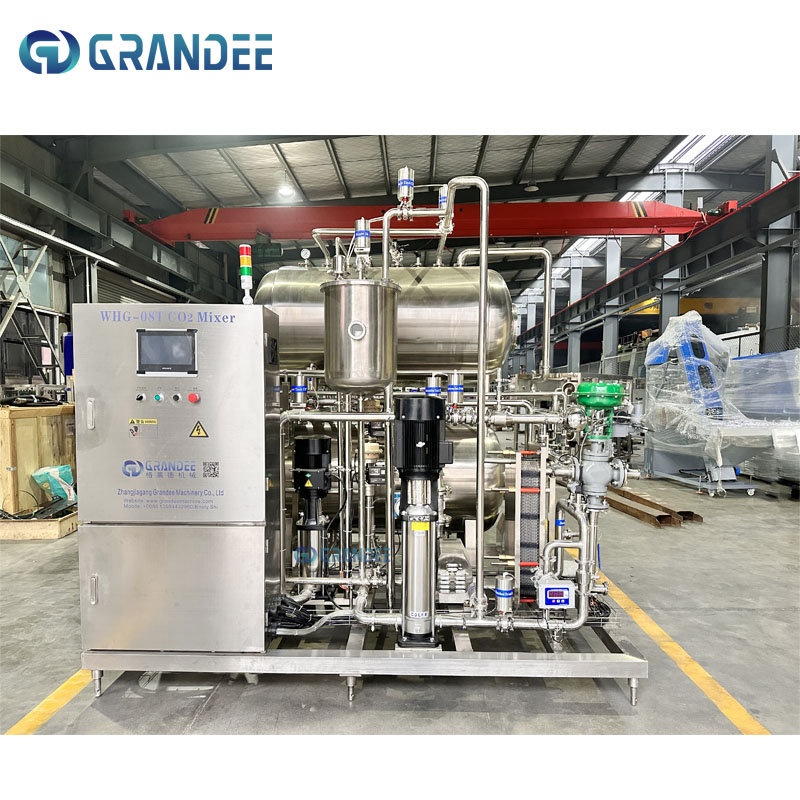

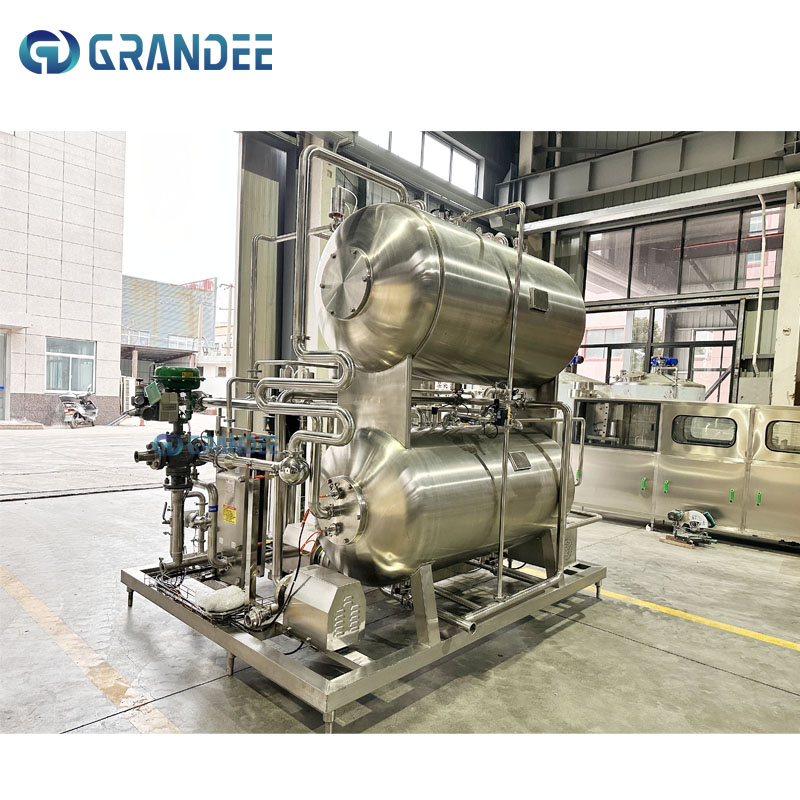

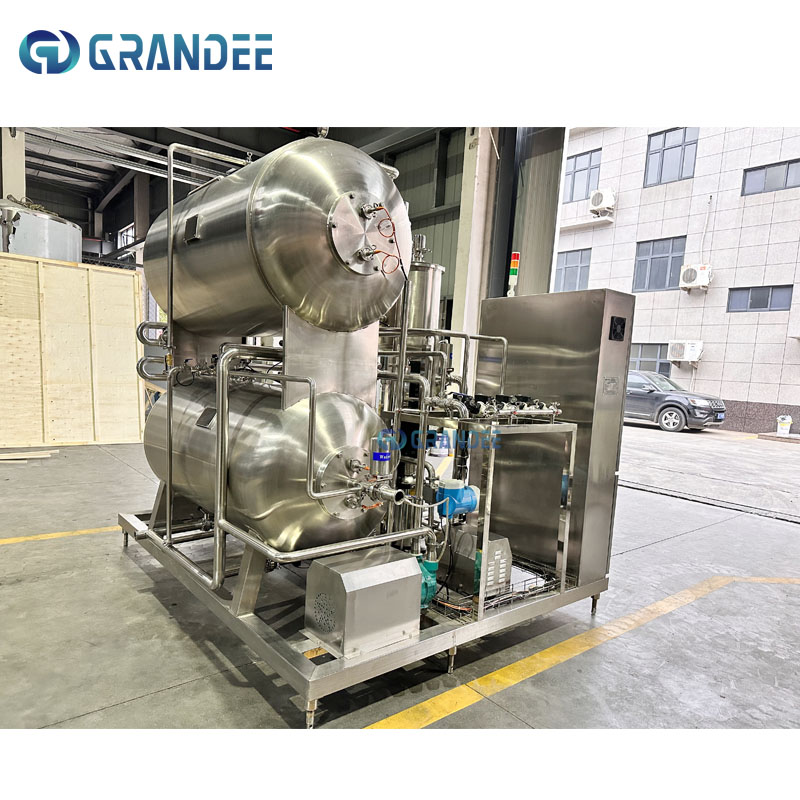

Carbonated Drink Mixer QHS-8000

1. Automatic with Alarm:The pressure in all tank and the liquid level of the machine are all controlled automatically with PLC. Once a error occurs, the alarm lamp will light and the alarm ring will sound and the mixer will stop automatically

2. Easy operation and regulation:The operation of the mixer is especially convenient. Only turn around the buttons according to the pre-set program, the normal operation can be carried out. The production capacity, water-sugar proportion and gas content can be adjusted without exchanging and parts

3. Even mixing and accurate proportion:One time mixing process is adopted, so the mixture is even. The mixing proportion of water and sugar is strictly controlled with measuring needle valve with fine regulation. Its precision can reach about 5%

4. Enough gas content:The mixer adopts vacuum desoxidation technology at normal temperature. Its desoxidation ratio reaches above 90%. It has a baffle heat exchanger to cool the sugar-water mixture and carry out twice carbonation, so its carbon content is especially high

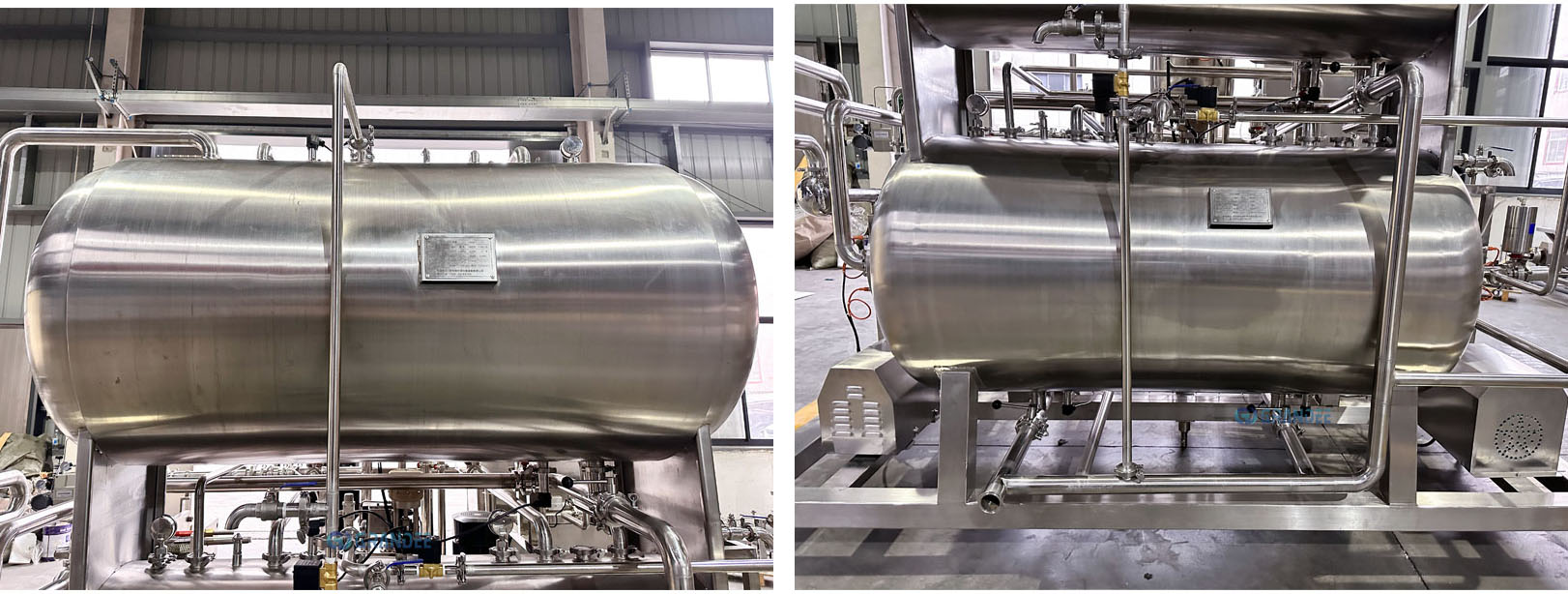

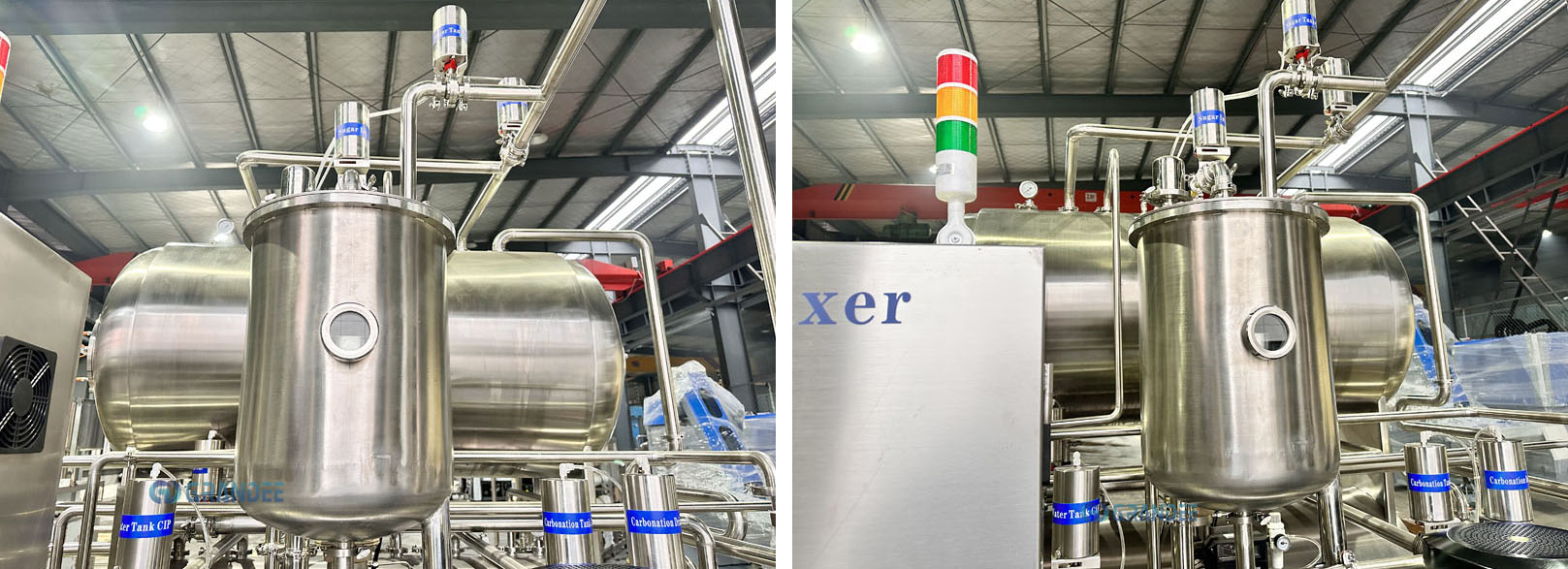

Carbonation Tank  / CO2 Mixing Carbonizing Tank / Water Tank

304/316 Stainless steel balanced pressure tank. Mixing uniformity, the proportion is accurate: Use flow meter to control liquid and CO2 ratio. The structure is healthy and easy to clean The machine adopts a closed system made by stainless steel and has the CIP flavor cleaning equipment to clean the equipment and pipeline by the liquid antiseptic and hot water, and then to ensure the beverage made by the machine can meet the health requirements

Process flow:
1. When the pure water is vacuum degassed through the water tank, it enters the pre-mixing tank and is premixed with a part of CO2, 2. Premixing is completed through the pre-mixing pump and sugar into the carbonization tank, and carbonization for secondary carbonization with CO2

Sugar Tank/ Pneumatic Butterfly Valve

The sugar in the sugar tank goes through a syrup pump, a proportional valve and water to be mixed before moving on to the next stage

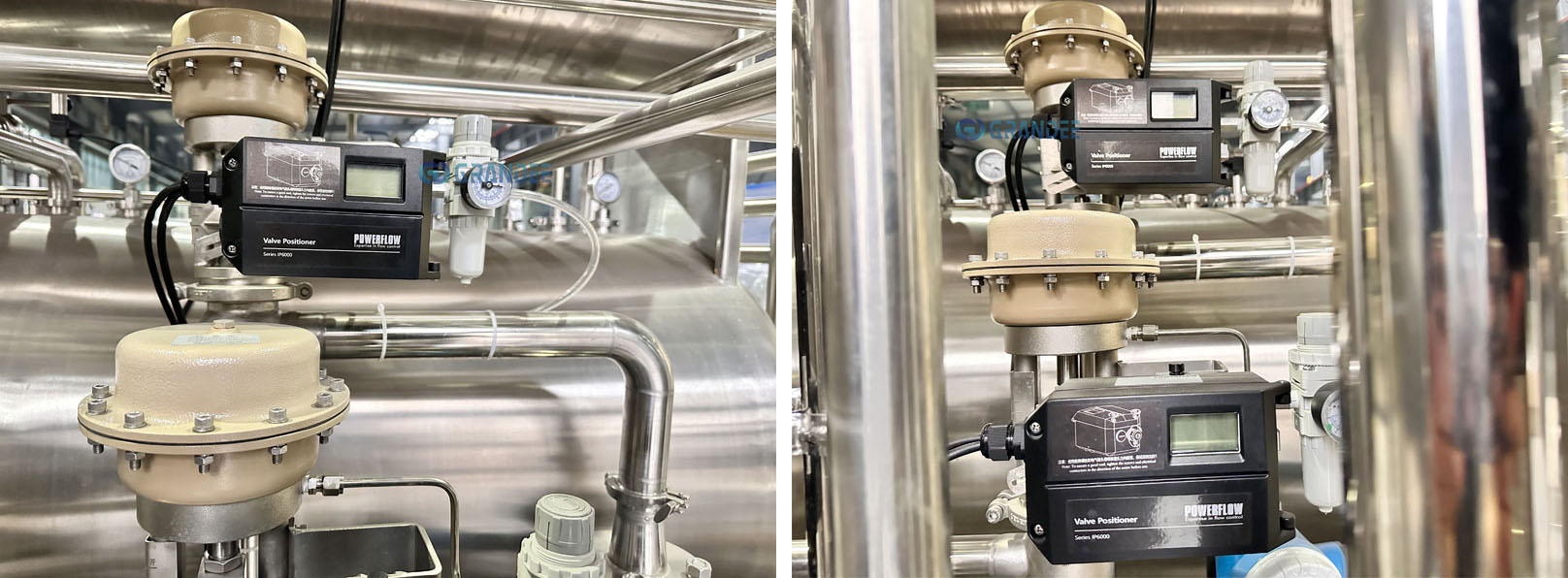

Proportional valve

The proportional valve precisely controls the ratio of sugar and water in the mixer equipment, reducing the risk of error and allowing the product to achieve the highest mixing effect

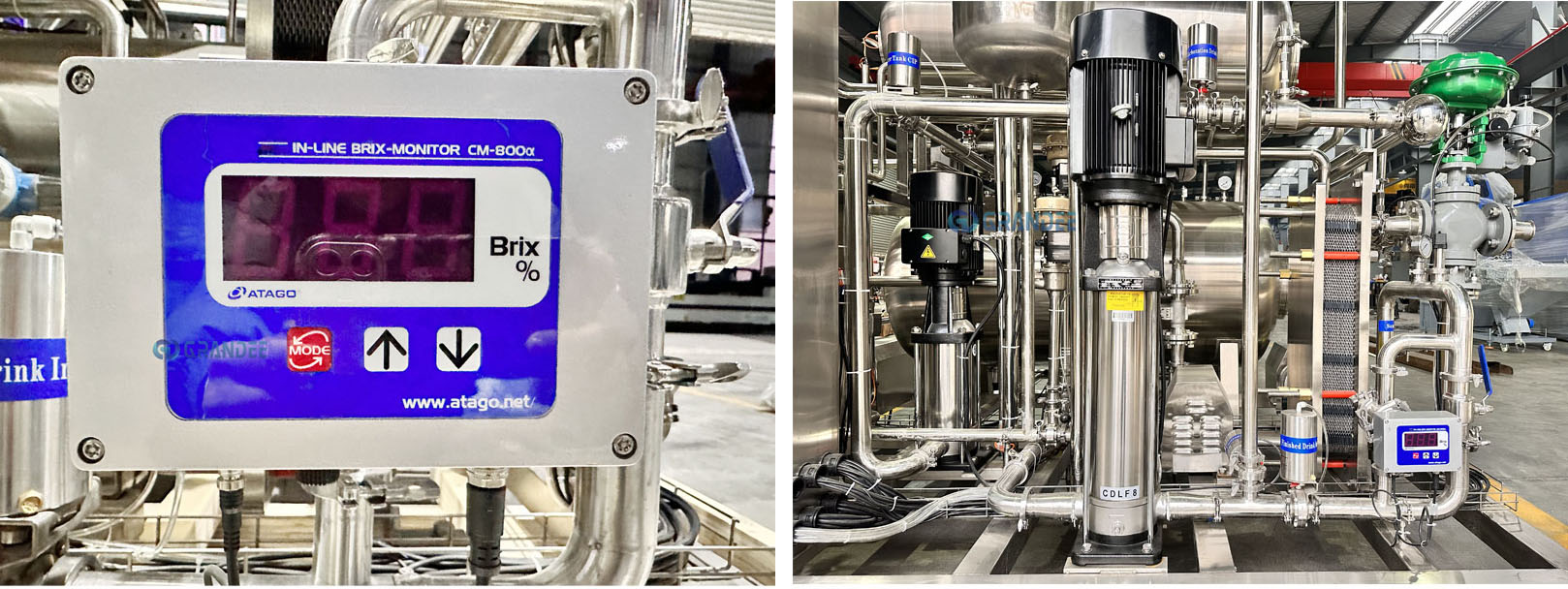

Online sugar concentration analyzer

Based on the principle of light refraction, it is widely used in the online concentration of solution in food, pharmaceutical, biochemical and mechanical processing industries. Automatic detection and control, can be viewed and set through the concentration analyzer display panel and mobile phone Bluetooth connected APP software. Various parameters, with switching control signal output

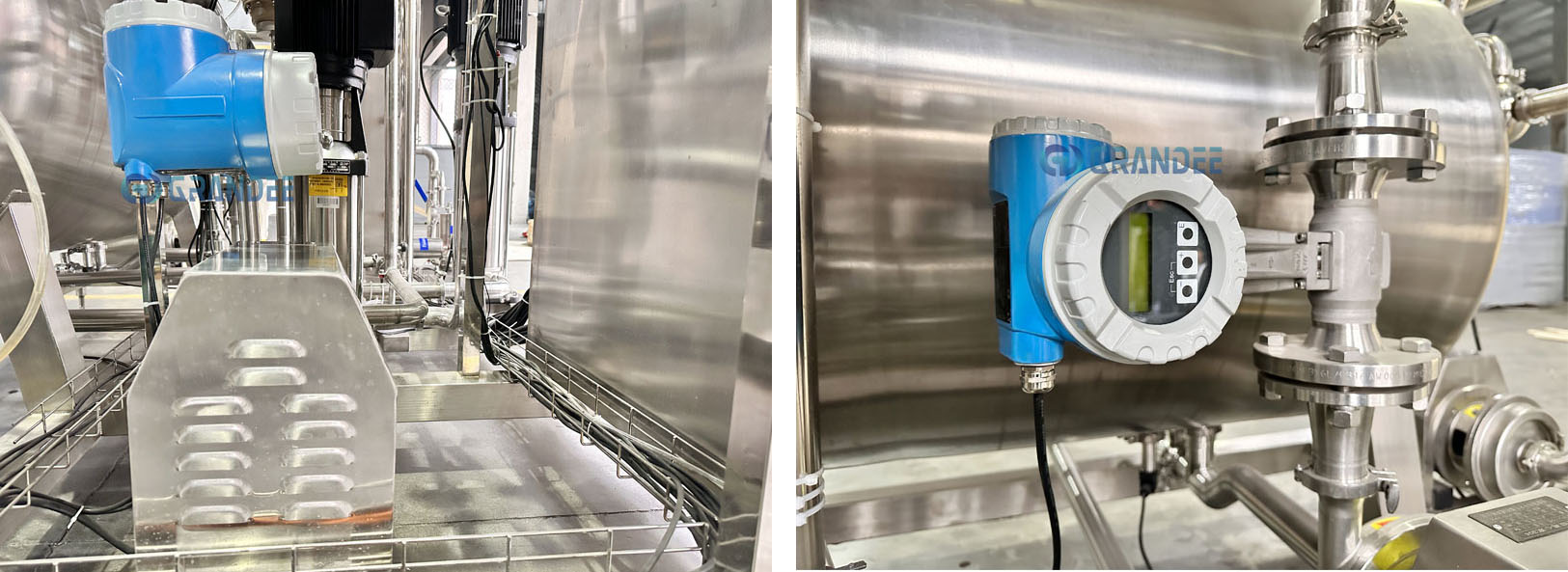

Flow meter

In the beverage industry, high-precision mass flow meter ensure precise proportional metering processes and results for sugar and water ingredients

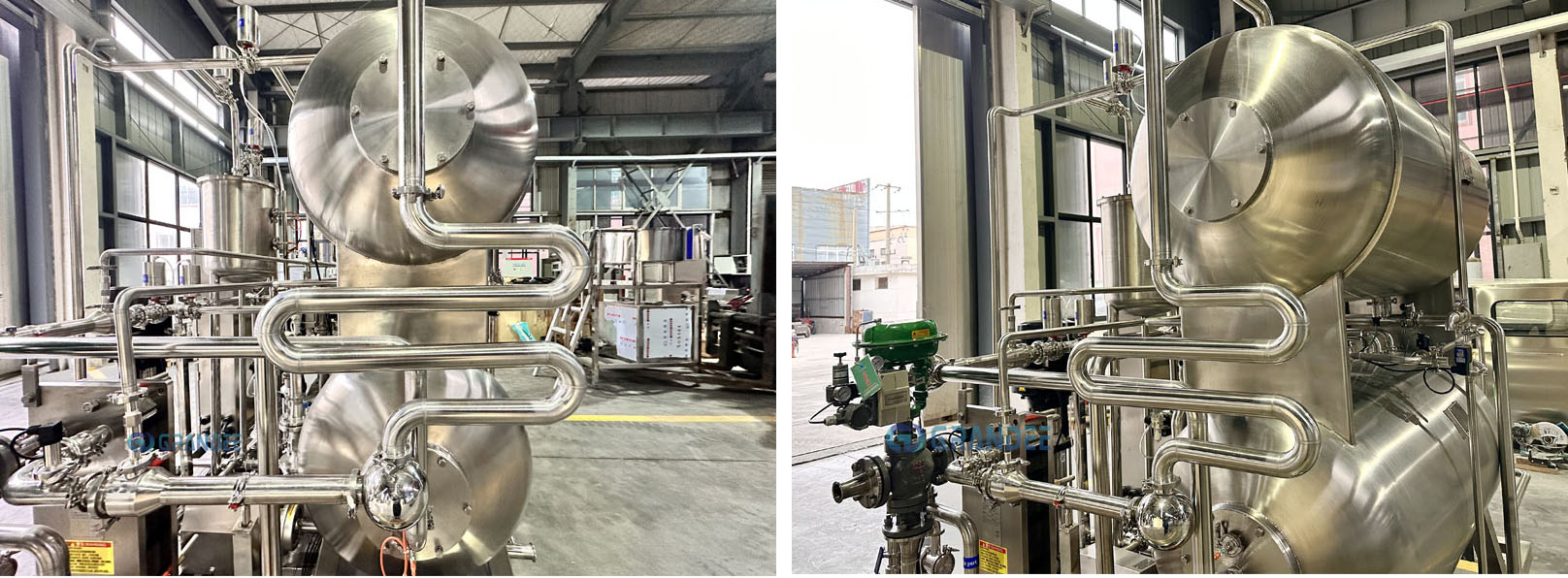

“S” Mixing Pipe/ Mixing Ball

The function of the S-type mixing tube and mixing ball is to mix carbon dioxide and material thoroughly before entering the carbonated tank, so that the beverage mixing effect is better

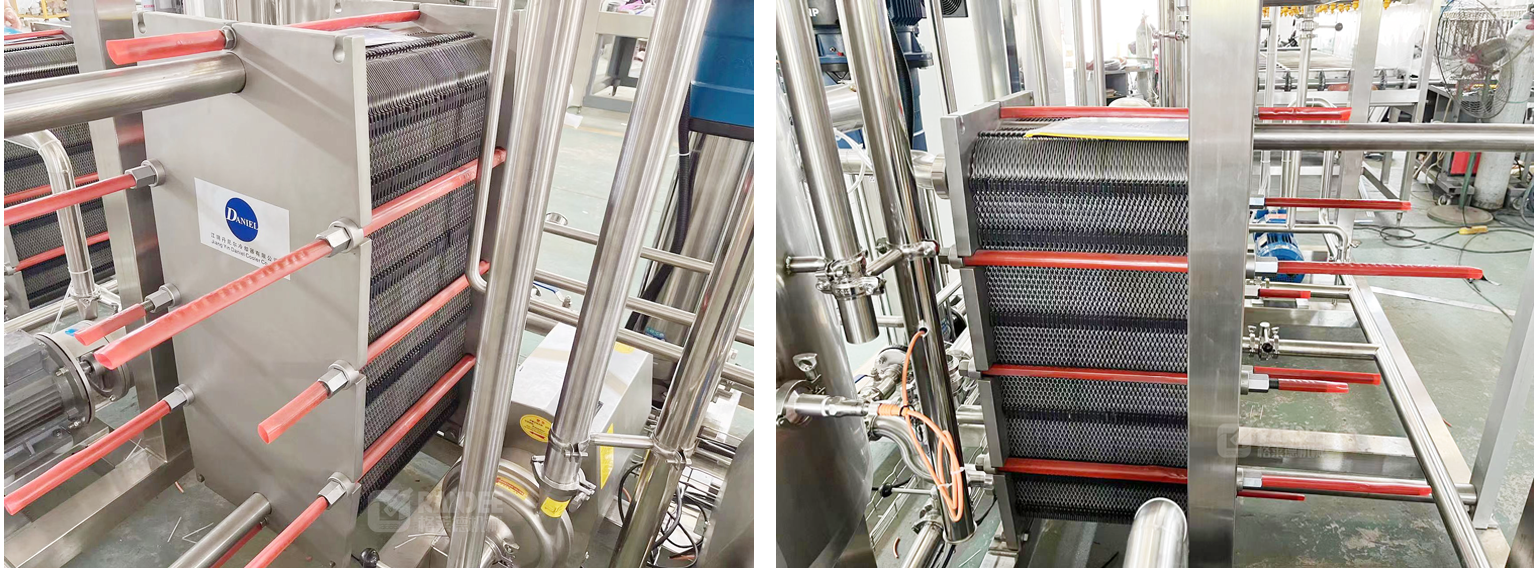

Heat plate exchanger

The beverage pump extracts the raw liquid into the temporary storage tank, pressurize the liquid in the tank to the plate heat exchanger through the high pressure pump for cooling, then mixes with the carbon dioxide gas, and finally enters another storage tank for secondary mixing, increasing the mixing effect, so that the carbonated beverage is completed and the stainless steel pipe is connected to the filling machine. Function: Carbonated drink inlet and out and cooling water inlet and outlet

Main technical parameter

Model	QHS-8000						QHS-2500	QHS-5000	QHS-8000	QHS-10000	QHS-12000
Production capacity (t/h)	8T/H						2000-3000	4000-5000	8000-9000	10000-12000	12000-14000
Mixing ratio range	1：3—1：7
CO2 content(CO₂ and H₂O volume ratio)	3.8-4.2
Finished drink temperature	＜4°
Semi-finished water and material temperature	4°-15°
CO2 consumption	About 350-450L/m
Finished drink pressure	0.2-0.3MPa						3.5kw	5.5kw	7.5kw	8.2kw	11kw
Finished drink outlet material pressure	0.3-0.6MPa						2.8*1.9m	3.2*2.2m	3.4*2.5m	4.8*2.3m	5.5*3.3m
Weight	2300kg						2.5m	2.5m	2.5m	2.5m	2.5m
Power	18.5kw						1500kg	2000kg	3500kg	5000kg	6000kg
Dimension	2980*2220*2510mm
Voltage	380V 50HZ 3P or customize
Material	Tank thickness: 3mm, with heat preservation, SUS304

Main configuration:

NO	Name	Brand	Country
1	Mixing pump	CNP	China
2	PLC	INOVANCE	China
3	Frequency changer	INOVANCE	China
4	Discharge pump	MATLONG	China
5	MATLONG	ATAGO	Japan
6	Proportional valve 2pcs	Yuan An	China
7	Flow meter 2pcs	Emerson	USA
8	Pressure sensor	Xuan sheng	China
9	Switch element	Schneider	French
10	Intake proportional valve	Shen ji	China
11	Heat plate exchanger	Purson	China

Hot sale and recommend products

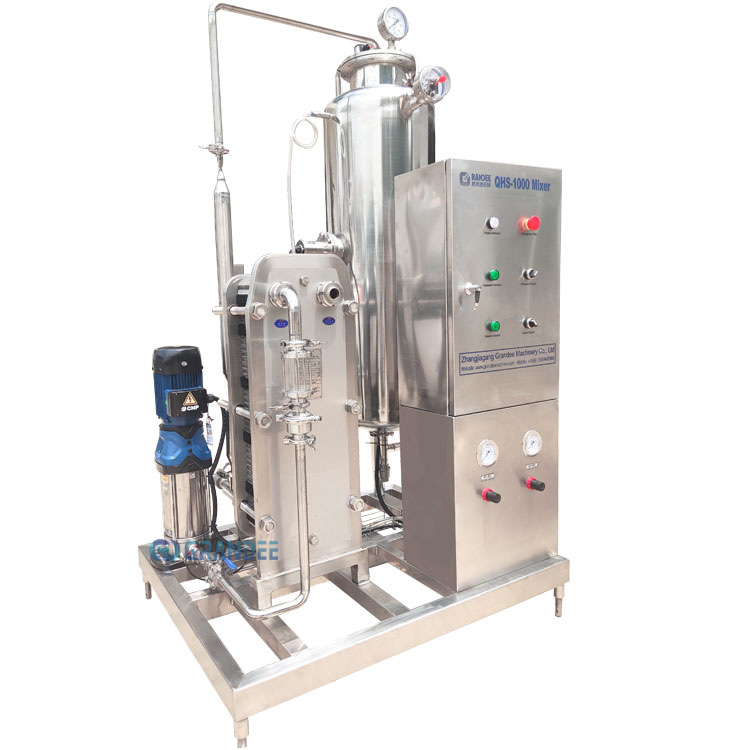

1000L/H to 2000L/H carbonation mixer

2500L/H to 3000L/H carbonation mixer

5000L/H-7000L/H carbonation mixer

8000L/H to 10000L/H carbonation mixer

For more information, please feel free to contact us to send an inquiry

Turnkey Solution

Juice filling machine

Carbonated drink filling machine

Automatic soft drink production line

Mixed fruit juice mixing system

Mineral water filling machine

Bottle filling packaging machine

One stage or Second stage R.O. Water treatment system

Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine

Automatic OPP BOPP hot melt Glue labeling machine

Automatic BOPP labeling machine is widely suitable for different material of containers and labels. The cost of each label is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is one of the most economical models to make mass production and integrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, like changing the label is only needed to change the PLC program, the products concept that the equipment is used for users and considered for users is embodied in everywhere

Automatic PVC PE Sleeve Shrink Labeling Machine

This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc

Operating Principle Of Packaging Machine

The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping

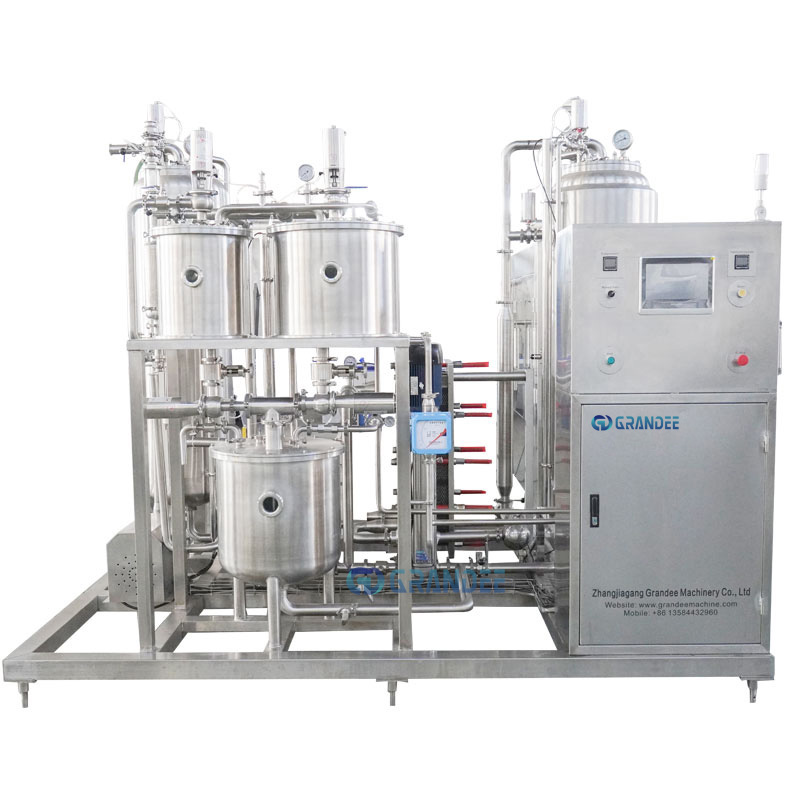

Carbonated drink mixer and water chiller

The sugar and water mixing according to proportional ratio feeding into the material mixer by material pump through flow meter. In the mixer, there is stainless steel corrugated sheet, can make the beverage and C02 good contact mixing. Mixer feeding entrance pass 0.4MPa CO2, Through static mixer, CO2 and liquid in the pipe mixing and achieve to required gas content(＜2.5）And then enter the storage tanks preparation pressure, the CO2 was fully dissolved in the beverage Storage tank should be equipped with pressure, filled CO2

Company Profile

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions

We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line, can filling and sealing line, complete blowing labeling and packaging system
