High speed automatic hydraulic desktop dripper bulb injection molding machine plastic making machine

GRANDEE MACHINE is proud to introduce the High Speed Automatic Hydraulic Desktop Dripper Bulb Injection Molding Machine Plastic Making Machine. This innovative machine is designed for precision and accuracy in the plastic manufacturing industry. It is sophisticated and easy to use at the same time, making it a great choice for both professionals and beginners.

The High Speed Automatic Hydraulic Desktop Dripper Bulb Injection Molding Machine Plastic Making Machine boasts a powerful hydraulic system, which enables it to produce high-quality plastic parts. Its high speed is unbeatable compared to other similar machines in the market. This makes it ideal for mass production of plastic parts, which are used in a wide range of industries like automotive, electronics, and household items.

The machine is fully automatic, which means that it requires minimal human intervention, making the manufacturing process quick and efficient. When compared to traditional manufacturing methods like injection molding, this machine’s automatic features make it an excellent choice for reducing production time and minimizing material waste.

Durability and stability are vital factors in any manufacturing process, and the High Speed Automatic Hydraulic Desktop Dripper Bulb Injection Molding Machine Plastic Making Machine is designed to provide both. It is constructed with high-quality materials that ensure its longevity, and its sturdy frame provides an excellent base for the machine's operation, guaranteeing maximum production output.

The machine is user-friendly, which makes it easy to operate even for those who are new to the plastic manufacturing industry. It comes with clear and easy-to-follow instructions that help users operate it seamlessly. The machine's control panel is designed to simplify the manufacturing process, and its ergonomic design reduces operator fatigue, thus ensuring maximum efficiency throughout the production process.

The High Speed Automatic Hydraulic Desktop Dripper Bulb Injection Molding Machine Plastic Making Machine is a versatile machine that can produce a wide range of plastic parts through different molding processes. The machine accepts various types of raw materials, including ABS, PC, PVC, and PP, among others. This feature makes it an excellent investment for any business looking to venture into the plastic manufacturing industry

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions

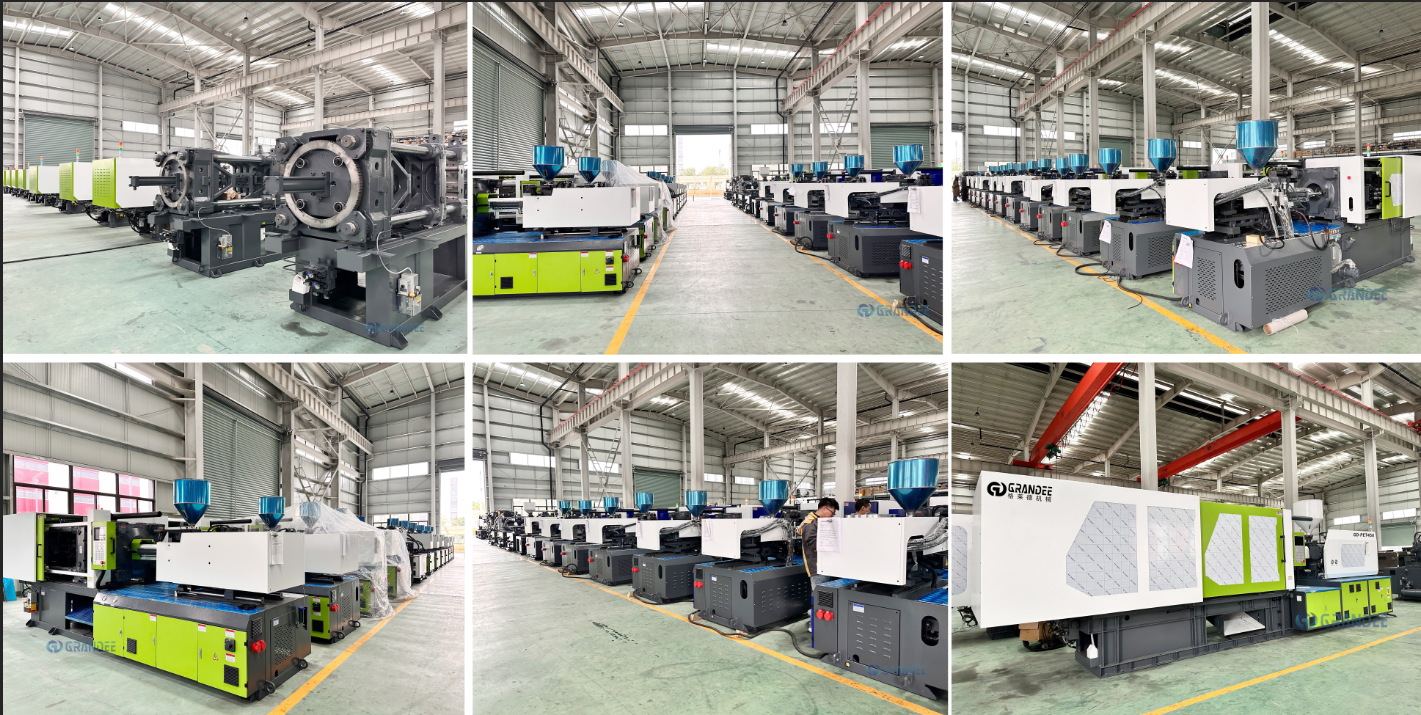

Factory site picture

Products Description

Machine features:

Injection molding machine usually consists of the injection system, clamping system, hydraulic drive system, electrical control system, lubrication system, heating and cooling systems, security monitoring systems and other components. Working principle of injection molding machine is similar with an injection syringe, it is by means of a screw (or plunger) of thrust, make good plasticized molten state (ie, viscous state) good plastic injected into the closed mold cavity to obtain shaped articles after curing. Injection molding is a cyclic process, with each cycle Including:quantifying feeder-molten plastics pressure injection-filling mold cooling-open mold and pick up products. Take out the plastic parts and then go into next cycle operation

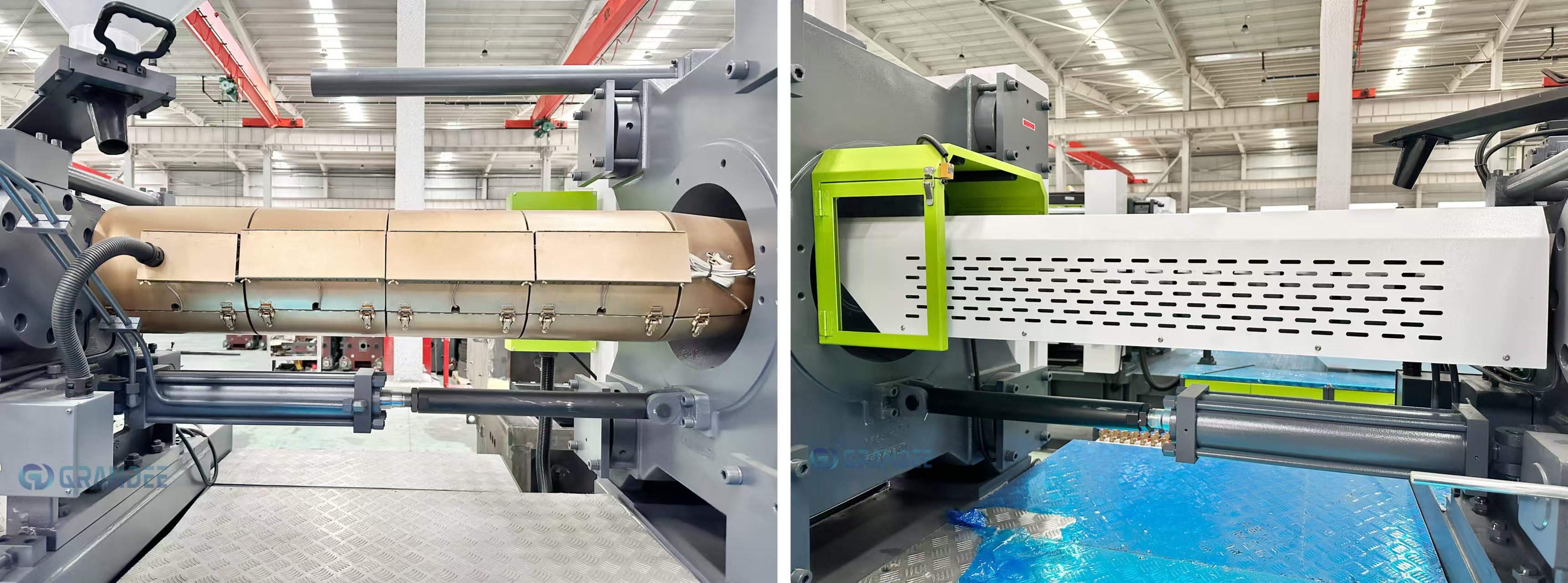

Nanometer infrared heating ring:

Nano infrared heating ring has better insulation effect, small heat loss, faster heating, faster feeding. On this basis, the hydraulic nozzle is added to prevent the material from flowing out

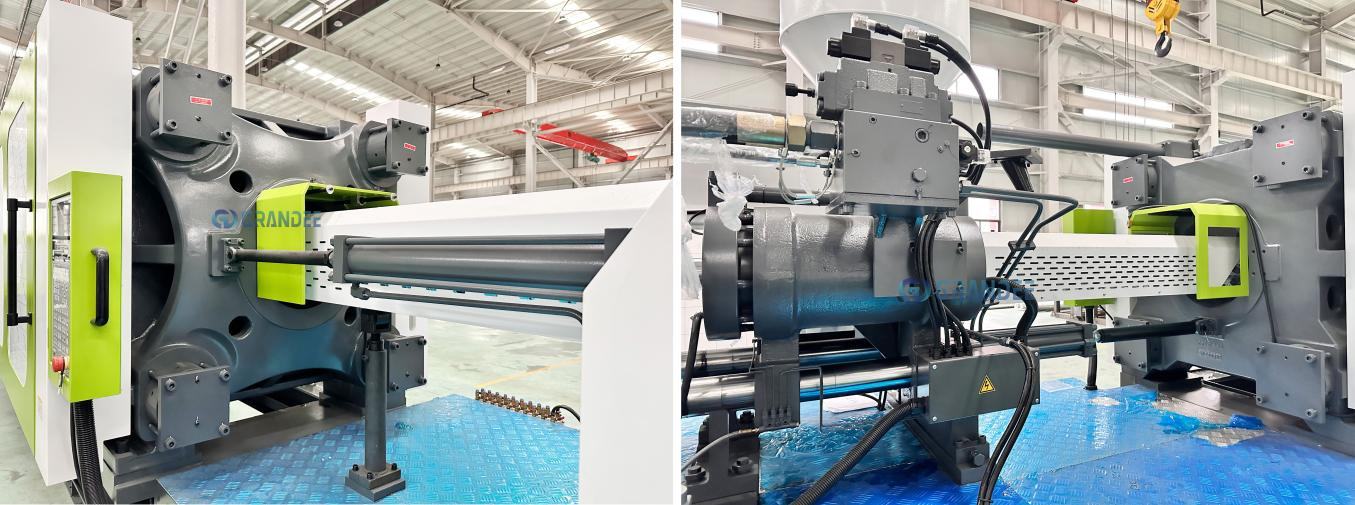

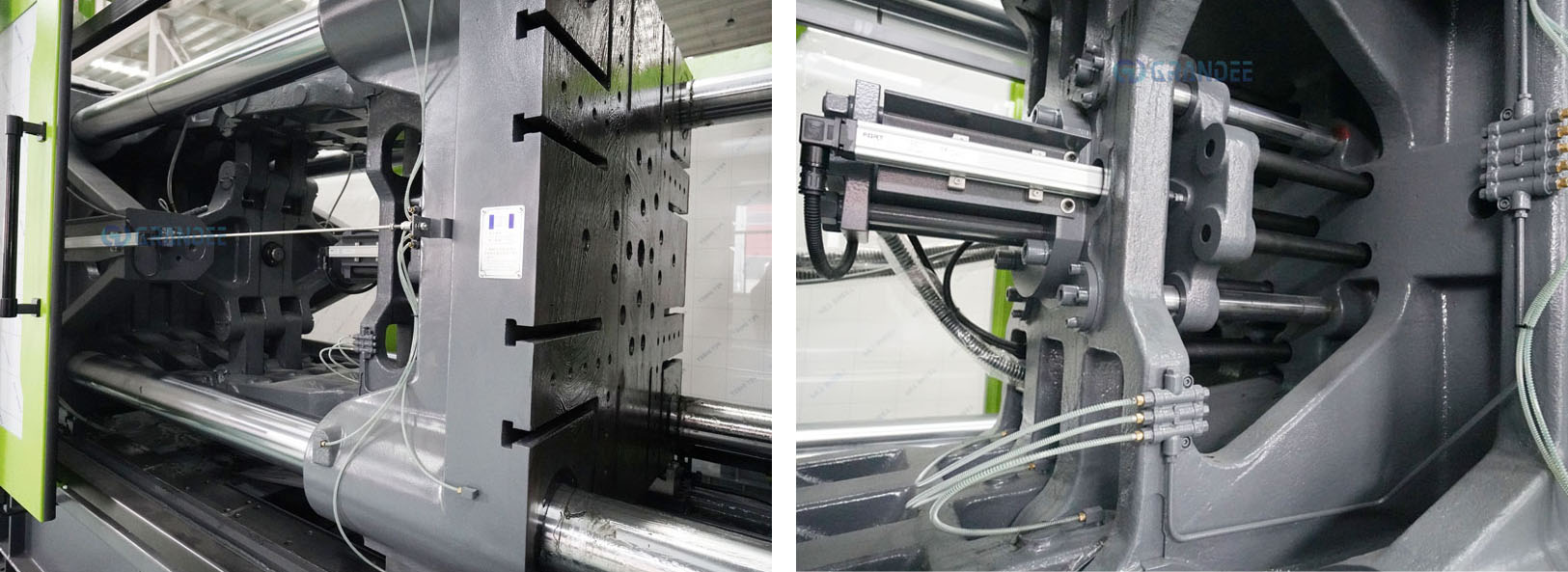

Clamping Unit:

5-point twin toggle clamping system by modular optimization software designing. Strong clamping with rapid and stable, to meet the strict clamping condition. Mould height adjustment by hydraulic driven gear system with rapid and stable. Automatic mould height adjustment as per the setting clamping force optional

Injection Unit：

Balanced double injection cylinder technology makes screw to have evenly distributed force during fast injection, Five star Hydraulic motor with big torque. Ensure the excellent plastic molding condition. Research and develop different screws according to different injection condition, suitable for the progressive demand and greatly improve the injection quality

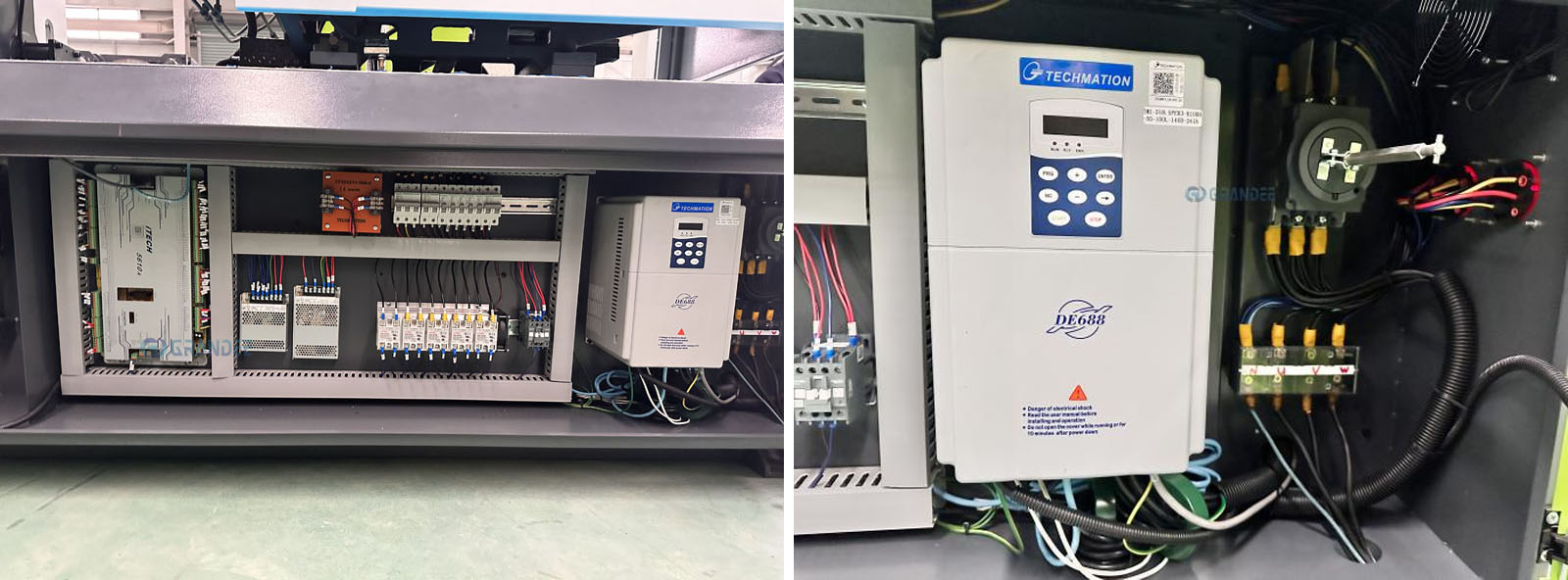

Control Unit

Imported computer special for Injection Molding Machine with multiple functions and precise control processing. World famous electrical components and high quality circuit hardware with stable and reliable running

Data Model	Screw Dia, mm	Shot Volume（PS/cm³）	Shot Weight, PS/g	Clamping Force, KN	Power （KW）
GD-170T	45	334	304	1700	18.5
GD-220T	50	512	466	2200	22
GD-270T	55	721	656	2700	26
GD-300T	60	805	732	2980	34
GD-330T	65	1098	1000	3300	34
GD-380T	70	1374	1250	3800	36
GD-450T	95	1723	1567	4500	56
GD-530T	100	2614	2379	5300	58
GD-650T	90	2818	2536	6500	70
GD-780T	105	3894	3543	7800	72
GD-860T	110	4656	4237	8600	72
GD-1080T	120	5678	5249	10800	94
GD-1250T	130	7745	7045	12500	108
GD-1600T	140	9586	8723	16000	134

No	Name	Brand /Material	Origin
1	Screw/barrel	Ouwei/Fuyi/Tongda, 38CrMoAL	China
2	Three templates and injection head, second plate	QT500	China
3	Servo Motor	Synmot	China
5	Hydraulic Motor	Delson	Italy
6	Stroke Switch	Honeywell/OMRON/Panasonic	USA/Japn
7	Air Switch	SCHNEIDER//LG	France/ Korea
8	AC Contactor	SCHNEIDER	France
9	Thermal relay	SCHNEIDER	France
10	Controller	TECHMATION	Taiwan, China
11	Electronic Ruler	Jiesheng	USA
12	Pump	Oufeite	China
13	Solenoid valve	YUKEN	Japan
14	Oil seal/dust seal	VALQUA/HALLITE	Japan/UK
15	KDAS wearing ring	HALLITE	UK
16	Servo controller	Mengde	China

For more information, please feel free to contact us to send an inquiry
