CSD/carbonated drinks mixer /mixing machine made in china, China CSD/carbonated drinks mixer /mixing machine made in china Manufacturers, Suppliers, Factory

Parameter

Automatic and high quality five tanks soft drink mixer mixing machine equipment

Product Description

Machine description:

QHS series drink mixer is designed and made for improving the proportion of water, syrup and carbonated dioxide. It adopts foreign advanced technology-static mixer to lighten water layer, increase carbonizing time, ensure mixing efficiency. Adopt carbon dioxide back flow deoxygenation, which can save carbon dioxide and deoxidize. High quality water pump and SEIMENS electrical equipment and other parts make up a complete automatic control system. It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages. It is suitable for mixing all kinds of bottle, such as soda water, fruit juice, cola and other soft and hard drinks.

Main features:
1.Automatic with Alarm:The pressure in all tank and the liquid level of the machine are all controlled automatically with PLC.Once a error occurs,the alarm lamp will light and the alarm ring will sound and the mixer will stop automatically.
2.Easy operation and regulation:The operation of the mixer is especially convenient.Only turn around the buttons according to the pre-set program,the normal operation can be carried out.The production capacity,water-sugar proportion and gas content can be adjusted without exchanging and parts.
3.Even mixing and accurate proportion:One time mixing process is adopted,so the mixture is even.The mixing proportion of water and sugar is strictly controlled with measuring needle valve with fine regulation.Its precision can reach about 5%.

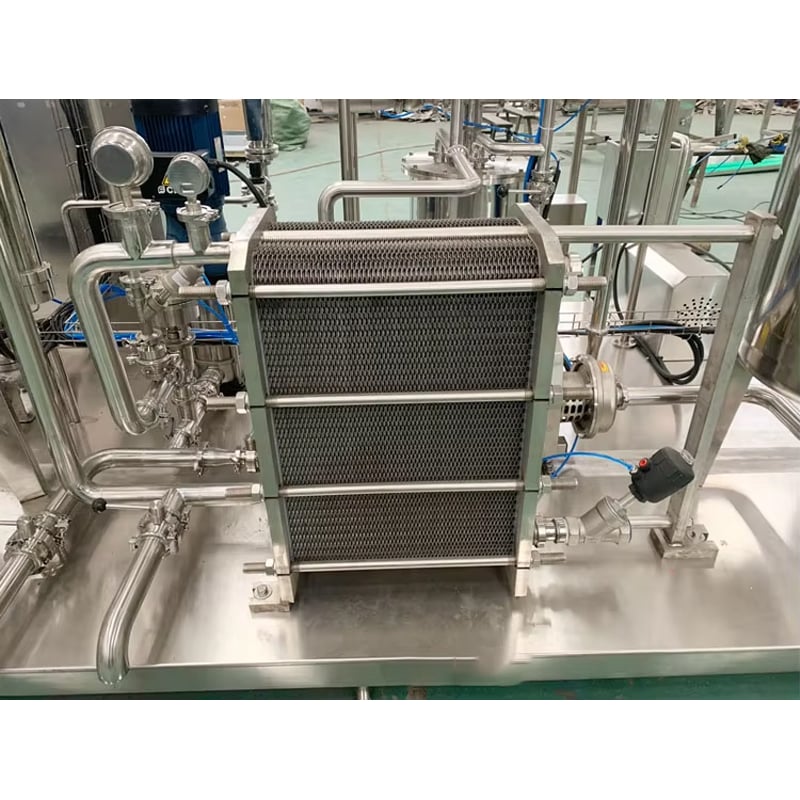

4.Enough gas content:The mixer adopts vacuum desoxidation technology at normal temperature.Its desoxidation ratio reaches above 90%.It has a baffle heat exchanger to cool the sugar-water mixture and carry out twice carbonating,So its carbon content is especially high.

Products Structure and Working Procedure
(1). CO2 tank, syrup tank, liquid level device, static mixing device, tank, electrical controlling system, air providing tank, and necessary producing pipe and cleaning pipe including ball valve, magnetism valve, check valve are composed this machine. (See photo 1: main structure)
(2). Main working Procedure
a. Cooling water→multi-grade pump→oxygenating CO2→volume control
b. Cooling syrup→multi-grade pump→syrup tank→volume control
(a and b → multi-grade pump→static mixing device→
c. CO2 air resource→filter and pressure reducing→ tank→filling machine

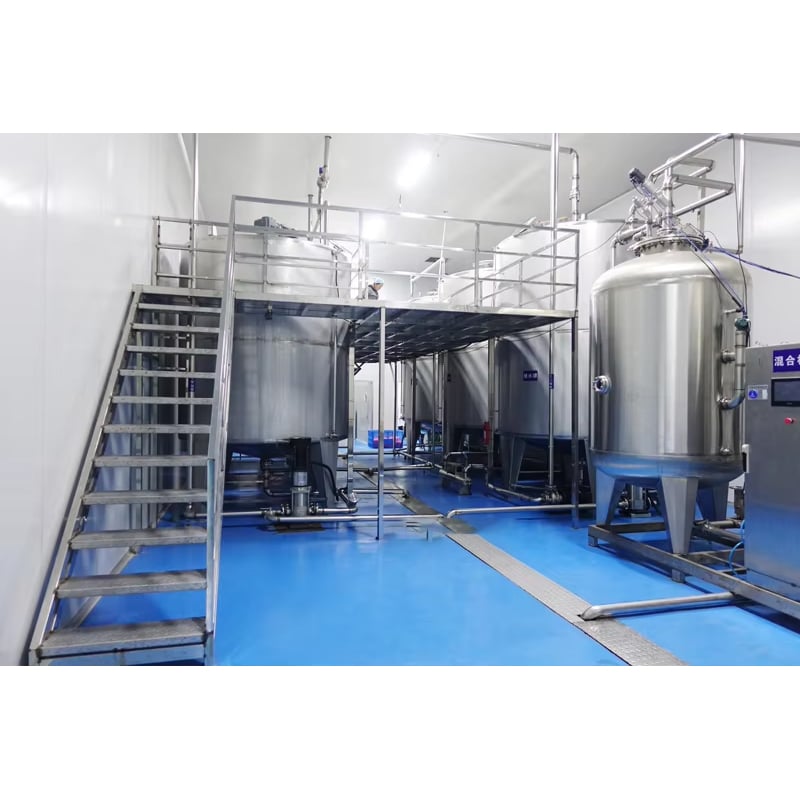

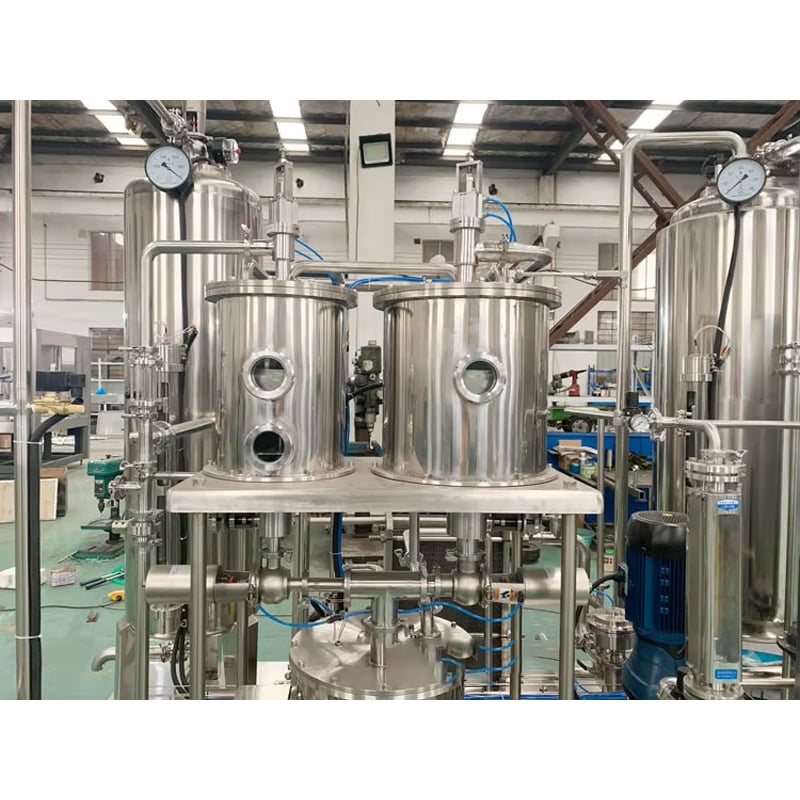

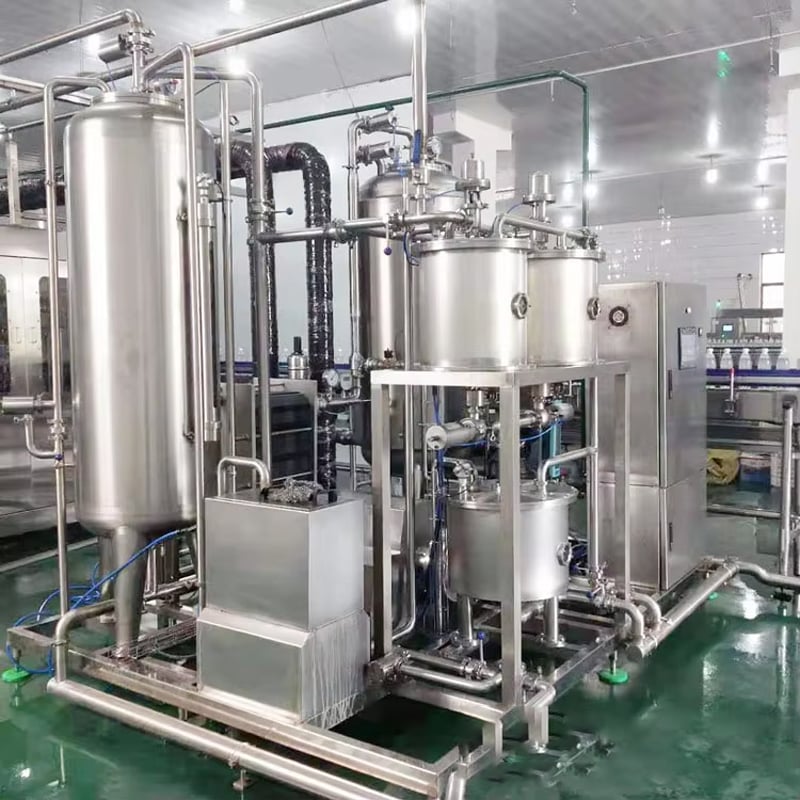

Machine show:

10TH-CM-001 10TH-CM-002 10TH-CM-003 10TH-CM-004

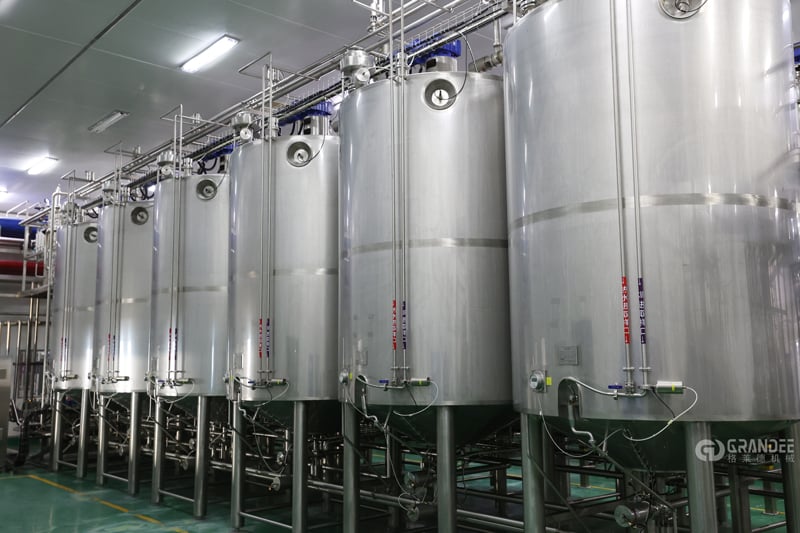

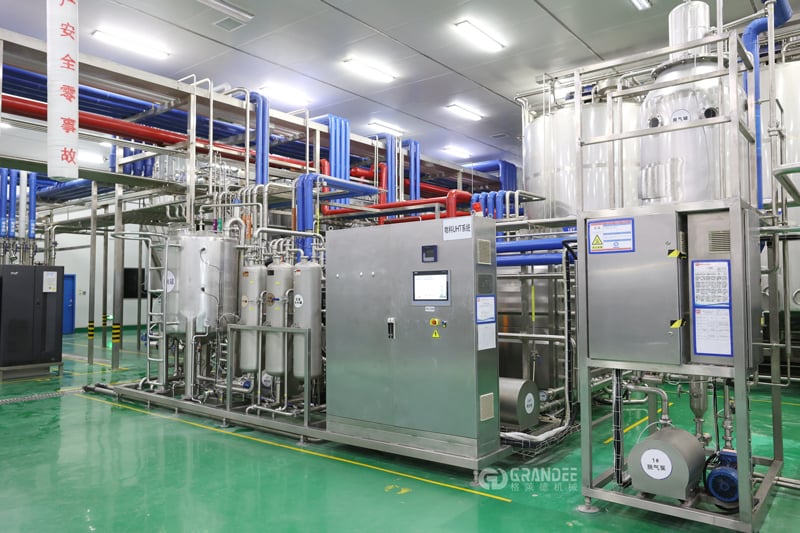

TP-6000-003 TP-6000-002

Main technical parameter:

Model	QHS-1500	QHS-3000	QHS-4000	QHS-5000	QHS-6000
Production capacity	1000-2000	2500-3000	3500-4000	4500-5000	5500-6000
Adjustable proportion of of syrup and water	1:3-1:6
CO2 content	1.5-2.5	>2.5	>2.5	>3.5	>3.5
Cooling water entry temperature(℃)	0-5
Working pressure of carbonized and syrup tank(Mpa)	0.05-0.15
Working pressure of storage tank(Mpa)	0.2-0.5
Power(KW)	1.5	3.7	4.5	5.6	6.2
Dimension(mm)	900700 2000	17201140 2100	18601300 2100	20201500 2200	20201500 2200
Weight(KG)	500	1100	1300	1600	1800

FAQ

Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.alibaba.com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements

Q2: What's capacity of carbonated drink mixer?
A2: We have 1000-2000BPH, 2000-2500BPH, 2500-3000BPH, 3500-4000BPH, 4500-5000BPH.

Q3: What is the CO2 content of carbonated drink mixer ?
A3: We can reach 1.5-2.5, 3.0-3.5, 3.5-3.8 or higher.

Q4: Is there additional equipment for this carbonated drink mixer ?
A4: Air cooled type chiller or water cooled type chiller
