Mineral Pure Water Filling Production Machine

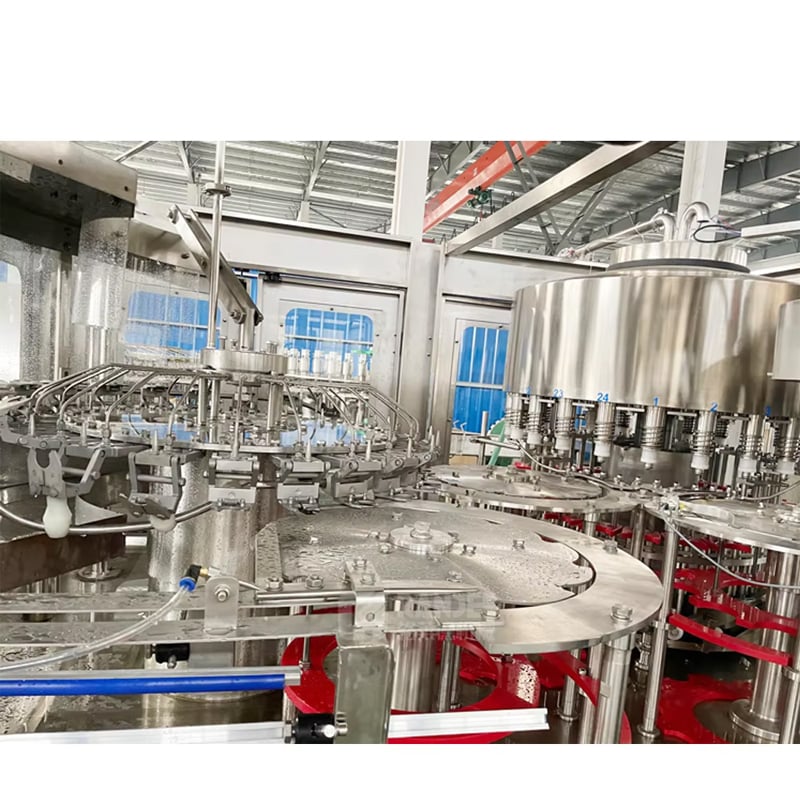

(1) water filling line/liquid filling line includes: Washing-filling-capping 3 in 1 machine, lamp inspection, label shrinking machine, inkjet printer, hot shrink film packer and conveyors. It is a full automatic production line
(2) The water filling line is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic
(3) The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
(4) The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.
(5) The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.
(6) It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.

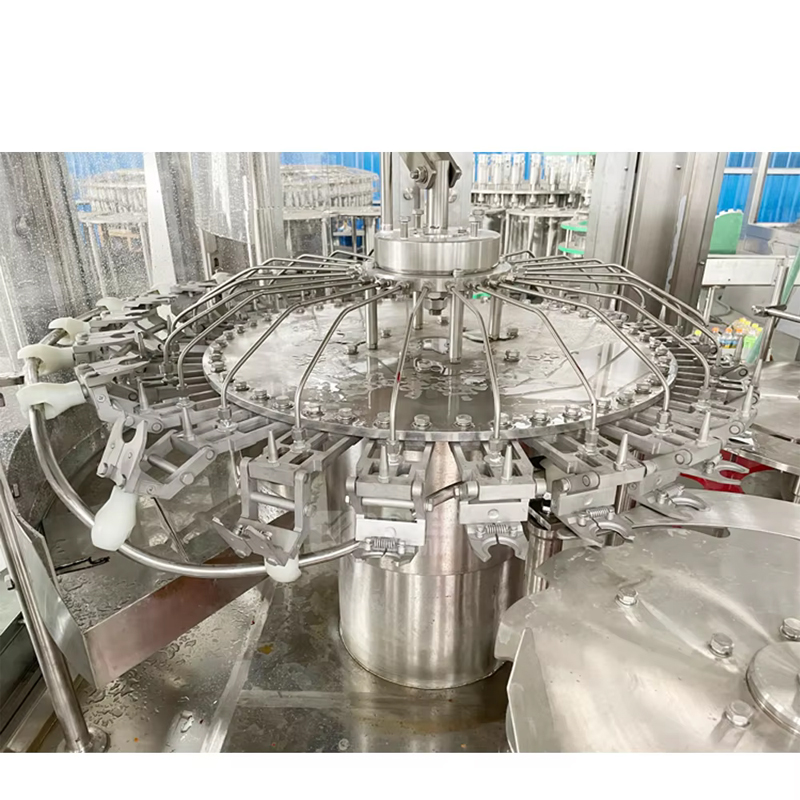

Washing part
The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip. After the gripping, the bottle is turned upside down with 180 degree and cantered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again

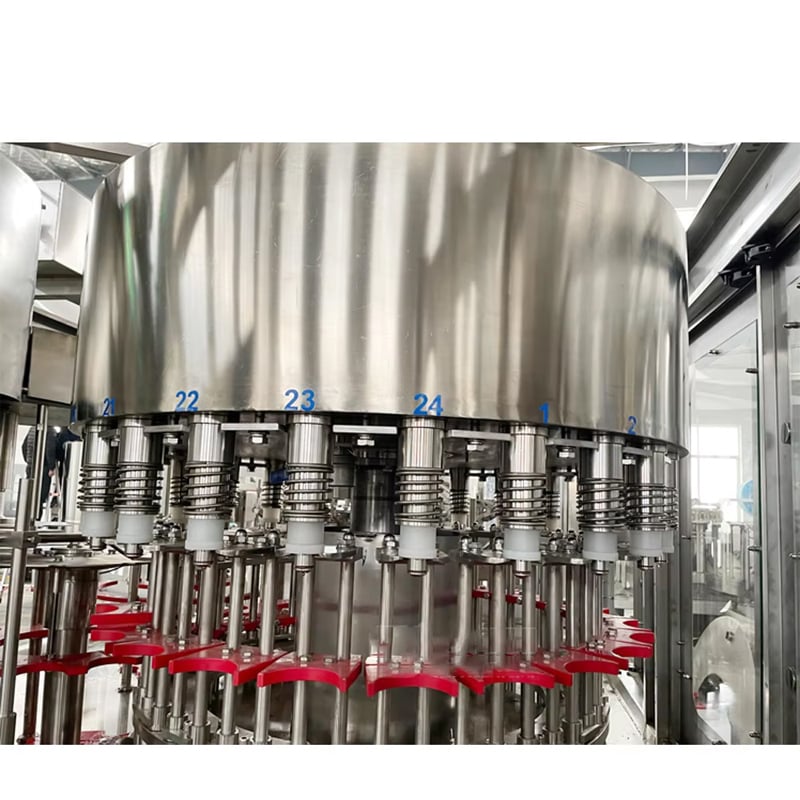

Filling part
Long tube filling type with 2 times filling process to make sure perfect filling level
Liquid tank, filling valves, controlling rings, upgrading cylinder.
High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.

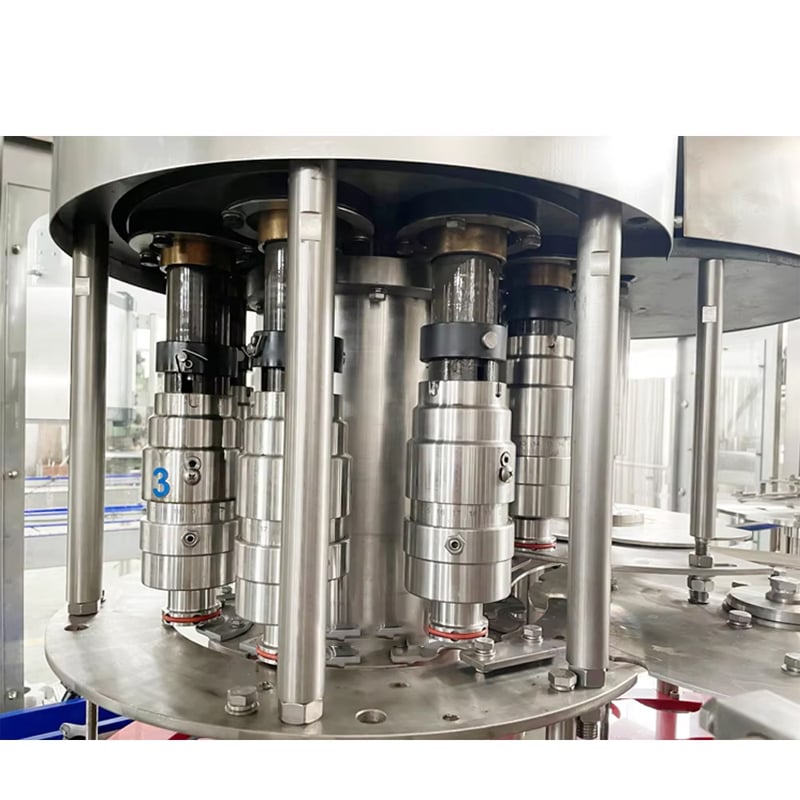

Capping part
Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
Model | | | | | | | |
|
|
|
|
|
|
Capacity(500ml/BPH) | 2000 | 3000 | 4000 | 8000 | 12000 | 14000 | 16000 |
|
|
|
|
|
|
Suitable bottle shape and size | Both round of square bottle, 220ml-2000ml, Dia: 50-108mm, Height: 150-340mm |
|
|
|
|
|
|
Compressed air pressure | |
|
|
|
|
|
|
Bottle washing medium | |
|
|
|
|
|
|
Washing pressure | |
|
|
|
|
|
|
Main motor | 1.5 | 2.2 | 2.2 | 2.2 | 4.5 | 5.5 | 7.5 |
|
|
|
|
|
|
Dimension(mm) | 2000*1600*2300 | 2200*1800*2300 | 2400*1900*2300 | 2500*2000*2300 | 2700*2100*2300 | 2970*2260*2700 | 3780*2800*2700 |
|
|
|
|
|
|
Weight(KG) | 2000 | 2500 | 3000 | 3500 | 4500 | 6500 | 8500 |
|
|
|
|
|
|
NAME | BRAND | AREA |
PLC | Siemens | Germany |
INVERTER | Siemens | Germany |
CONTACTOR | Siemens | Germany |
TOUCH SCREEN | Siemens | Germany |
INVERTER | Siemens | Germany |
MOTOR | ABB | SWISS |
PNEUMATIC PARTS | FESTO | GERMANY |
ELECTRICAL PARTS | SCHNEIDER | FRANCE |
GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10, 000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions
We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line, can filling and sealing line, complete blowing labeling and packaging system
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www. grandee machine. en. alibaba. com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years. We just not only sell drinking water machines and other related equipment, Quality is our culture. We have rich experienced engineers with technicians working team, providing good and after-sales service term, professional salesman terms
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems
Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee, and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing
GRANDEE MACHINE

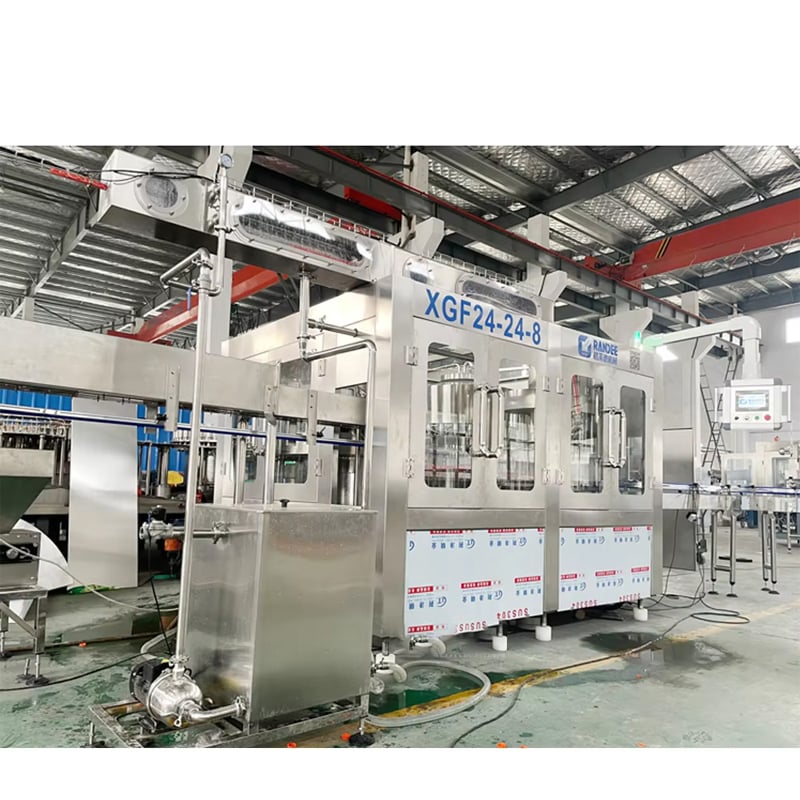

Introducing the Automatic XGF24-24-8 mineral water bottle filling machine, brought to you by the trusted name in simple water bottling filling machines. This top-of-the-line machine is designed to help you instantly fill and seal your mineral water bottles with unmatched accuracy, speed, and efficiency.
Ideal for small to medium-sized water bottling businesses that require fast and reliable filling solutions. Along with its advanced technology, it could fill as much as 24 containers simultaneously, giving you the ability to produce as much as 8, 000 bottles each hour - a production is truly impressive.
State-of-the-art mechanisms and materials to ensure quality and durability. It's made from high-grade GRANDEE MACHINE steel is stainless which ensures that you can clean, rust-resistant, and durable. The machine's electrical components are sourced from some of the most names trusted the industry, so you are able to make sure that it is safe and reliable.
One of the plain things that sets this machine apart from the rivals is its accuracy. with its advanced filling system, it ensures that each bottle is filled to the same level, eliminating waste and ensuring quality is consistent. Plus, it's simple to run - even though you're not familiar with using machines filling.
Perhaps the component is most beneficial is its price. Despite being packed with technology and features; it is coming in at an unbelievably range is affordable making it perfect for small to medium-sized organizations that do not want to break the lender.
If you're looking for a reliable and efficient solution for filling your mineral water bottles, the Automatic XGF24-24-8 mineral water bottle filling machine is the perfect choice for you. with its state-of-the-art technology, robust construction, and affordable price, it truly is a top-tier product guaranteed to help your business grow. Order now and experience the difference for yourself.
