Automatic Soda Soft Drink Plant Filling Machine Carbonated Drink Filling Line

The Automatic Soda Soft Drink Plant Filling Machine Carbonated Drink Filling Line by GRANDEE MACHINE may be just what you shall need if you're buying a dependable and technique this really is really automate this is really efficient implies whole of soft drink or soda pops. This stuffing device finished up being designed to actually end in the nearly all of soda pops, ensuring waste this might be really minimal stuffing this might be actually accurate. Having a metal this really is actually stainless, the goods is tough sufficient to maneuver the desires definitely not a environment this will be really commercial while furthermore being a job scrub easy continue keeping. This stuffing device was created to optimize effectiveness while reducing work expenses having home loan this is actually filling the way genuine that will be definitely better to 100 containers for each and every minute. Its completely procedure it is really automatic the requirement for handbook intervention and enables filling and constant this may be actually accurate of container. The Automatic Soda Soft Drink Plant Filling Machine Carbonated Drink Filling Line by GRANDEE MACHINE is versatile sufficient to possess outcomes alongside many container this can be really dramatically different and sizes. Its filling actually volume this is actually adjustable the quantity this is actually appropriate of is dispensed into each container, in spite of the known proven fact that container height could be just modified to check sizes that are various. This stuffing device is not hard to exert work, insurance coverage companies somebody system allows being really user-friendly and alterations being easy fast. Its size compact makes very easy to create and combine into current manufacturing lines, ensuring an modification this is actually procedures being actually seamless are automatic could be filling. The Automatic Soda Soft Drink Plant Filling Machine Carbonated Drink Filling Line by GRANDEE MACHINE is actually a investment great is good almost any company wanting to enhance their effectiveness and minimize handbook work expenses featuring its top-quality elements, durable construction, and procedure this is actually efficient. This technique finished up being developed to endure, proclaiming to supply you reassurance which you shall have money enough worth. This stuffing device is actually a dependable and solution this might be really efficiency's certain to supply you outcomes that will effortlessly be outstanding you will be a small business continuing beginning out or simply you've got considered to a far more impressive procedure planning to streamline your manufacturing procedures. Consequently merely why wait? Contact GRANDEE MACHINE and commence automating your drink soft or actually procedures which can be soft today

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10, 000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions

Products Description

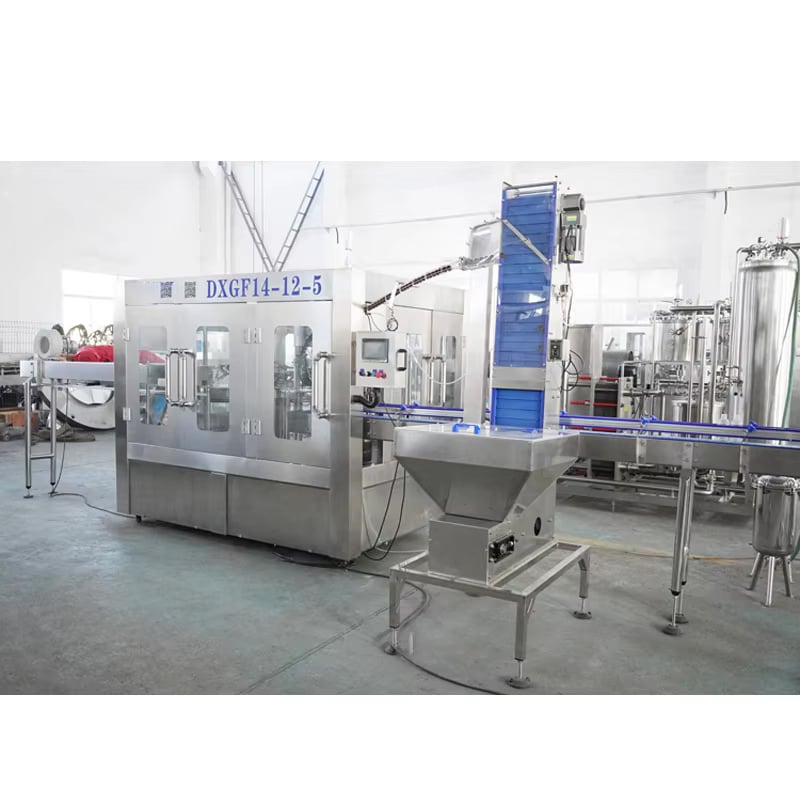

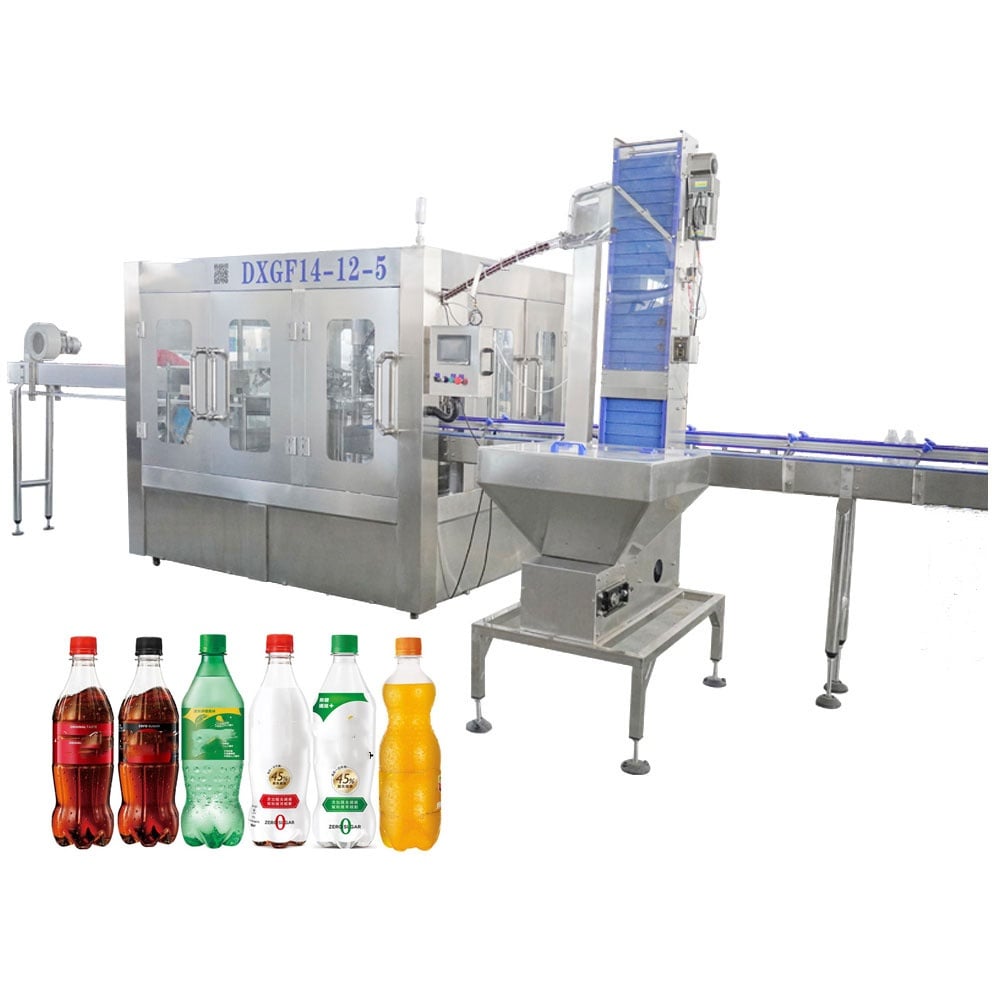

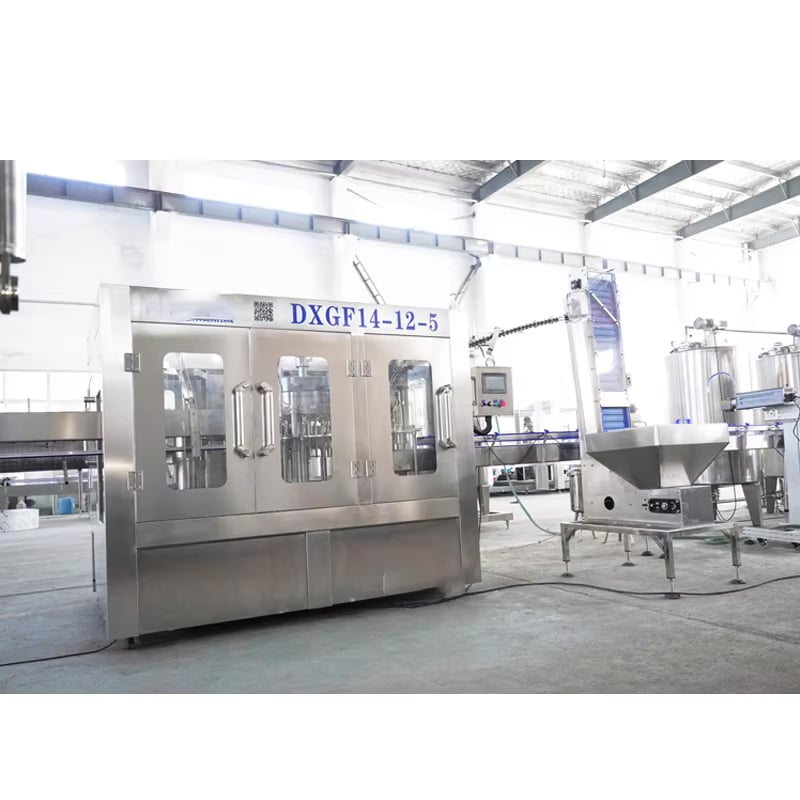

Carbonated Filling Machine  DXGF14-12-5 Carbonated drink filling equipment adopts bottle neck holding transmission technology to realize fully automatic bottle rinsing, pulp filling, carbonated filling and cap screwing. It employs single cavity plunger type of fixing filling volume technique. It is equipped with CO2 accuracy pressure control, so that the liquid level is always stable. The application of alarm devices for bottle jam, bottle shortage, bottle damage, cap shortage, over loading etc. in several places ensure the quality of its production. The machine obtains advantages of high reliability, high efficiency, high grade of automation and easy operation etc

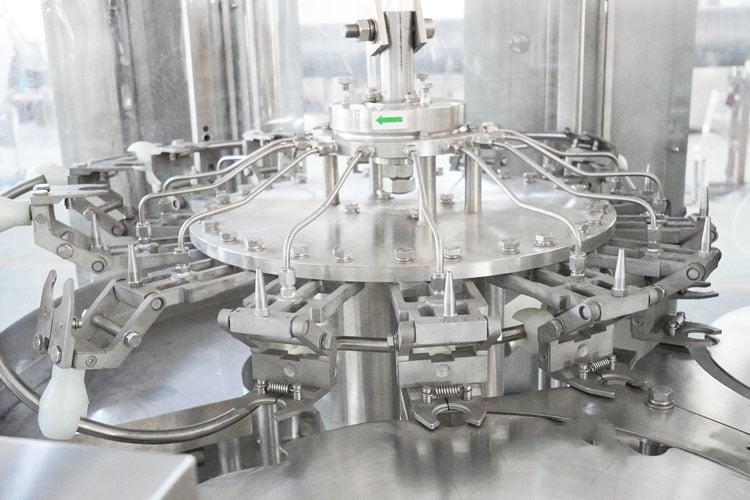

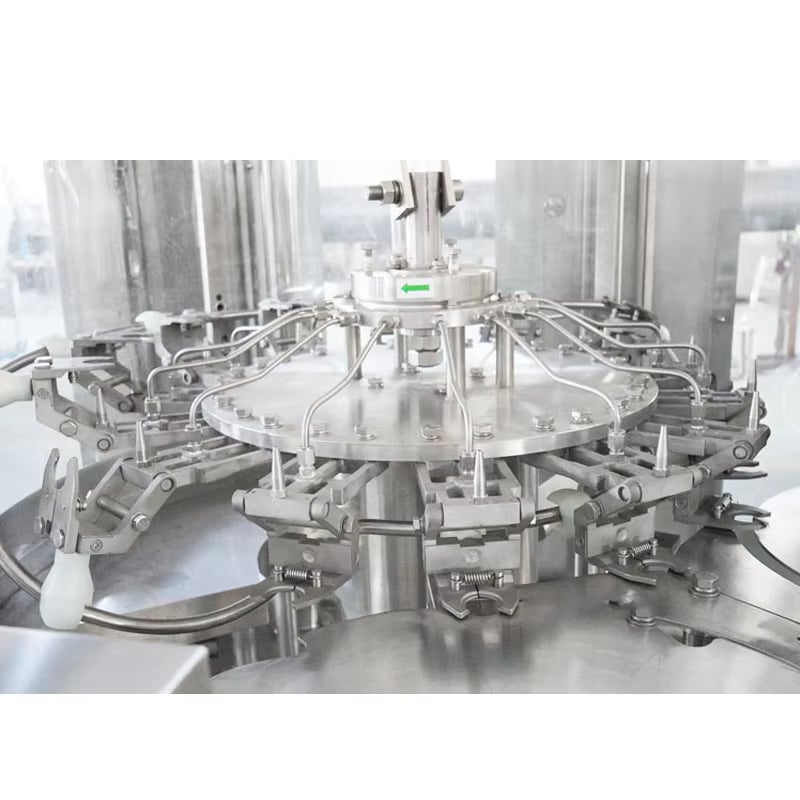

Washing part Into bottle way is air conveyor direct connection with bottle dial. All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean. 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing. 304/316 stainless steel washing pump make the machine more durable

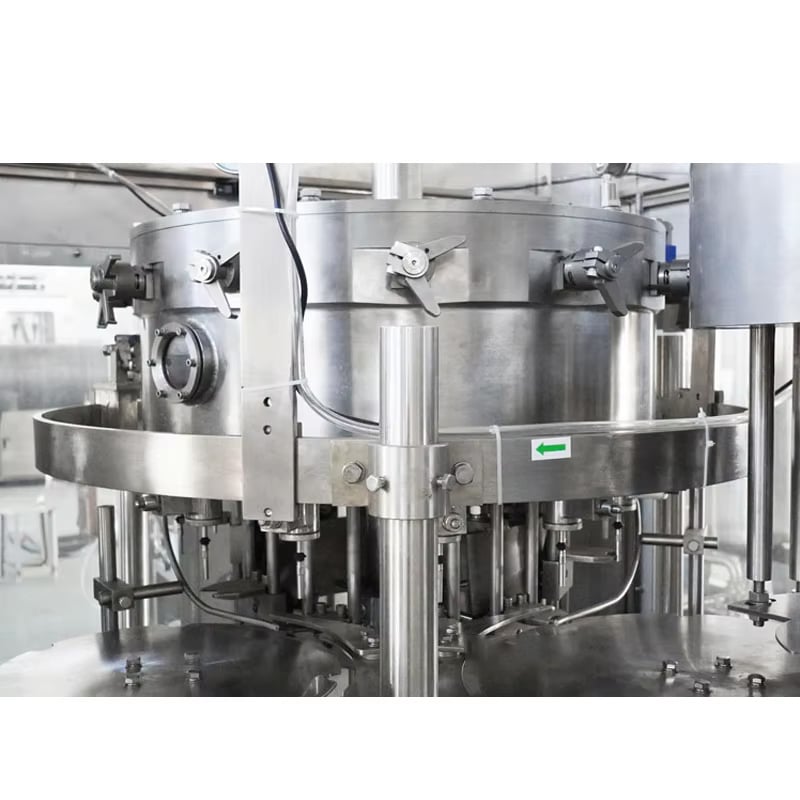

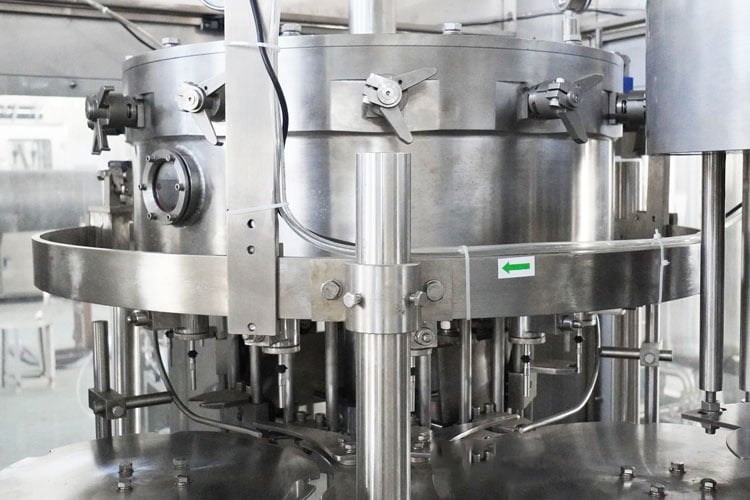

Filling part 304/316 Stainless steel high precision filling nozzle Filling volume adjustable in fine rank, same liquid level after filling All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean 304/316 stainless steel filling pump Efficient spray nozzle rinse thoroughly and save water for flushing

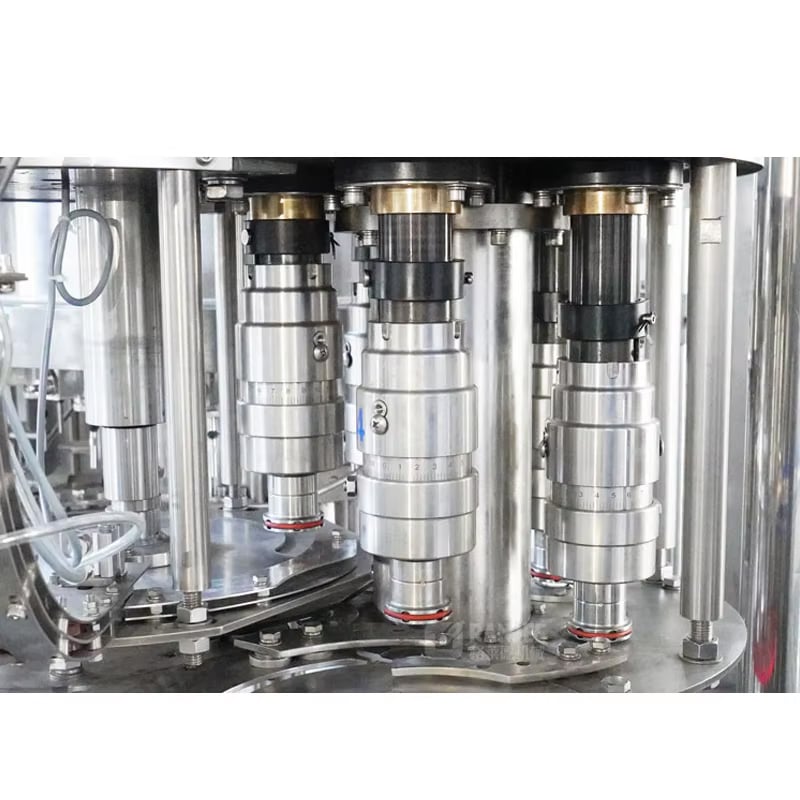

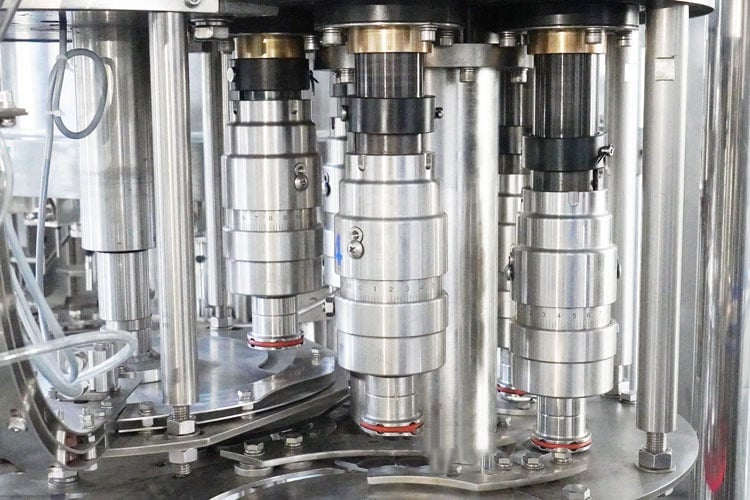

Capping part

Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping All 304/316 stainless steel construction No bottle no capping
Automatic stop when lack of bottle
Capping effect is stable and reliable, Defective rate ≤0.2%

Main technical parameter

Model	DXGF 14-12-5	DXGF 18-18-6	DXGF 24-24-8	DXGF 32-32-8	DXGF 40-40-12	DXGF 50-50-12
Capacity (500ml)	2000-3000	3000-5000	5000-7000	8000-9000	10000-12000	12000-14000
Suitable bottle shapes	PET circular
Bottle diameter	50-115mm
Bottle height	160-320mm
Filling type	Isobaric filling
Filling pressure	＜0.4MPa
Rinsing water pressure	＞0.06MPa ＜0.2MPa
Application	Carbonated soft drink bottling line
Total power	4.4kw	5.2kw	6.2kw	7.5kw	8.2kw	11kw
Overall dimensions	2.5*1.9m	2.8*1.9m	3.2*2.2m	3.4*2.5m	4.8*2.3m	5.5*3.3m
Height	2.3m	2.5m	2.5m	2.5m	2.5m	2.5m
Weight	3000kg	4500kg	6000kg	8500kg	10000kg	11000kg

NAME	BRAND	AREA
PLC	Siemens	Germany
INVERTER	Siemens	Germany
CONTACTOR	Siemens	Germany
TOUCH SCREEN	Siemens	Germany
INVERTER	Siemens	Germany
MOTOR	ABB	SWISS
PNEUMATIC PARTS	FESTO	GERMANY
ELECTRICAL PARTS	SCHNEIDER	FRANCE

Turnkey Solution

Juice filling machine

Carbonated drink filling machine

Mixed fruit juice mixing system

Automatic soft drink production line

Mineral water filling machine

Water bottle filling machine

One stage or Second stage R. O. Water treatment system Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine

Automatic OPP BOPP hot melt Glue labeling machine Automatic BOPP labeling machine is widely suitable for different material of containers and labels. The cost of each label is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is one of the most economical models to make mass production and integrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, like changing the label is only needed to change the PLC program, the products concept that the equipment is used for users and considered for users is embodied in everywhere

Automatic PVC PE Sleeve Shrink Labeling Machine This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc

Operating Principle Of Packaging Machine The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping

Company Profile

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10, 000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions. We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line, can filling and sealing line, complete blowing labeling and packaging system

FAQ

Q1: How to find suitable machine or complete beverage production line? A1: Looking for beverage filling machine in www. grandee machine. en. alibaba. com •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory? A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years. We just not only sell drinking water machines and other related equipment, Quality is our culture. We have rich experienced engineers with technicians working team, providing good and after-sales service term, professional salesman terms. Q3: Do you have technical support after we purchased your machines? A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare parts? A4: We provide our high quality machine 2 years guarantee, and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
