Automatic RO water treatment systems reverse osmosis water treatment machine plants

  • Parameter
  • Related products
  • Inquiry
Parameter
Automatic RO water treatment systems reverse osmosis water treatment machine plants details

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions
Products Description

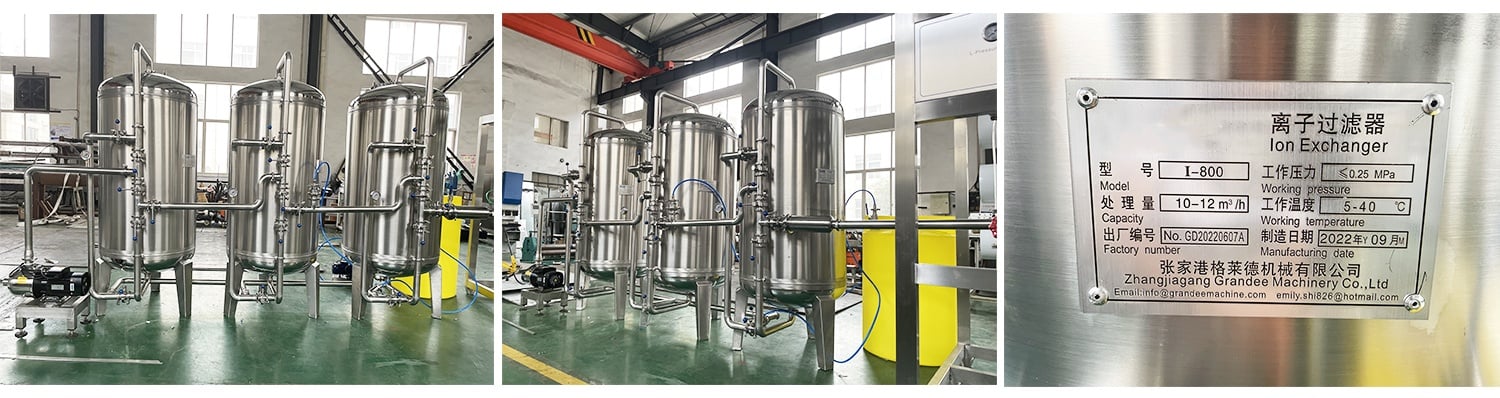

bca8de3206752fb9fe31ecb09ab65fe11d60c9d8d825b488c126c5d99af588e0.jpgbca8de3206752fb9fe31ecb09ab65fe11d60c9d8d825b488c126c5d99af588e0.jpg
Water Treatment Equipment

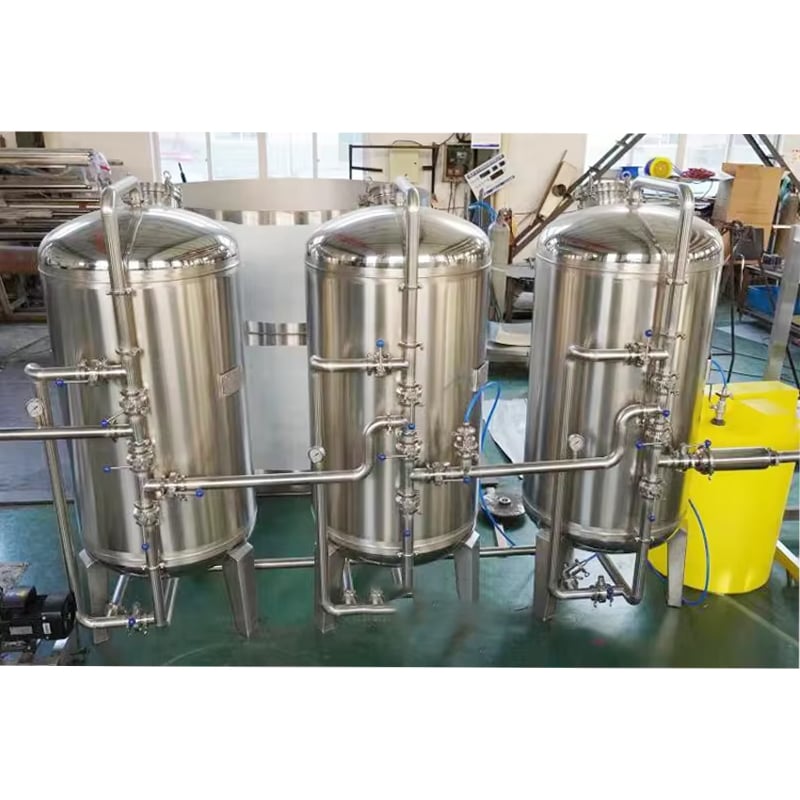

1. Quartz sand filterThe quartz sand filter can remove most of the suspended solids, colloids and granular mechanical impurities, this sand filter is a kind of "physical - chemical" process, the water through granular materials when isolated filter water impurities and colloidal suspensions, so that the water is purified, the operation mode of the mechanical filter is manual control. So this multi-medium filter is an effective and indispensable process in the pure water purification and pretreatment.

2. Active carbon filter Since most raw water is tap water, ground water or spring water, the content of residual chlorine in the water is high, and the low pressure composite reverse osmosis membrane has strict restrictions on residual chlorine, whose value must be less than or equal to 0.1mg/ L. Therefore, active carbon filter is set in the pretreatment to remove the residual chlorine in the raw water, Because the content of calcium and magnesium ions in raw water may be high, the Longoria index is positive. The desalting rate of reverse osmosis is as high as 97%, so the concentrated water side will produce calcium carbonate, magnesium carbonate, magnesium sulfate and other precipitates due to high concentration. So carbon filter can be effectively ensure the long-term, stable, safe and reliable operation of reverse osmosis device.  3. Ion exchange filterCationic resin used for water softening, primarily to remove hardness of water. The hardness of water is a major calcium (Ca2 +), magnesium (Mg2 +) ion composition, when containing the raw water hardness ions through the resin layer, the water of the Ca2 +, Mg2+ was exchanged resin adsorption, and other objects at the same time the quality of the release of sodium Na + ions flow from the softener in the water is removed from the softened water hardness ions.

Main technical parameter
Model
RO-2000L
RO-4000L
RO-6000L
RO-
8000L
RO-10000L
RO-
12000L
RO-
15000L
Output of RO (L/Hr)
2000
4000
6000
8000
10000
12000
15000
Recovery rate
65-70%
Precision filter
Filtering accuracy:  5UM+1UM  PP membrane
Filler materil
Sand, Coconut shell activated carbon, Cationic resin
Membrane brand
DOW or Hydranautics
High pressure pump (KW)
3.5
4.0
5.5
7.5
9.5
11
15
ozone (g/hr)
10
20
30
40
50
60
75
Pure water tank (T)
2
4
6
8
10
12
15
Automatic RO water treatment systems reverse osmosis water treatment machine plants factory
Automatic RO water treatment systems reverse osmosis water treatment machine plants supplier
Automatic RO water treatment systems reverse osmosis water treatment machine plants manufacture
Automatic RO water treatment systems reverse osmosis water treatment machine plants factory
Automatic RO water treatment systems reverse osmosis water treatment machine plants details
NAME
BRAND
AREA
PLC
Siemens
Germany
INVERTER
Siemens
Germany
CONTACTOR
Siemens
Germany
TOUCH SCREEN
Siemens
Germany
INVERTER
Siemens
Germany
MOTOR
ABB
SWISS
PNEUMATIC PARTS
FESTO
GERMANY
ELECTRICAL PARTS
SCHNEIDER
FRANCE


Turnkey Solution
Automatic RO water treatment systems reverse osmosis water treatment machine plants supplier
Automatic RO water treatment systems reverse osmosis water treatment machine plants supplier
Company Profile
Automatic RO water treatment systems reverse osmosis water treatment machine plants manufacture

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services, and other integrated EPC solutions

We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line, can filling and sealing line, complete blowing labeling and packaging system

FAQ
Q1: How to find suitable machine or complete beverage production line
A1: Looking for beverage filling machine in www.grandeemachine.en.alibaba.com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for

Q2: Are you a trading company or a manufactory
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years. We just not only sell drinking water machines and other related equipment, Quality is our culture. We have rich experienced engineers with technicians working team, providing good and after-sales service term, professional salesman terms

Q3: Do you have technical support after we purchased your machines
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machine which you purchased. Or help you to fix machine when it has problems

Q4: If you buy our machines, can you offer us wear-out spare parts

A4: We provide our high quality machine 2 years guarantee, and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing


If you're tired of drinking or using tap water that doesn't taste great or leaves a residue on your skin, it's time to invest in the Automatic RO water treatment system. At GRANDEE MACHINE, we offer top-of-the-line reverse osmosis water treatment machines that effectively remove impurities, chemicals, and contaminants, resulting in the cleanest and safest water possible.



It was created for residential, commercial, and industrial use. We now have solutions that fit your needs and spending plan whether you intend to install something at home, office, or factory. Our devices are available in different capacities and designs, from tiny countertop models to large-scale plants and can treat thousands of gallons each day.



It uses advanced technology that mimics nature's filtration process. Water is passed through a semi-permeable membrane that traps impurities, but allows pure water molecules to pass through. This process removes up to 99% of dissolved solids, bacteria, viruses, and other harmful substances. The result is a pure, clear, and odorless water that tastes great and is safe for drinking, cooking, as well as other applications.



It is easy to operate and maintain. Once installed, what you have to do is turn on the machine, and it shall automatically begin the filtration process. The system also has built-in monitoring control mechanisms that ensure optimized performance and prevent wastage of water and energy. You don't have to bother about changing the filters often, as our systems are designed to last for long and require minimal maintenance.



We're dedicated to providing high-quality, eco-friendly, and cost-effective water solutions to our customers. We utilize only the very best materials and components in our machines, and our team of expert guarantees that each product is tested, certified, and authorized before it's sent for your requirements. We provide exceptional customer service and technical support to help you with any issues or concerns you could have regarding the system.



If you want to ensure that the water you drink, bathe in, or use for any purpose is safe, clean, and free of impurities, you need an Automatic RO water treatment system from GRANDEE MACHINE. Our products are reliable, efficient, and affordable, and they come with a warranty and guarantee of customer satisfaction. Don't compromise on the quality of your water – choose GRANDEE MACHINE and enjoy peace of mind and a healthier life.
