Automatic PE film heating shrink packing machine heat seal wrap tunnel packaging wrapping machine

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10, 000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions

Products Description

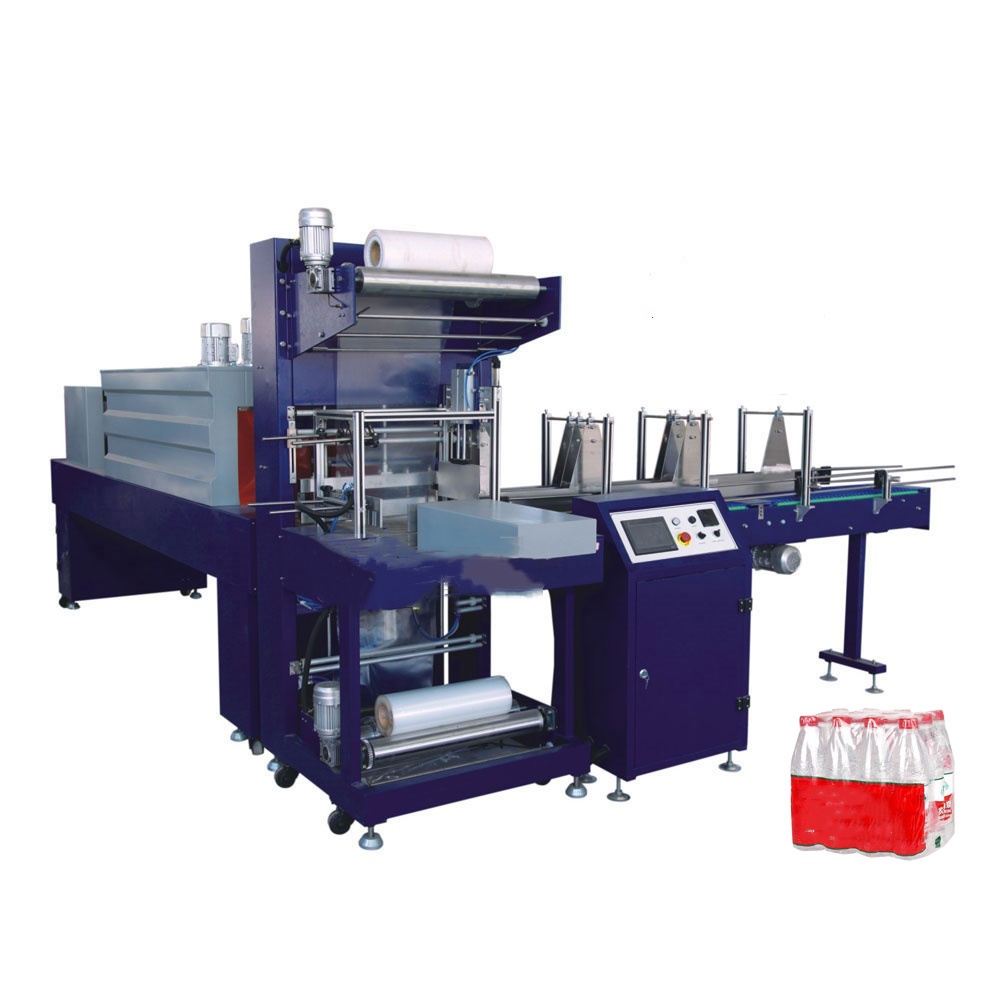

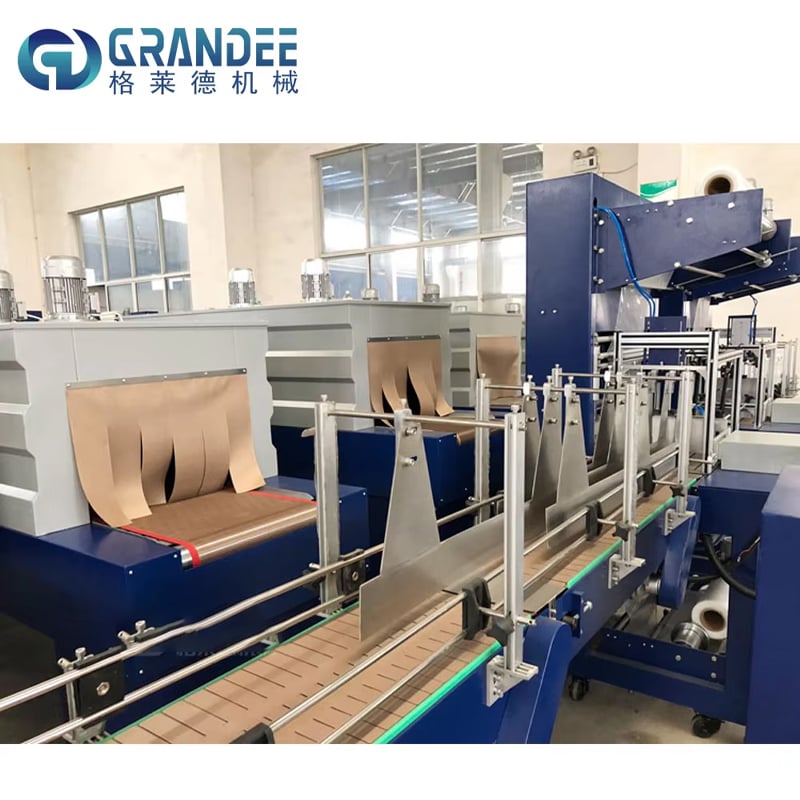

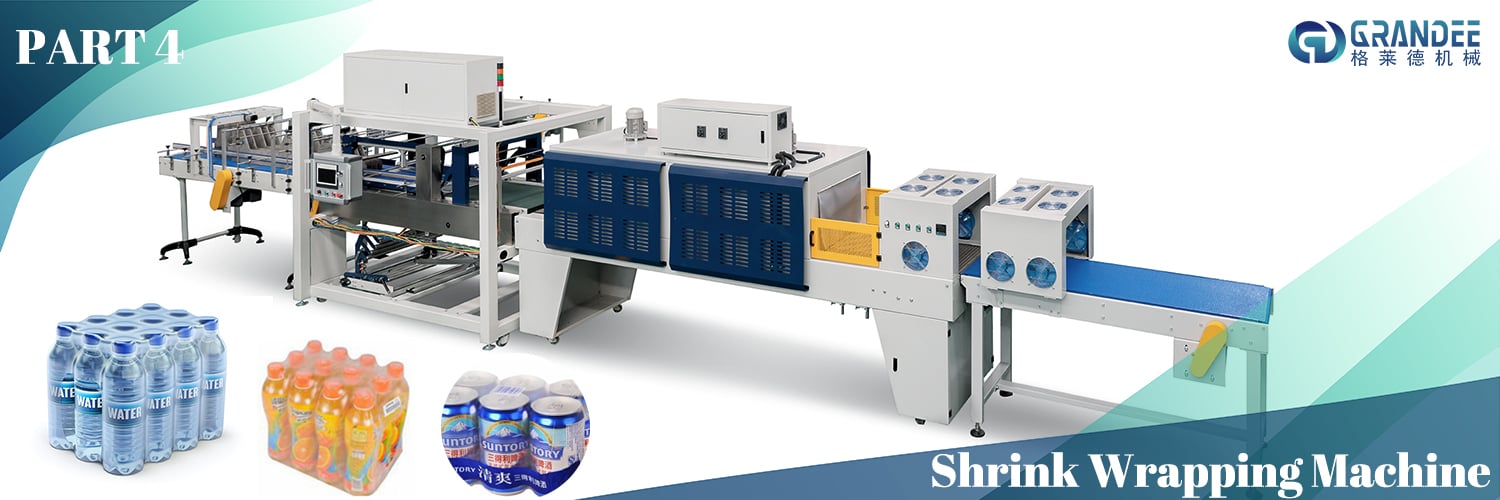

Automatic PE film shrink wrapping machine

Packing Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ cooling
1. Feeding: The bottles enter into conveyor trough of sealing machine, on the conveyor trough there are adjustable guardrail. The feeding will stop when the bottle arrived to the set position.
2. Pushing bottles: After the bottles arrived to the pushing platform, the pushing cylinder will work at the same time to push the bottles over the sealing-cutting line.
3. Cover film and sealing: After bottles pushed over the sealing-cutting line, the upper pressing device will press the bottles, this process will protect the bottles falling. After pushing cylinder return, the film sealing cylinder and film cutting cylinder will work together to finish the film covering and sealing process.

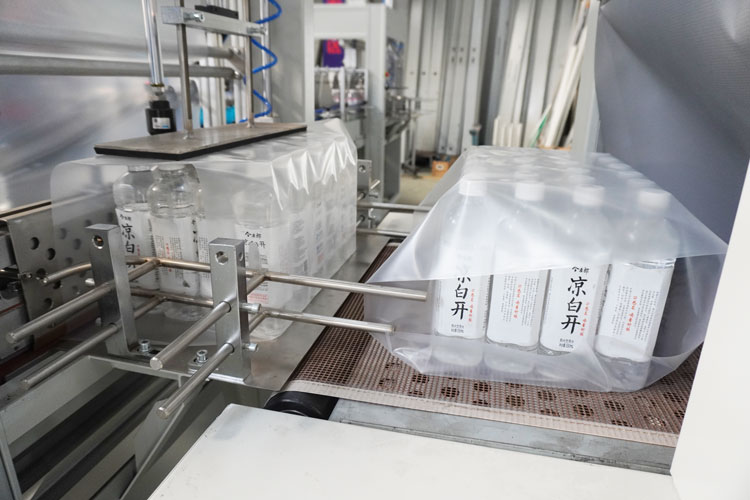

4. Shrink: After finishing the film covering the bottles will enter to the shrinking stove.
5. Cooling: After shrinking, the bottles will enter into the cooling device which installed on the end part, then enter into the stock shelf and waiting for stacking.

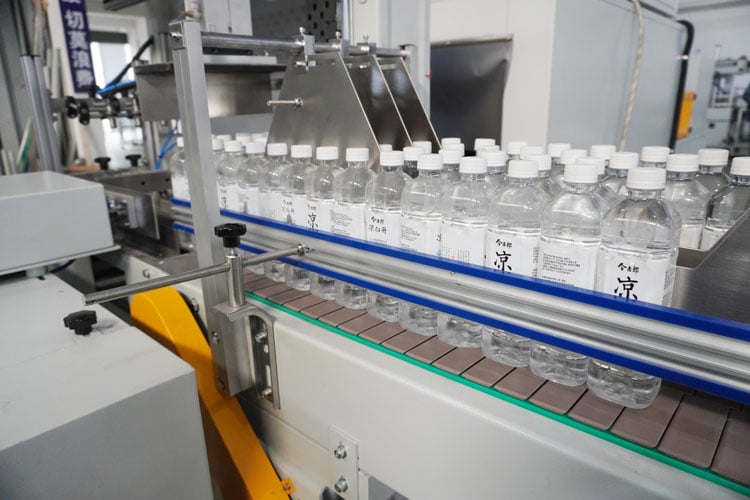

Automatic bottle feeder

Products feeding by automatic transportation system, and bottle height and diameter can be adjusted.

Automatic sensor detector

1. Lane separation device: lane separation 2. Bottle-Separating Device: Rules classification of packaging

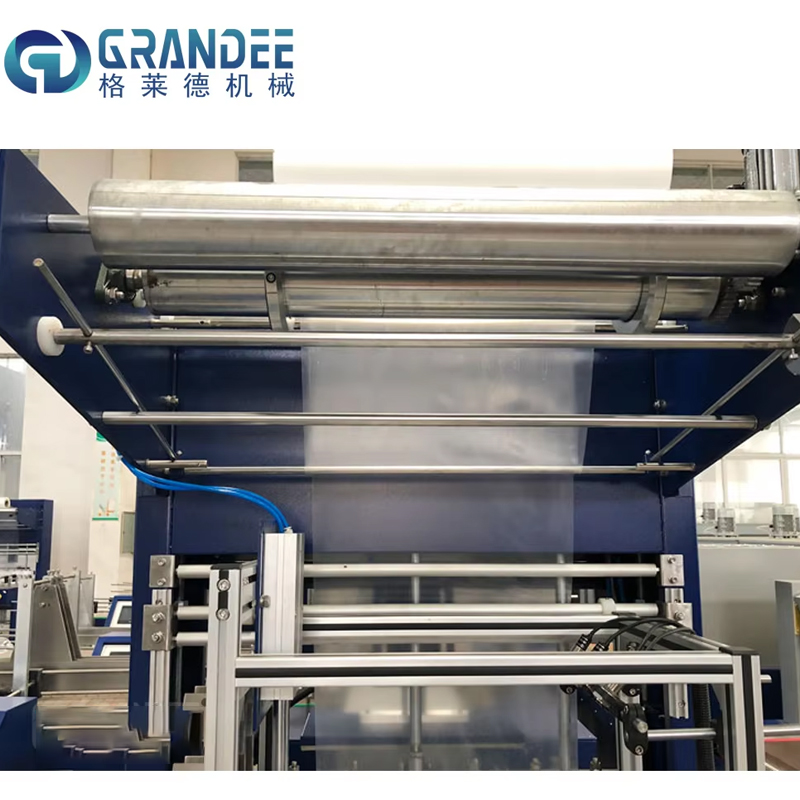

Automatic wrapping system

Package specification:

350/500/550/600ML
4×6 or 4×5

1L/1.5L
3×4 or 3×5
2L/2.5L/3L/5L

2×2 or 2×3

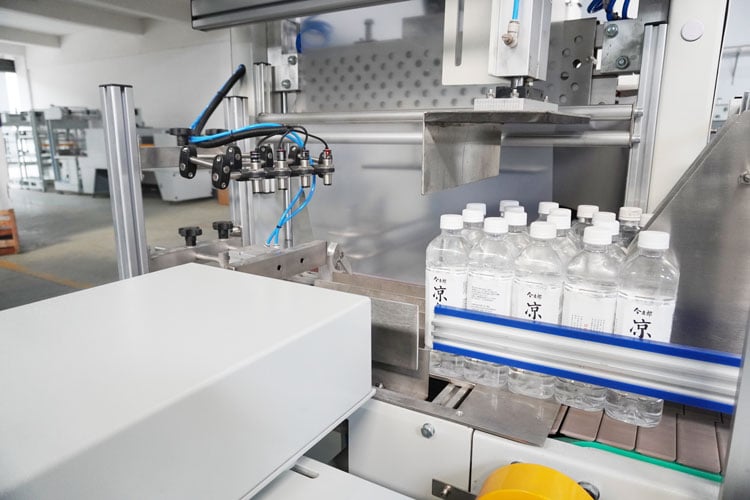

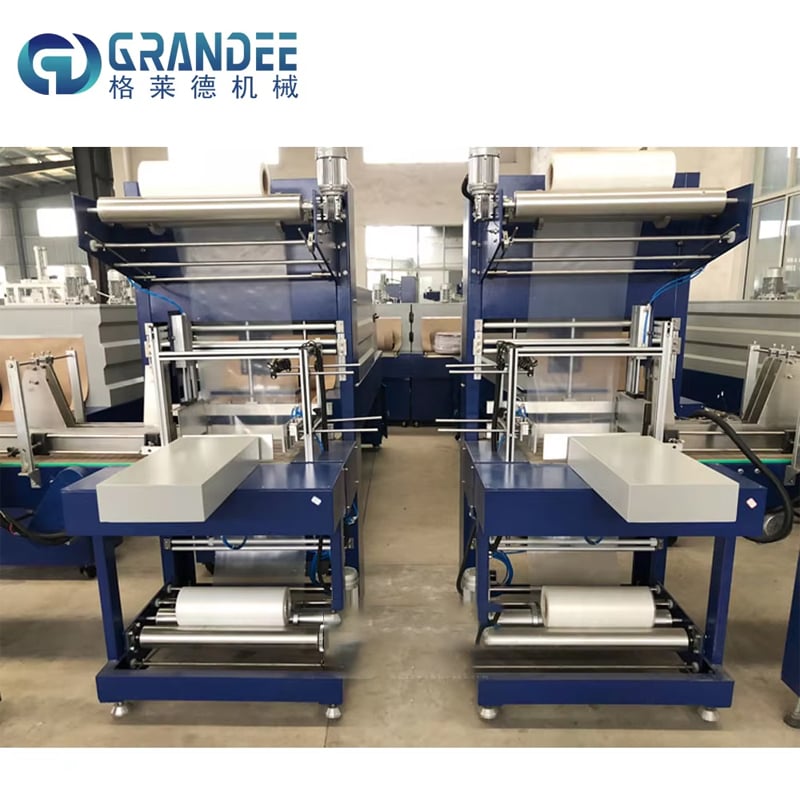

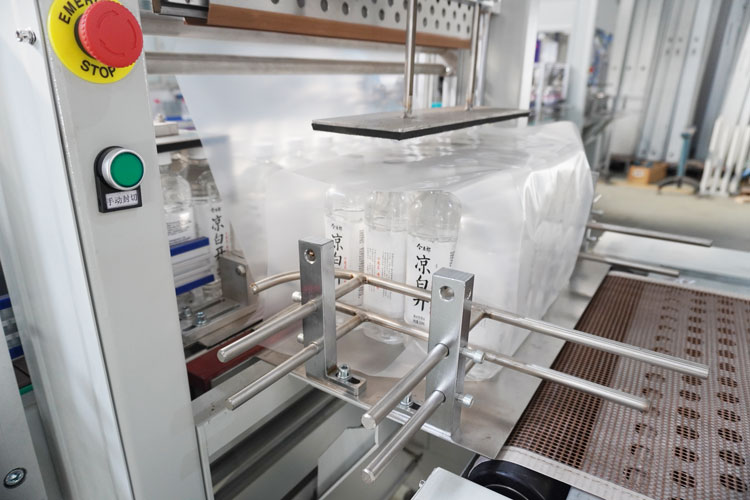

Automatic cutting and sealing part

Inveter controller conveyor system
More wide conveyor system
Long lift sealing life with special cutting knife more stable bottle fix system

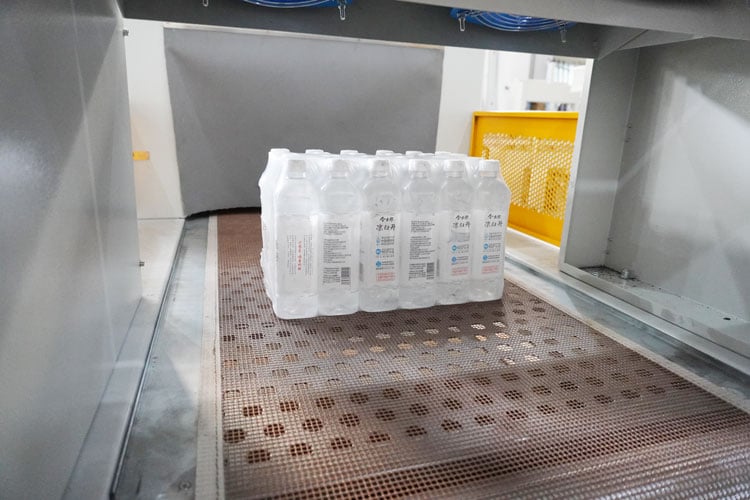

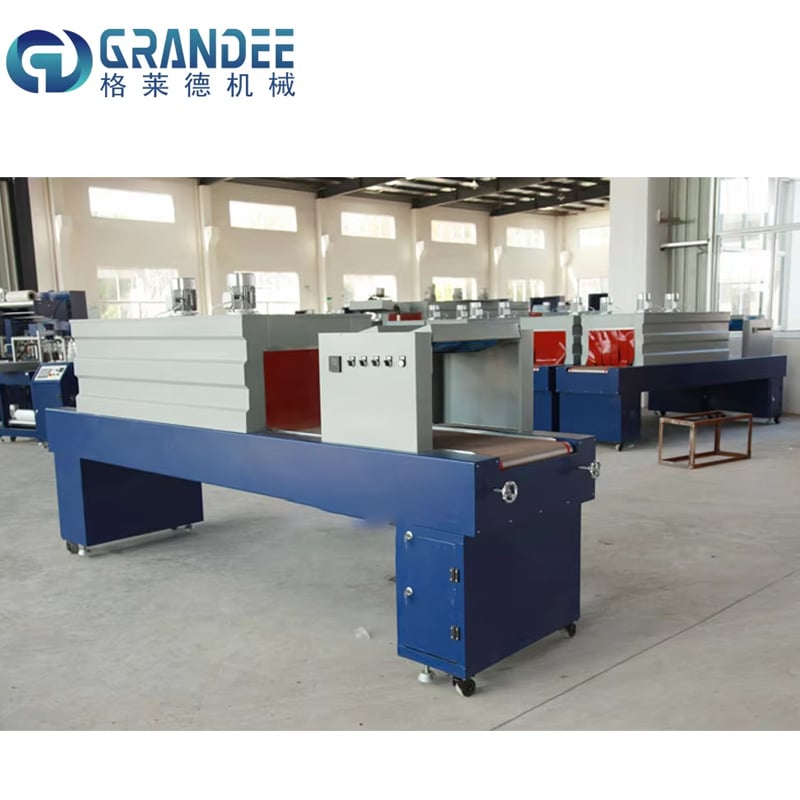

Shrink tunnel part

1. Belt Conveying: Conveying the film wrapped package to the oven. 2. Hot Air Circulation Device: Complete heat shrinkage function. 3. High Temperature Resistant Conveying Mechanism: Stable conveying of finished products under high temperature and heat shrinkage function.

Main technical parameter

Name	Automatic PE film heat shrink packing machine
Maxi. packing size	420*300*350mm(LXWXH)
Maxi. sealing size	650mm
Level of the conveyor	950±30mm
Maxi. shrinkable temperature	160-260℃
Package speed	8-12packs/min
Working pressure	0.6-0.8MPa
Power	26kw/16kw
Weight	1500kgs
External Dimension	L5050*W3300*H2100mm

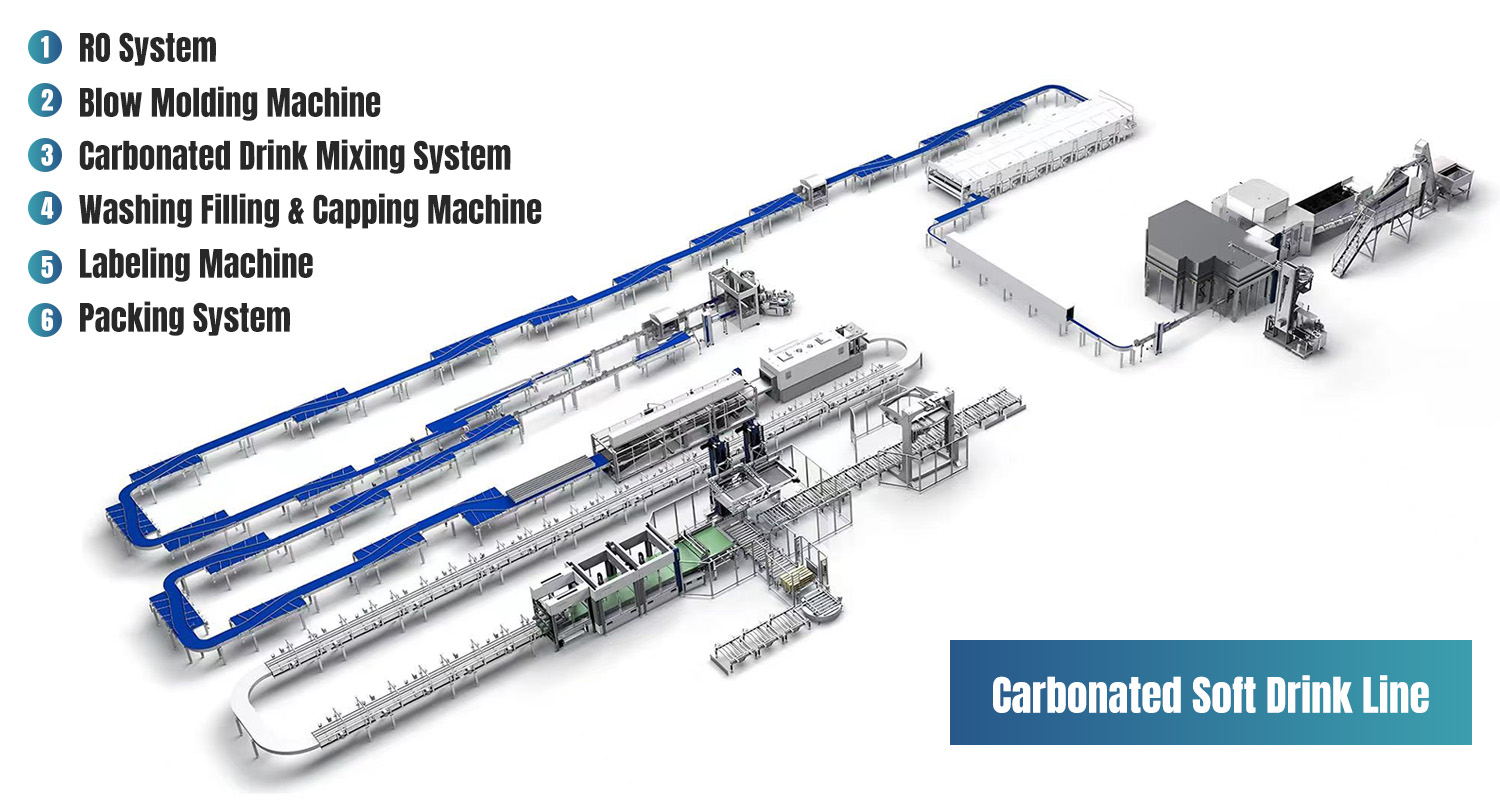

Turnkey Solution

Juice filling machine

Carbonated drink filling machine

Small bottle water filling machine

Fruit juice filling machine

Mineral water filling machine

Bottle filling packaging machine

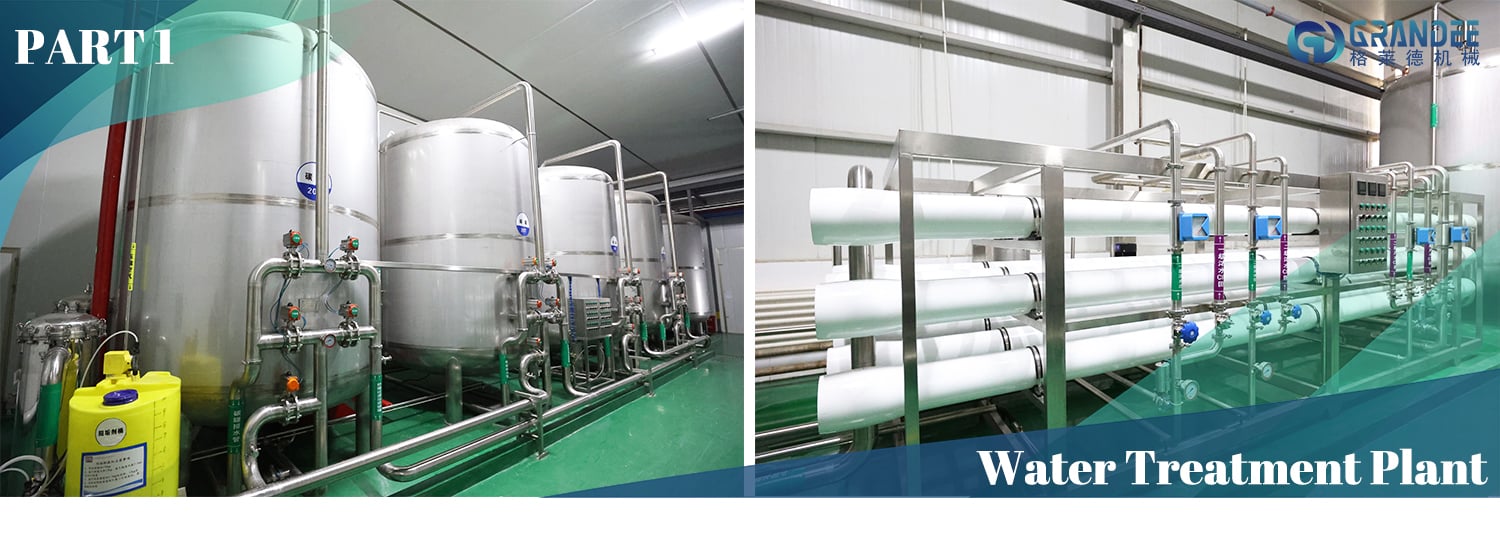

One stage or Second stage R. O. Water treatment system

Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine

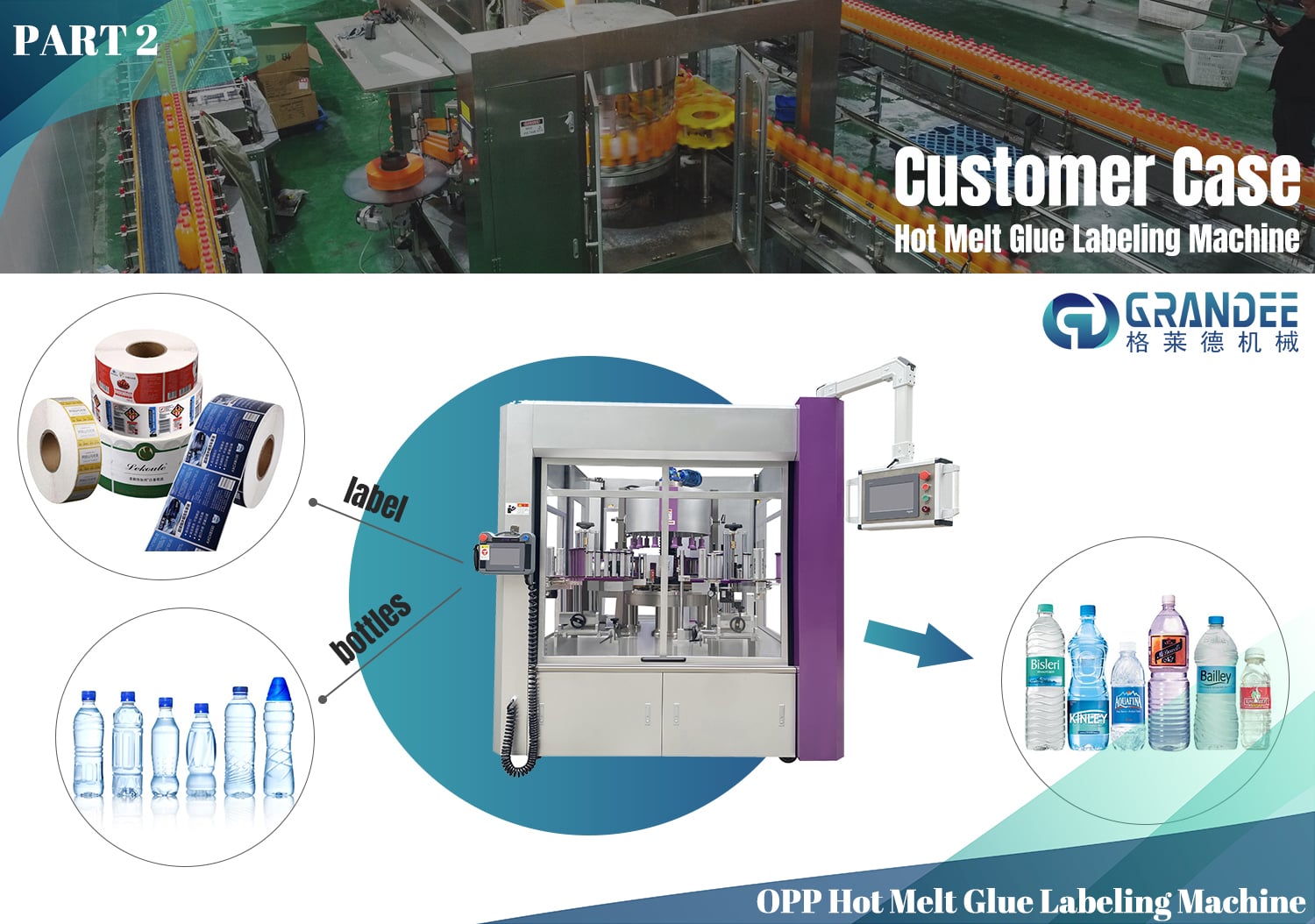

Automatic OPP BOPP hot melt Glue labeling machine

Automatic BOPP labeling machine is widely suitable for different material of containers and labels. The cost of each label is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is one of the most economical models to make mass production and integrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, like changing the label is only needed to change the PLC program, the products concept that the equipment is used for users and considered for users is embodied in everywhere.

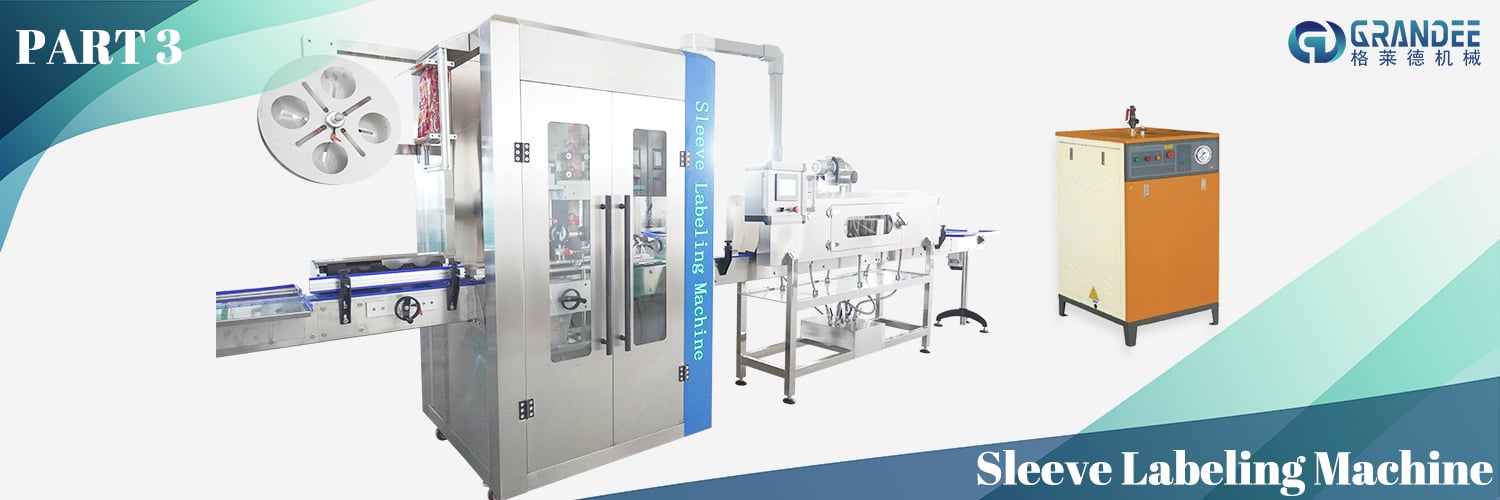

Automatic PVC PE Sleeve Shrink Labeling Machine

This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc.

Operating Principle Of Packaging Machine

The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping.

Company Profile

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10, 000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions

We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line, can filling and sealing line, complete blowing labeling and packaging system

FAQ

Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www. grandee machine. en. alibaba. com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for

Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years. We just not only sell drinking water machines and other related equipment, Quality is our culture. We have rich experienced engineers with technicians working team, providing good and after-sales service term, professional salesman terms

Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems

Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee, and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing

The GRANDEE MACHINE Automatic PE Film Heating Shrink Packing Machine is an ingenious and effective packaging service for a wide variety of items. This top quality machine is ideal for heat shrink packaging and is developed to create packing products fast and easy, whilst guaranteeing a limited surface and specialist.
Especially developed to manage various kinds of packaging dimensions and products. Individuals can change the setups with this gadget to suit the packaging requirements of the solutions and items, that makes it extremely flexible. The gadget can load a variety is broad of like meals, digital gadgets, cosmetics and therefore a lot more.
The machine creates use of PE film when the packaging material to wrap about your product, producing a nice-looking and seal is limited is immune to water, dirt in addition to various other pollutants. The film is heated up utilizing a high quality house heating that melts the film, creating it easy to wrap throughout the item. This treatment guarantees a light and seal is suitable customers will value.
Fully automatic system is automated. The machine utilizes sensing units that are automatic spot the product and begin the packaging treatment, that makes it incredibly effective and easy to use.
The style display command system creates operating the equipment extremely easy, getting rid of the requirement for progressed degree programs understanding. Have a stress quit include that might stop the packaging treatment in the event there is a significant mishap.
Has a resilient, ergonomic and style is small suits completely in any type of work environment. It is made from first-class materials which can be immune to use and tear, significance it might carry out routinely for an although is long very little upkeep required.
Obtain your GRANDEE MACHINE Automatic PE Film Heating Shrink Packing Machine today and change your packaging procedure such as never ever prior to.
