Automatic Pasteurized Fresh Milk And Yogurt Processing Machinery Production Line details

Products Description

Automatic Pasteurized Fresh Milk And Yogurt Processing Machinery Production Line manufacture

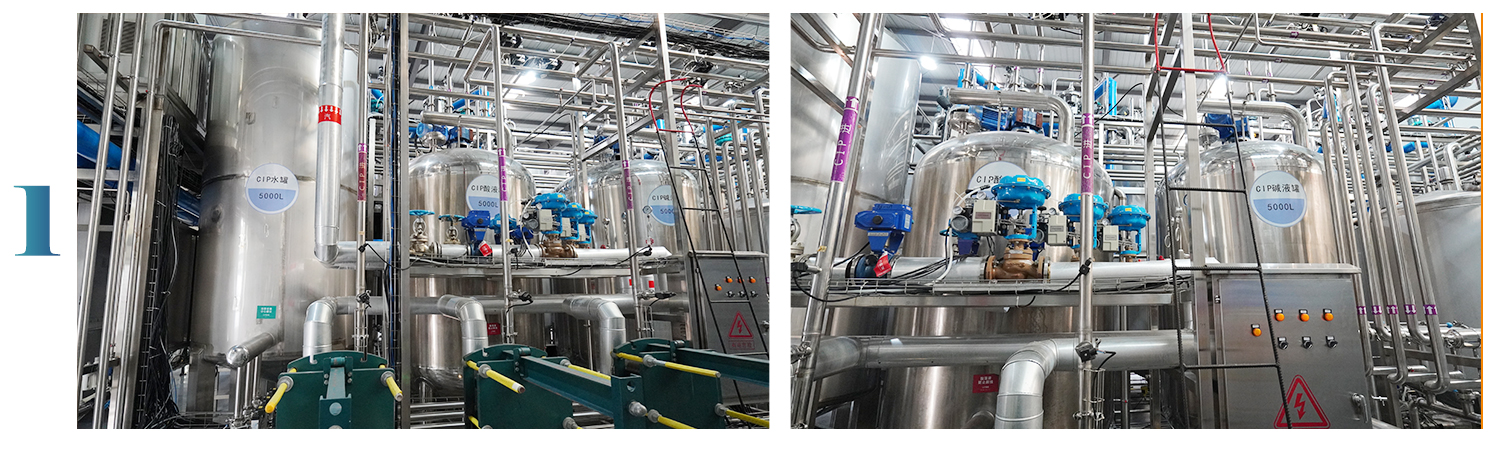

Acid-alkali tank Tank material: SUS304, Effective volume: 5000L. Support form: vertical type, 4 legs, normal pressure container. Taper sealing head up and down. Tank configuration: mouth of breath, hole, feeding hole, into the hot water, CIP cleaning mouth, etc. Tank configuration digital temperature meter, high and low liquid level gauge, temperature sensor interface, etc. Tank bottom have feed out hole. Polyester foam insulation, digital temperature controller and thermometer, holeφ400, liquid level gauge, in-wall 3mm, external 1.5MM, discharge on the upper feed side, discharge port 450MM above the ground, dimensions (mm): φ1900*3200 Temperature sensor: PT100, 4-20Am Electric conductivity: PT100, 4-20Am Liquid level switch: SUS304 Diaphragm pump: SUS304，300L/H

Automatic Pasteurized Fresh Milk And Yogurt Processing Machinery Production Line factory

Plate heat exchanger is a kind of energy-saving equipment to realize the heat transfer between two or more kinds of fluids at different temperatures, which is to transfer the heat from the fluid with higher temperature to the fluid with lower temperature, so that the fluid temperature reaches the specified indicators of the process to meet the needs of the process conditions, and is also one of the main equipment to improve the energy utilization rate. It can be widely used in steel, power generation, non-ferrous metals, grease, chemical, petrochemical, shipbuilding, HVAC, refrigeration, pharmaceutical, dairy, beer, beverages, central heating and other fields. The detachable plate heat exchanger is composed of metal heat exchange plate, front and rear baffle plate, sealant pad, guide rod, frame and so on. The adjacent plates and the sealant pad between them constitute a closed flow channel, and the hot and cold fluids flow through different flow channels and transfer heat through the plates under the guidance of the sealing pad to achieve the effect of heat exchange. Area: 14㎡ Stainless steel 316L material plate, inlet and outlet φ51, A3 bracket, outer stainless steel, steam inlet and outlet φ51

Mixing tank

Tank material: SUS304, Effective volume: 4000L. Support form: vertical type, 4 legs, normal pressure container. Taper sealing head up and down. Tank configuration: mouth of breath, hole, feeding hole, into the hot water, CIP cleaning mouth, etc. Top vertical mechanical mixing structure, stirring speed 56rpm, motor power 2.2kw. Paddle mixer. Tank configuration digital temperature meter, high and low liquid level gauge. Tank bottom have feed out hole. Weighing module: SUS304, Temperature sensor: PT100, 4-20Am Plate heat exchanger: Production capacity: 15 tons/hour. Material: SUS304, the frame is stainless steel, the heat exchange area is 16㎡. Material pump: 10T/H SUS304, carbide mechanical seal, inlet and outlet φ51, H=24M

CIP

Split semi-automatic control, acid tank 3000L, alkali tank 3000L, hot water tank 3000L, plate heating, steam ratio adjustment and early control. Configuration: CIP process pump 20T/H, 36-meter head, PE concentrated acid and concentrated alkali barrels, American pneumatic diaphragm pump, acid and alkali addition part, stainless steel straight pipe, valves, pipe fittings, bracket pipe accessories, electrical control box, power cord, Signal lines, wiring pipes, and temperatures are automatically controlled

Double filter

Material SUS304, stainless steel shell, stainless steel filter, filtration area 0.3㎡, filtration precision: 120 mesh, including conversion butterfly valve

UHT

Model: INTOP-6, flow rate: 6T/H; material SUS304, feeding 55℃, sterilization 135℃/15S, homogenization 65-70℃, discharging 65℃, PID automatic control, Siemens, PLC, Schneider Electric. The hot water pump adopts the Nanfang Pump Industry brand; the steam flow regulating valve, steam pressure reducing valve, sanitary ball valve, medium ball valve, butterfly valve, and pneumatic butterfly valve are all made of top domestic brands; stainless steel frame, stainless steel pipe valve, distribution box, thermometer, Pressure gauge, etc total power: 7.5KW Dimensions (mm): 6500*2500*2700

Automatic Pasteurized Fresh Milk And Yogurt Processing Machinery Production Line supplier

Homogenizer

Flow: 4T/H, rated pressure: 25Mpa, working pressure: 32Mpa, frequency conversion control, built-in control 1cabinet. Two-stage pressurization, dimensions L*W*H 2.3*1.4*1.6, power 37KW

Vacuum de-gasser The function of the vacuum de-gasser is to remove air (oxygen) from the feed liquid, inhibit browning, oxidation of pigments, vitamins, fragrance components and other substances, and prevent quality degradation; remove suspended particulate gas attached to the feed liquid and inhibit particulates Float and maintain a good appearance; prevent foaming from affecting sterilization during canning and high-temperature sterilization; reduce corrosion to the inner wall of the container. Remove air (oxygen) from the feed liquid, inhibit browning, oxidation of pigments, vitamins, fragrance components and other substances, and prevent quality degradation; remove suspended particulate gas attached to the feed liquid, inhibit the floating of particles, and maintain a good appearance; prevent Foaming during canning and high-temperature sterilization affects sterilization; reducing corrosion of the inner wall of the container

Sterile storage tank

Tank material: SUS304, effective volume: 4000L. Support form: vertical, 4 legs, normal pressure container: insulation tank, insulation layer thickness is not less than 50 mm, covered with stainless steel, thickness is not less than 2mm. Upper and lower tapered heads. Tank configuration: breathing port, manhole, feed port, CIP cleaning port, etc

NAME	BRAND	AREA
PLC	Siemens	Germany
INVERTER	Siemens	Germany
CONTACTOR	Siemens	Germany
TOUCH SCREEN	Siemens	Germany
INVERTER	Siemens	Germany
MOTOR	ABB	SWISS
PNEUMATIC PARTS	FESTO	GERMANY
ELECTRICAL PARTS	SCHNEIDER	FRANCE

For more information, please feel free to contact us to send an inquiry!

Turnkey Solution


RO system water treatment machine

Automatic blow molding machine

Small bottle water filling machine

Juice filling machine

Carbonated drink filling machine

Automatic soft drink production line

Mixed fruit juice mixing system

Mineral water filling machine

Bottle filling packaging machine

Company Profile

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10, 000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions. We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line, can filling and sealing line, complete blowing labeling and packaging system

FAQ

Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www. grandee machine. en. alibaba. com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for

Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years. We just not only sell drinking water machines and other related equipment, Quality is our culture. We have rich experienced engineers with technicians working team, providing good and after-sales service term, professional salesman terms

Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems

Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee, and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing

GRANDEE MACHINE

Introducing Automatic Pasteurized Fresh Milk and Yogurt Processing Machinery Production Line. The solution that is perfect dairy production businesses looking to improve efficiency and consistency inside their process. Designed to manage the method that is entire milk intake to last packaging of milk and yogurt services and products. Produced from high-quality materials that are durable and long-lasting ensuring your business gets the value that is perfect for cash. Automatic pasteurization system. Protects the pasteurization procedure ensuring that your yogurt and milk products are safe for usage. Designed to work effectively and effectively ensuring that the total amount that is right of is used to kill any bacteria present in the milk while preserving the vitamins and minerals regarding the milk. Is sold with an filling system that is automatic. Manages the filling regarding the milk and yogurt products ensuring that the total amount that is right of is in each container. Helps to increase efficiency and minimize the amount of waste from overfilling or containers that are under filling. Simple to operate. The settings are user-friendly and the production process may be checked in real-time to ensure that everything is operating efficiently. The production process can be managed by a operator that is single the need for extra work. Easy to clean and maintain. The components can be easily disassembled for cleaning and the manufacturing line is designed to be hygienic making sure your yogurt and milk products are safe for consumption. Exemplary support that is after-sales training. This guarantees that your companies gets the most out of the machinery and that any pressing issues or questions are dealt with promptly. This is the choice that is perfect your companies. Avail this now.
