GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions
Carbonated Drink Mixer QHS-8000
1. Automatic with Alarm:The pressure in all tank and the liquid level of the machine are all controlled automatically with PLC. Once a error occurs, the alarm lamp will light and the alarm ring will sound and the mixer will stop automatically
2. Easy operation and regulation:The operation of the mixer is especially convenient. Only turn around the buttons according to the pre-set program, the normal operation can be carried out. The production capacity, water-sugar proportion and gas content can be adjusted without exchanging and parts
3. Even mixing and accurate proportion: One time mixing process is adopted, so the mixture is even. The mixing proportion of water and sugar is strictly controlled with measuring needle valve with fine regulation. Its precision can reach about 5%
4. Enough gas content: The mixer adopts vacuum desoxidation technology at normal temperature. Its desoxidation ratio reaches above 90%. It has a baffle heat exchanger to cool the sugar-water mixture and carry out twice Carbonating, so its carbon content is especially high
Heat plate exchanger
The beverage pump extracts the raw liquid into the temporary storage tank, Pressurizes the liquid in the tank to the plate heat exchanger through the high pressure pump for cooling, then mixes with the carbon dioxide gas, and finally enters another storage tank for secondary mixing, increasing the mixing effect, so that the carbonated beverage is completed and the stainless steel pipe is connected to the filling machine. Function: Carbonated drink inlet and out and cooling water inlet and outlet

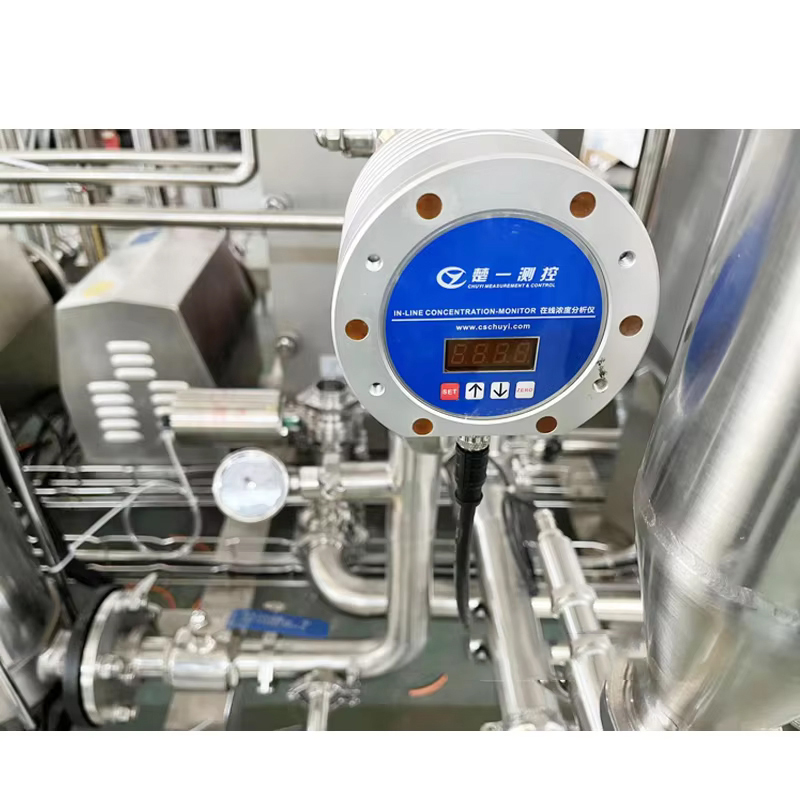

Online concentration analyzer
Based on the principle of light refraction, it is widely used in the online concentration of solution in food, pharmaceutical, biochemical and mechanical processing industries. Automatic detection and control, can be viewed and set through the concentration analyzer display panel and mobile phone Bluetooth connected APP software. Various parameters, with switching control signal output

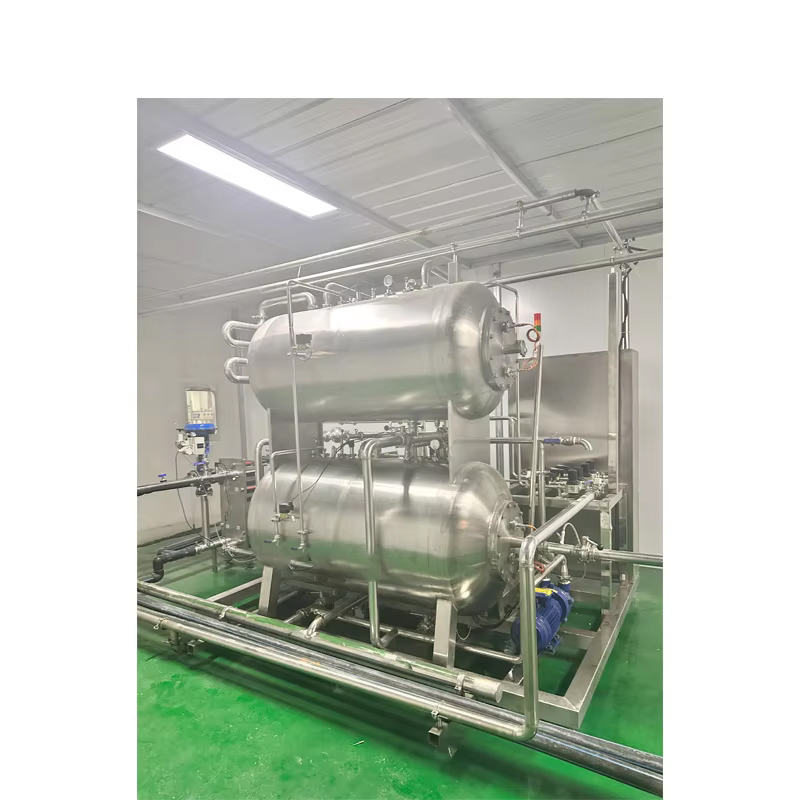

Carbonation tank
304/316 Stainless steel balanced pressure tank. Mixing uniformity, the proportion is accurate: Use flow meter to control liquid and CO2 ratio. The structure is healthy and easy to clean The machine adopts a closed system made by stainless steel and has the CIP flavor cleaning equipment to clean the equipment and pipeline by the liquid antiseptic and hot water, and then to ensure the beverage made by the machine can meet the health requirements
Proportional valve
The proportional valve precisely controls the ratio of sugar and water in the mixer equipment, reducing the risk of error and allowing the product to achieve the highest mixing effect

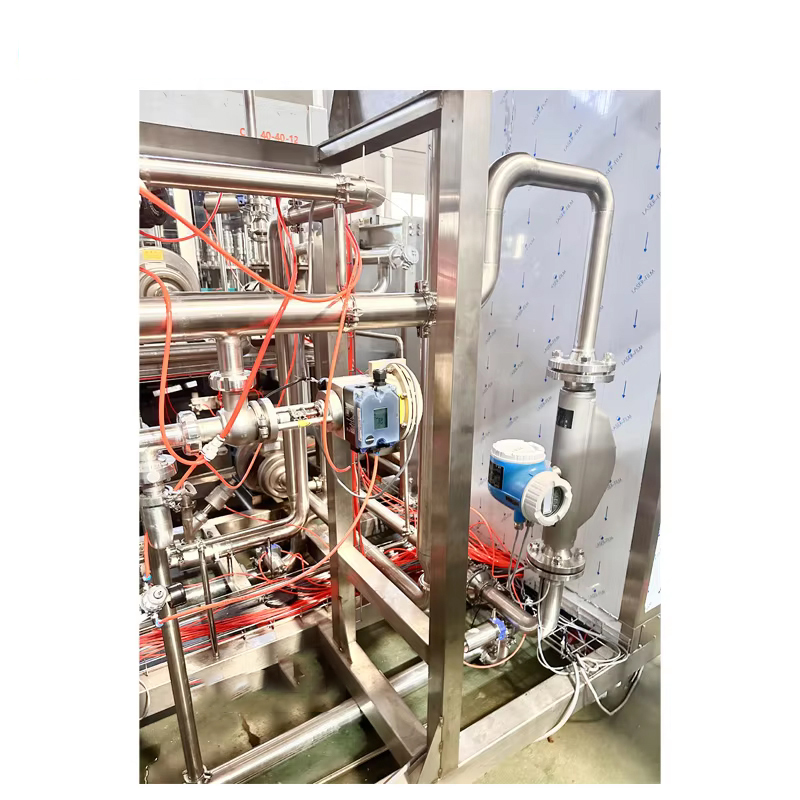

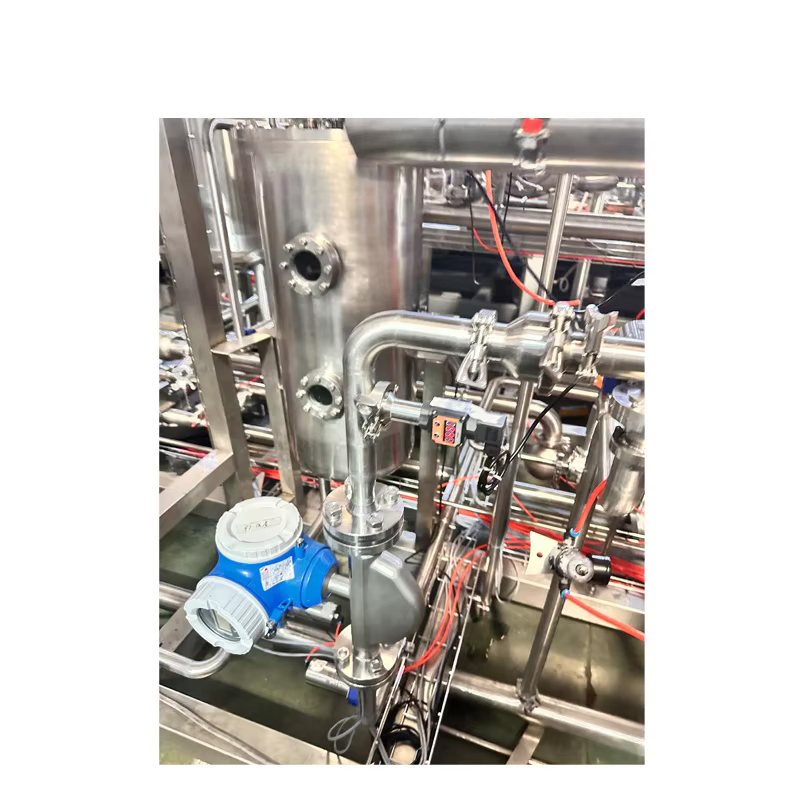

Flow meter
In the beverage industry, high-precision mass flow meter ensure precise proportional metering processes and results for sugar and water ingredients
|
Model
|
QHS-8000
|
QHS-2500
|
QHS-5000
|
QHS-8000
|
QHS-10000
|
QHS-12000
|
|
Production capacity (t/h)
|
8T/H
|
2000-3000
|
4000-5000
|
8000-9000
|
10000-12000
|
12000-14000
|
|
Mixing ratio range
|
1：3—1：7
|
|
|
|
|
|
|
CO2 content(CO₂ and H₂O volume ratio)
|
3.8-4.2
|
|
|
|
|
|
|
Finished drink temperature
|
＜4°
|
|
|
|
|
|
|
Semi-finished water and material temperature
|
4°-15°
|
|
|
|
|
|
|
CO2 consumption
|
About 350-450L/m
|
|
|
|
|
|
|
Finished drink pressure
|
0.2-0.3MPa
|
3.5kw
|
5.5kw
|
7.5kw
|
8.2kw
|
11kw
|
|
Finished drink outlet material pressure
|
0.3-0.6MPa
|
2.8*1.9m
|
3.2*2.2m
|
3.4*2.5m
|
4.8*2.3m
|
5.5*3.3m
|
|
Weight
|
4000kg
|
2.5m
|
2.5m
|
2.5m
|
2.5m
|
2.5m
|
|
Power
|
26kw
|
1500kg
|
2000kg
|
3500kg
|
5000kg
|
6000kg
|
|
Dimension
|
4200*2300*2400mm
|
|
|
|
|
|
|
Voltage
|
380V 50HZ 3P or customize
|
|
|
|
|
|
|
Material
|
Tank thickness: 3mm, with heat preservation, SUS304
|
|
|
|
|
|
|
NO.
|
Name
|
Brand
|
Country
|
|
1
|
Mixing pump
|
CNP
|
China
|
|
2
|
PLC
|
INOVANCE
|
China
|
|
3
|
Frequency changer
|
INOVANCE
|
China
|
|
4
|
Discharge pump
|
MATLONG
|
China
|
|
5
|
MATLONG
|
ATAGO
|
Japan
|
|
6
|
Proportional valve 2pcs
|
Yuan An
|
China
|
|
7
|
Flow meter 2pcs
|
Emerson
|
USA
|
|
8
|
Pressure sensor
|
Xuan sheng
|
China
|
|
9
|
Switch element
|
Schneider
|
French
|
|
10
|
Intake proportional valve
|
Shen ji
|
China
|
|
11
|
Heat plate exchanger
|
Purson
|
China
|
One stage or Second stage R.O. Water treatment system
Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine
Automatic OPP BOPP hot melt Glue labeling machine
Automatic BOPP labeling machine is widely suitable for different material of containers and labels. The cost of each label is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is one of the most economical models to make mass production and integrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, like changing the label is only needed to change the PLC program, the products concept that the equipment is used for users and considered for users is embodied in everywhere
Automatic PVC PE Sleeve Shrink Labeling Machine
This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc
Operating Principle Of Packaging Machine
The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping

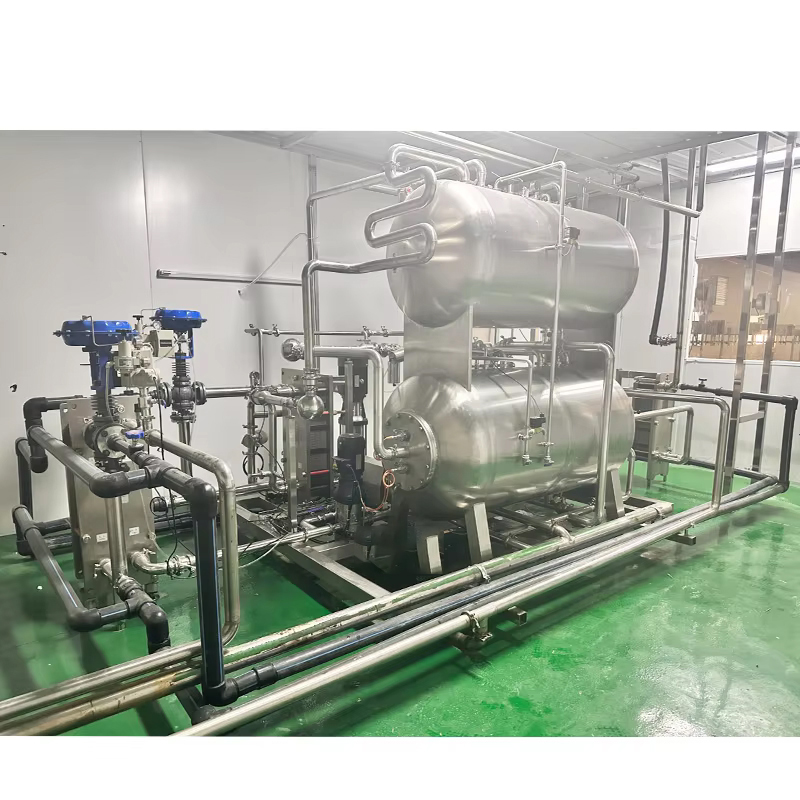

Carbonated drink mixer and water chiller
The sugar and water mixing according to proportional ratio feeding into the material mixer by material pump through flow meter. In the mixer, there is stainless steel corrugated sheet, can make the beverage and C02 good contact mixing. Mixer feeding entrance pass 0.4MPa CO2, Through static mixer, CO2 and liquid in the pipe mixing and achieve to required gas content(＜2.5）And then enter the storage tanks preparation pressure, the CO2 was fully dissolved in the beverage Storage tank should be equipped with pressure filled CO2
GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions
We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line, can filling and sealing line, complete blowing labeling and packaging system
Q1: How to find suitable machine or complete beverage production line
A1: Looking for beverage filling machine in www.grandeemachine.en.alibaba.com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for
Q2: Are you a trading company or a manufactory
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years. We just not only sell drinking water machines and other related equipment, Quality is our culture. We have rich experienced engineers with technicians working team, providing good and after-sales service term, professional salesman terms
Q3: Do you have technical support after we purchased your machines
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems
Q4: If you buy our machines, can you offer us wear-out spare parts
A4: We provide our high quality machine 2 years guarantee, and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing
Introducing, the GRANDEE MACHINE’s Automatic High Capacity Carbonated Soft Drink CO2 Mixer Gas Mixing Machine. This innovative piece of equipment is perfect for beverage manufacturers looking to enhance the quality of their carbonated soft drinks.
With its advanced technology, this makes it easy to mix the perfect amount of CO2 into your drinks, ensuring a consistent and delicious taste every time. It was designed to handle high volume production, making it ideal for large beverage manufacturing plants.
One of the key features of this is its easy-to-use interface. It boasts a user-friendly touch screen display which allows for easy adjustments and monitoring of the CO2 levels. You can easily adjust the speed and flow rate of the machine to ensure that it is delivering the optimum level of CO2 for your product.
Another great feature of this is its durability and reliability. Made from high-quality materials and backed by a comprehensive warranty, this machine was built to last. You can be confident that this investment will pay off in the long run with years of reliable performance and reduced maintenance costs.
Designed with efficiency in mind, it is fully automated which means that you can set it up to run continuously without the need for constant supervision. This frees up your staff to focus on other important tasks while the machine takes care of the CO2 mixing process.
One of the most attractive aspects of this is its price point. Despite its advanced features and high capacity, this machine is competitively priced, making it an excellent value for your businesses.
Get yours now.
