Automatic Flat Round Bottle Double Side Self Adhesive Sticker Labeling Machine

The GRANDEE MACHINE Automatic Flat Round Bottle Double Side Self Adhesive Sticker Labeling Machine device may be the perfect solution for companies buying dependable and efficient device  labeling. This product is built to label containers of various shapes and sizes making this versatile sufficient for a number of your labeling requirements. These devices runs for a sticker  self-adhesive which makes it easy to use and keep. Its double-sided labeling device helps to ensure that the leading and straight back of this containers are effortlessly labeled saving time  valuable resources. It comes down with a sensor system that guarantees the precision from the labeling procedure preventing any overlapping or mislabeling. The Automatic Flat Round Bottle Double Side Self Adhesive Sticker Labeling device may be made with durability in your mind. It is created using top-notch materials to ensure that it would likely withstand possibly the many demanding surroundings and that can be commercial. Also it includes a design  lightweight saves space and can even squeeze into any manufacturing line without producing disruptions. The GRANDEE MACHINE Automatic Flat Round Bottle Double Side Self Adhesive Sticker Labeling Machine device is easy to operate which consists of user  user-friendly interface. In addition is sold with an adjustment  automated enabling operators to produce fast and exact modifications to match their labeling requirements. The equipment was made to appeal to companies being different as pharmaceuticals cosmetic makeup products meals and drink. After its flexibility and freedom it may manage a myriad of labeling tasks with simplicity that makes it an solution  all-in-one labeling needs. The Automatic Flat Round Bottle Double Side Self Adhesive Sticker Labeling device is straightforward to clean following its simple yet effective design in terms of upkeep. Additionally it is developed to final what this means is downtime  minimal efficiency  high your preferences. The GRANDEE MACHINE brand name is celebrated in the market for creating labeling  top-notch being efficient dependable and economical. Using their dedication to client satisfaction and innovation maybe you are certain you're purchasing a item  top-of-the-line will fulfill your entire labeling requirements

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10, 000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions

Products Description

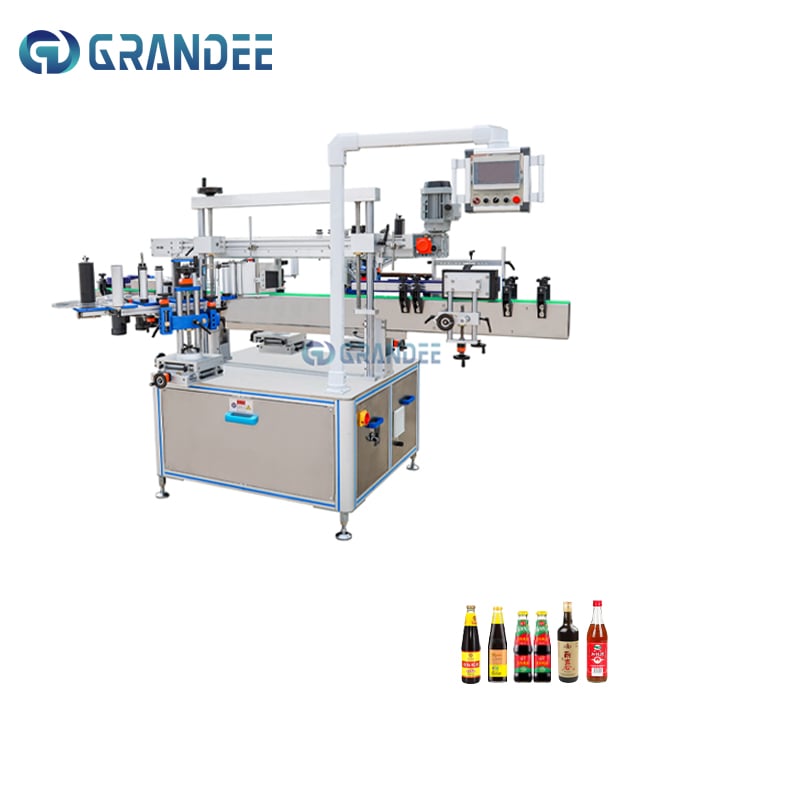

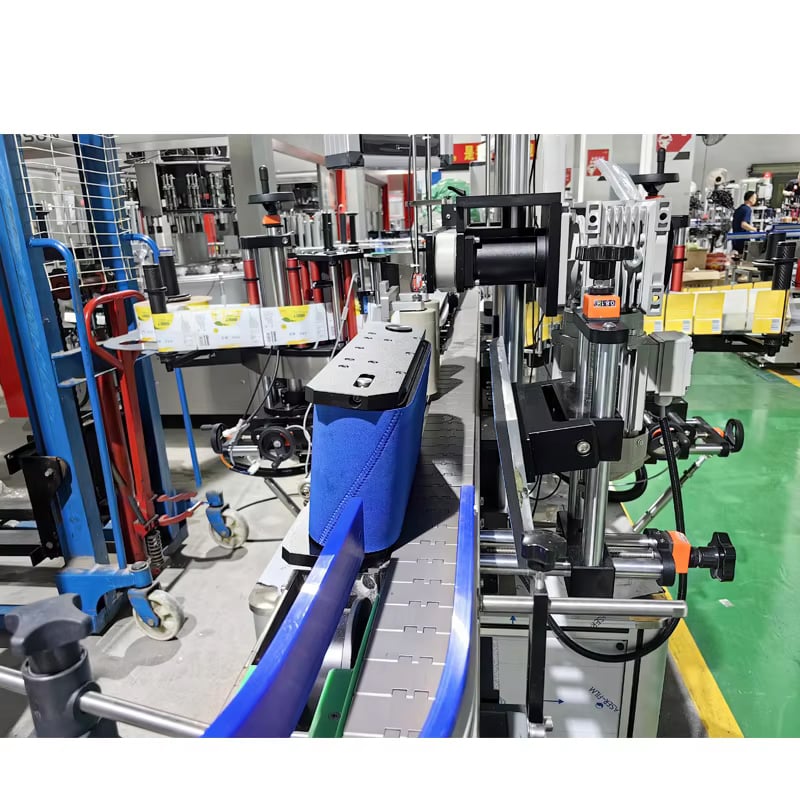

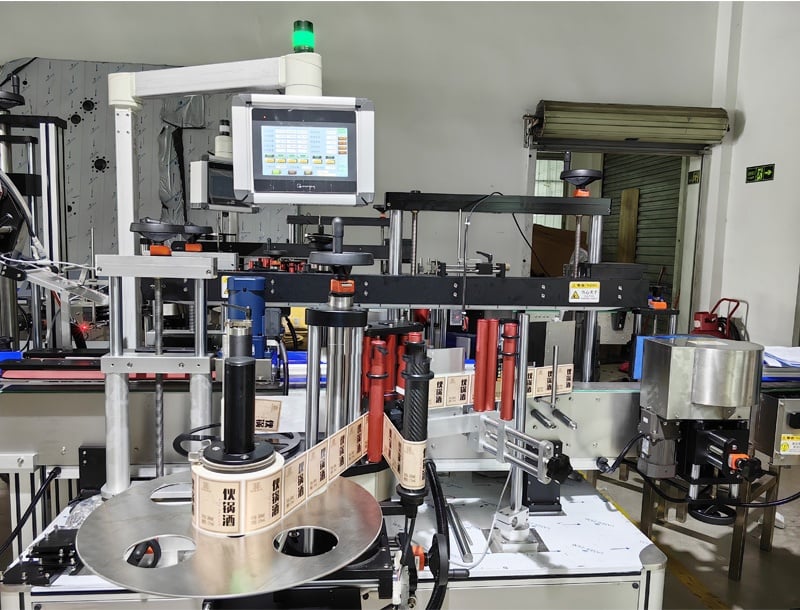

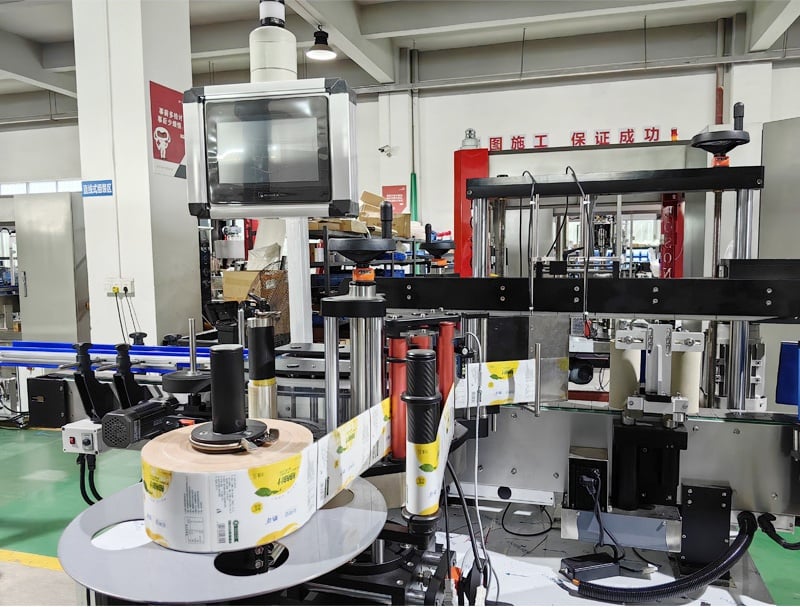

Automatic Double Sides Self Adhesive Labeling Machine

Vertical Self-Adhesive Labeling Machine is mostly applicable for the automatic labeling of column package containers for medicine, commodity, foodstuff, cultural supplies, electronics etc. It can automatically check the length of labels and is equipped with warning device of insufficient labels, broken labels and no chroma-tapes. The touch screen is easy and visual to operate. In addition, it has rich help functions and failure display functions

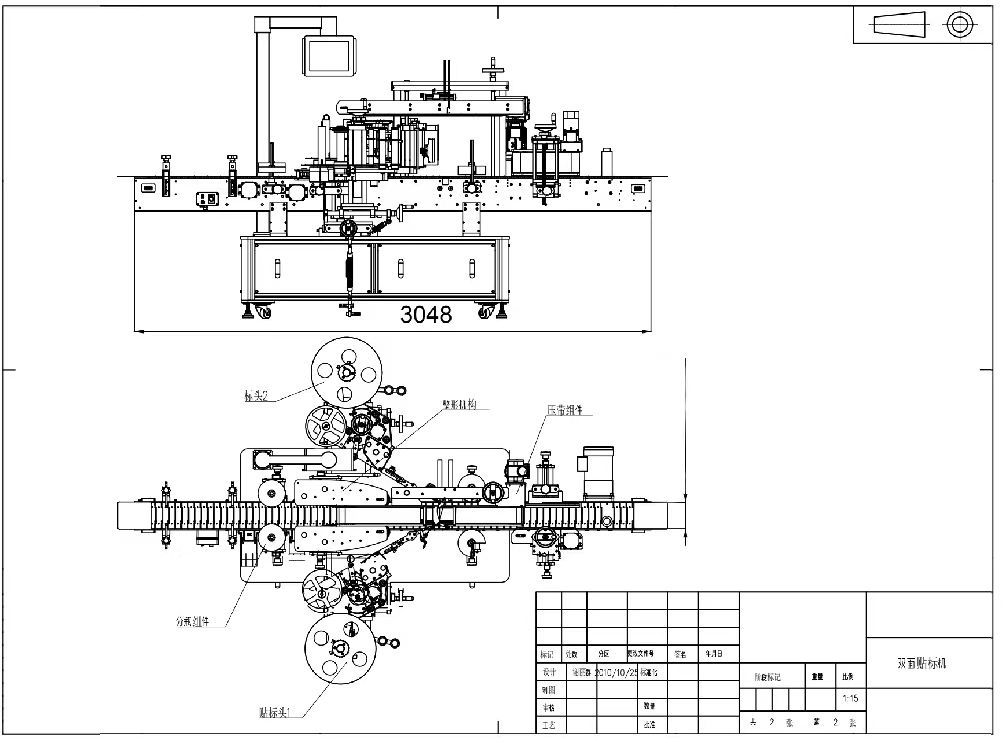

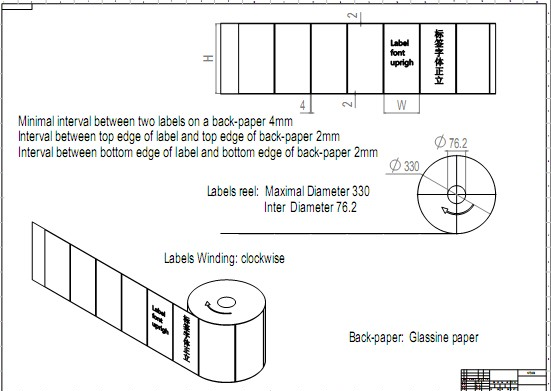

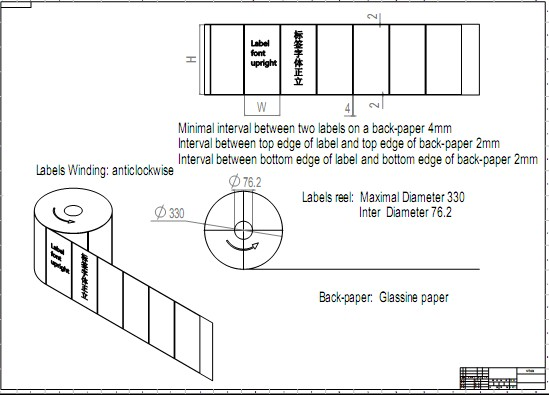

Diagram drawing for reference:

Performance characteristic

As the machine uses a combination of cutting-edge technologies, and high-performance components -
ultra small inertia servo motor, the system by Siemens programmable logic controller professional closed-loop control of servo motors, the use of advanced HMI system implement human and computer's conversation, During the host was rushed to the label speed control process, it can reach 0.01 m / min accuracy class, rather than the general machinery of 1 m / min, a single machine in this regard to improve both the accuracy class; and at this side, the machine improved two accuracy classes. On speed side, the machine use ultra-small inertia, high-power 750W YASKAWA servo motor, the speed between 0.5-40 m / minute can be adjusted any number under the large-scale to meet your production line speed, so as to achieve real High-speed labeling

PLC control system

It adopts standard PLC + touch screen+standard sensor electric control system control, human-computer interaction interface with full Chinese annotations and perfect fault prompt function, operation teaching function

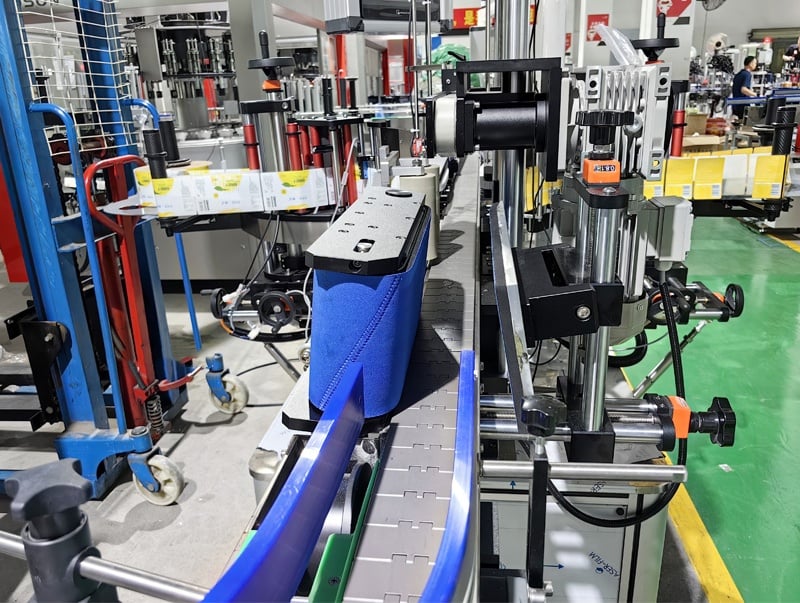

Bottle separation system

Equipped with an automatic bottle separation mechanism, the spacing is automatically separated before the bottle is guided to ensure the stability of the subsequent bottle guiding, conveying and labeling

Bottle pressing system

Equipped with elastic pressure topping mechanism to ensure stable product delivery and effectively eliminate the inherent error of bottle height

Photoelectric tracking system

Intelligent control, automatic photoelectric tracking, with no objects and no labeling, no label automatic correction and automatic label detection functions, to avoid wasting labels and missing labels

Double labeling mechanism

Equipped with a double labeling mechanism to ensure labeling accuracy for the first time, and double-squeeze labeling to effectively eliminate air bubbles and ensure that the label head and tail are tightly attached

Main technical parameter

Machine model	GD-650GS
Label accuracy	±1mm
Label roller outer diameter max	400 mm
Label roller inner diameter	76.2 mm
Production speed	6000-12000BPH for 500ml bottle
Label width max height of label	180mm can be made according to the request
Bottle height max	300mm
Bottle diameter/width	30-100mm
Labeling accuracy	PP, PET, OPS, Paper
Power	220V 50 Hz 3KW
Machine size	L3048*W1400*H1650 mm
Machine weight	500kg

For more information, please feel free to contact us to send an inquiry!

Turnkey Solution

Juice filling machine

Carbonated drink filling machine

Small bottle water filling machine

Fruit juice filling machine

Mineral water filling machine

Bottle filling packaging machine

One stage or Second stage R. O. Water treatment system

Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine

Automatic OPP BOPP hot melt Glue labeling machine

Automatic BOPP labeling machine is widely suitable for different material of containers and labels. The cost of each label is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is one of the most economical models to make mass production and integrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, like changing the label is only needed to change the PLC program, the products concept that the equipment is used for users and considered for users is embodied in everywhere

Automatic PVC PE Sleeve Shrink Labeling Machine

This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc

Operating Principle Of Packaging Machine

The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping
