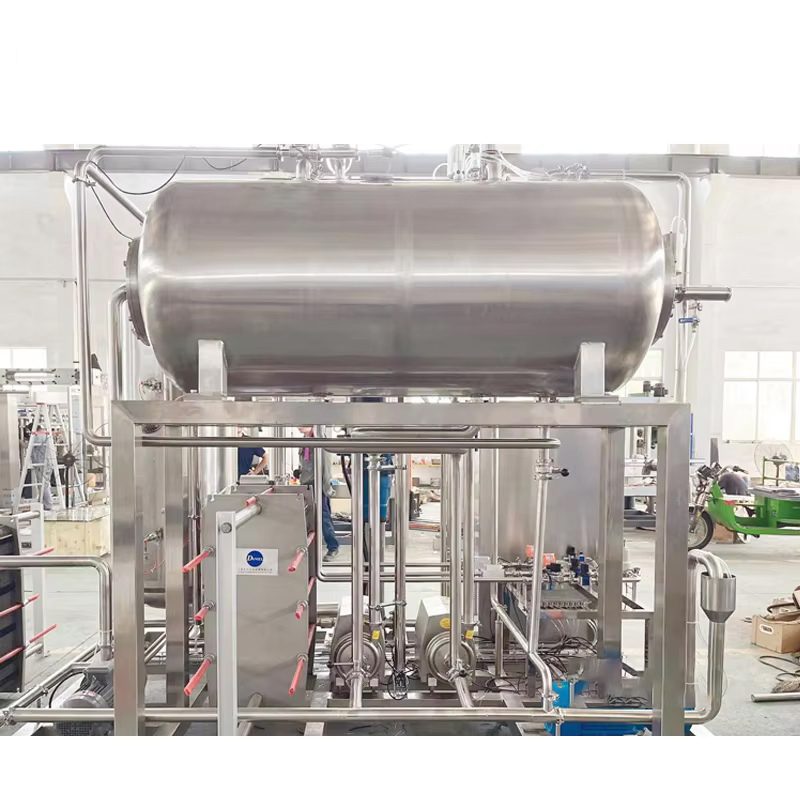

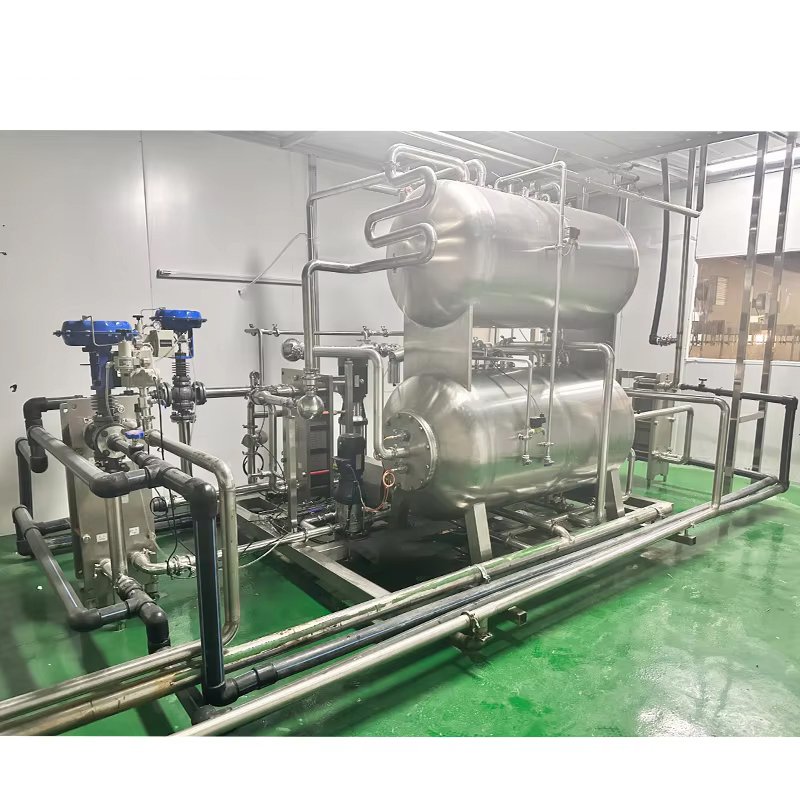

Carbonated Drink Mixer QHS-8000
1. Automatic with Alarm:The pressure in all tank and the liquid level of the machine are all controlled automatically with PLC. Once a error occurs, the alarm lamp will light and the alarm ring will sound and the mixer will stop automatically
2. Easy operation and regulation:The operation of the mixer is especially convenient. Only turn around the buttons according to the pre-set program, the normal operation can be carried out. The production capacity, water-sugar proportion and gas content can be adjusted without exchanging and parts
3. Even mixing and accurate proportion: One time mixing process is adopted, so the mixture is even. The mixing proportion of water and sugar is strictly controlled with measuring needle valve with fine regulation. Its precision can reach about 5%
4. Enough gas content: The mixer adopts vacuum desoxidation technology at normal temperature. Its desoxidation ratio reaches above 90%. It has a baffle heat exchanger to cool the sugar-water mixture and carry out twice Carbonating, so its carbon content is especially high
Heat plate exchanger
The beverage pump extracts the raw liquid into the temporary storage tank, Pressurizes the liquid in the tank to the plate heat exchanger through the high pressure pump for cooling, then mixes with the carbon dioxide gas, and finally enters another storage tank for secondary mixing, increasing the mixing effect, so that the carbonated beverage is completed and the stainless steel pipe is connected to the filling machine. Function: Carbonated drink inlet and out and cooling water inlet and outlet
Online concentration analyzer
Based on the principle of light refraction, it is widely used in the online concentration of solution in food, pharmaceutical, biochemical and mechanical processing industries. Automatic detection and control, can be viewed and set through the concentration analyzer display panel and mobile phone Bluetooth connected APP software. Various parameters, with switching control signal output
Carbonation tank
304/316 Stainless steel balanced pressure tank. Mixing uniformity, the proportion is accurate: Use flow meter to control liquid and CO2 ratio. The structure is healthy and easy to clean The machine adopts a closed system made by stainless steel and has the CIP flavor cleaning equipment to clean the equipment and pipeline by the liquid antiseptic and hot water, and then to ensure the beverage made by the machine can meet the health requirements

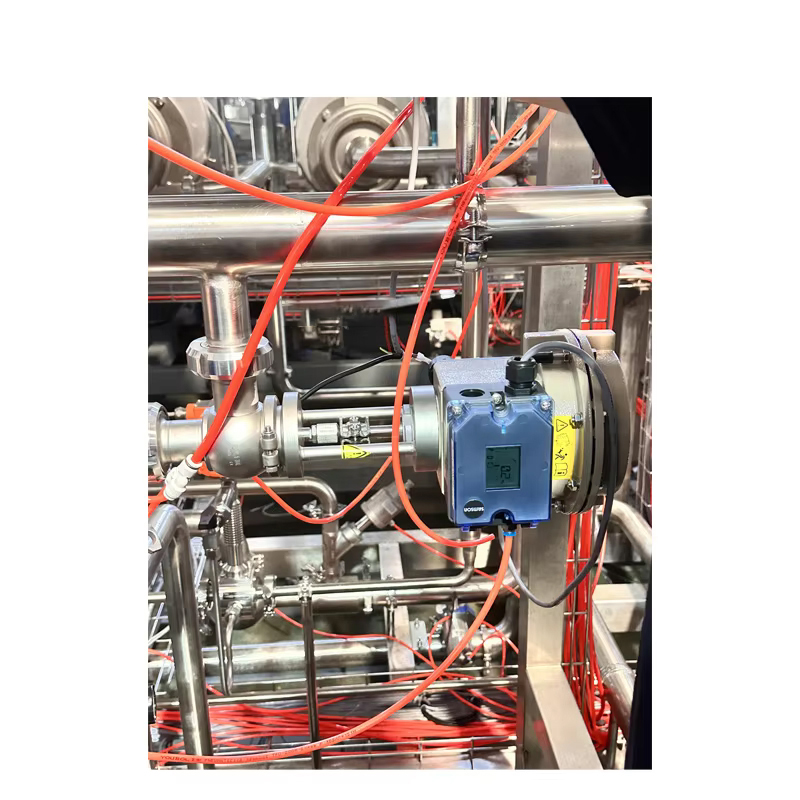

Proportional valve
The proportional valve precisely controls the ratio of sugar and water in the mixer equipment, reducing the risk of error and allowing the product to achieve the highest mixing effect

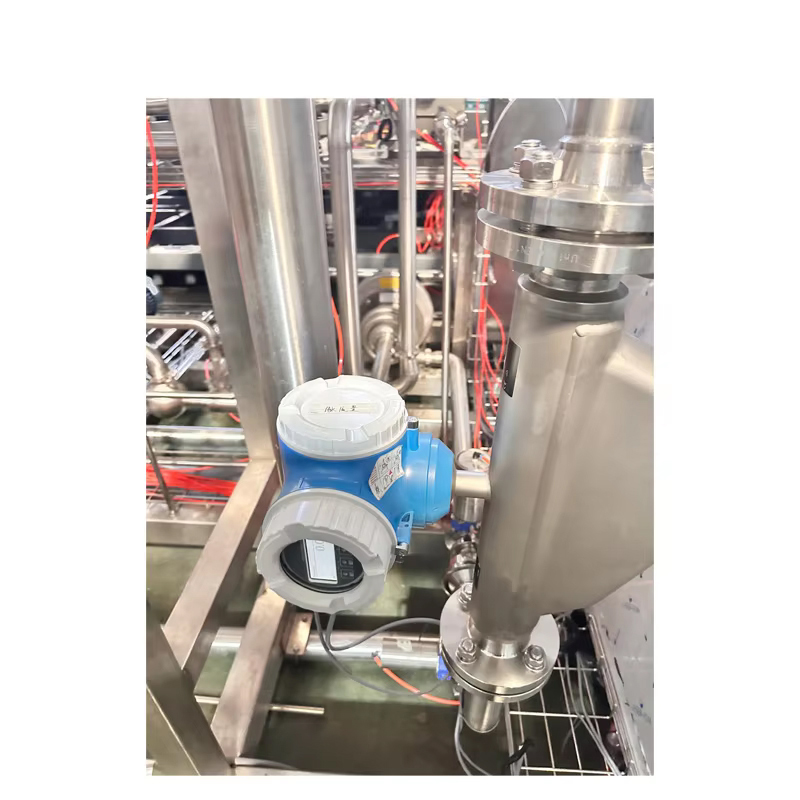

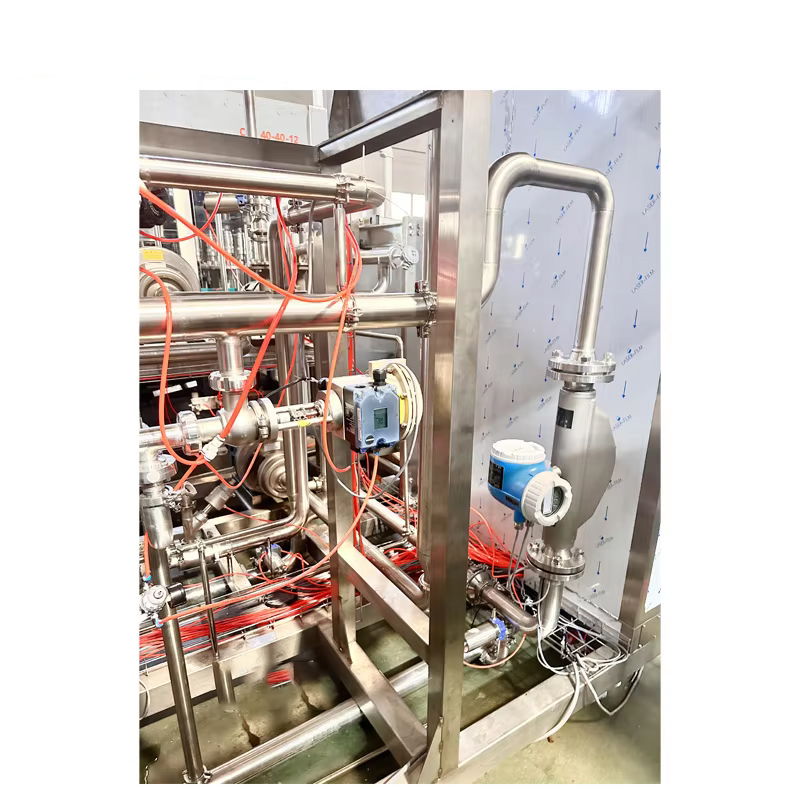

Flow meter
In the beverage industry, high-precision mass flow meter ensure precise proportional metering processes and results for sugar and water ingredients
Model | QHS-8000
| QHS-2500 | QHS-5000 | QHS-8000 | QHS-10000 | QHS-12000 |
Production capacity (t/h) | 8T/H | 2000-3000 | 4000-5000 | 8000-9000 | 10000-12000 | 12000-14000 |
Mixing ratio range | 1：3—1：7 |
|
|
|
|
|
CO2 content(CO₂ and H₂O volume ratio) | 3.8-4.2 |
|
|
|
|
|
Finished drink temperature | ＜4° |
|
|
|
|
|
Semi-finished water and material temperature | 4°-15° |
|
|
|
|
|
CO2 consumption | About 350-450L/m |
|
|
|
|
|
Finished drink pressure | 0.2-0.3MPa | 3.5kw | 5.5kw | 7.5kw | 8.2kw | 11kw |
Finished drink outlet material pressure | 0.3-0.6MPa | 2.8*1.9m | 3.2*2.2m | 3.4*2.5m | 4.8*2.3m | 5.5*3.3m |
Weight | 4000kg | 2.5m | 2.5m | 2.5m | 2.5m | 2.5m |
Power | 26kw | 1500kg | 2000kg | 3500kg | 5000kg | 6000kg |
Dimension | 4200*2300*2400mm |
|
|
|
|
|
Voltage | 380V 50HZ 3P or customize |
|
|
|
|
|
Material | Tank thickness: 3mm, with heat preservation, SUS304 |
|
|
|
|
|
NO. | Name | Brand | Country |
1 | Mixing pump | CNP | China |
2 | PLC | INOVANCE | China |
3 | Frequency changer | INOVANCE | China |
4 | Discharge pump | MATLONG | China |
5 | MATLONG | ATAGO | Japan |
6 | Proportional valve 2pcs | Yuan An | China |
7 | Flow meter 2pcs | Emerson | USA |
8 | Pressure sensor | Xuan sheng | China |
9 | Switch element | Schneider | French |
10 | Intake proportional valve | Shen ji | China |
11 | Heat plate exchanger | Purson | China |
One stage or Second stage R.O. Water treatment system
Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine
Automatic OPP BOPP hot melt Glue labeling machine
Automatic BOPP labeling machine is widely suitable for different material of containers and labels. The cost of each label is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is one of the most economical models to make mass production and integrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, like changing the label is only needed to change the PLC program, the products concept that the equipment is used for users and considered for users is embodied in everywhere
Automatic PVC PE Sleeve Shrink Labeling Machine
This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc
Operating Principle Of Packaging Machine
The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping
Carbonated drink mixer and water chiller
The sugar and water mixing according to proportional ratio feeding into the material mixer by material pump through flow meter. In the mixer, there is stainless steel corrugated sheet, can make the beverage and C02 good contact mixing. Mixer feeding entrance pass 0.4MPa CO2, Through static mixer, CO2 and liquid in the pipe mixing and achieve to required gas content(＜2.5）And then enter the storage tanks preparation pressure, the CO2 was fully dissolved in the beverage Storage tank should be equipped with pressure filled CO2
GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions
We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line, can filling and sealing line, complete blowing labeling and packaging system
A1: Looking for beverage filling machine in www.grandeemachine.en.alibaba.com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for
Q2: Are you a trading company or a manufactory
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years. We just not only sell drinking water machines and other related equipment, Quality is our culture. We have rich experienced engineers with technicians working team, providing good and after-sales service term, professional salesman terms
Q3: Do you have technical support after we purchased your machines
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems
Q4: If you buy our machines, can you offer us wear-out spare parts
A4: We provide our high quality machine 2 years guarantee, and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing
The Automatic energy-saving type CO2 carbonated drink mixer soft drink beverage mixing machine from GRANDEE MACHINE is an innovative product that was designed to help you mix and carbonate your favorite drinks efficiently and quickly.
It was made of high-quality materials that can withstand heavy usage. It features advanced technology that ensures an accurate mixing and carbonation process while also saving you energy.
It comes with a user-friendly interface that makes it easy to operate. The machine is equipped with a touchscreen display that allows you to customize the settings according to your preferences.
One of the standout features of this is its energy-saving capabilities. It consumes less electricity compared to other models in the market, allowing you to save money on your utility bills while still enjoying your favorite carbonated drinks.
It has a capacity of 500 liters per hour, making it ideal for commercial use: in restaurants, bars, and other foodservice establishments. It is also perfect for home use if you love hosting parties or gatherings.
It is durable, reliable, and easy to maintain. It has a compact design that saves space in your kitchen or commercial establishment. It is easy to clean with removable parts that can be detached and washed separately.
