Automatic bottle label shrink sleeve labeling machine equipment with steam heating tunnel

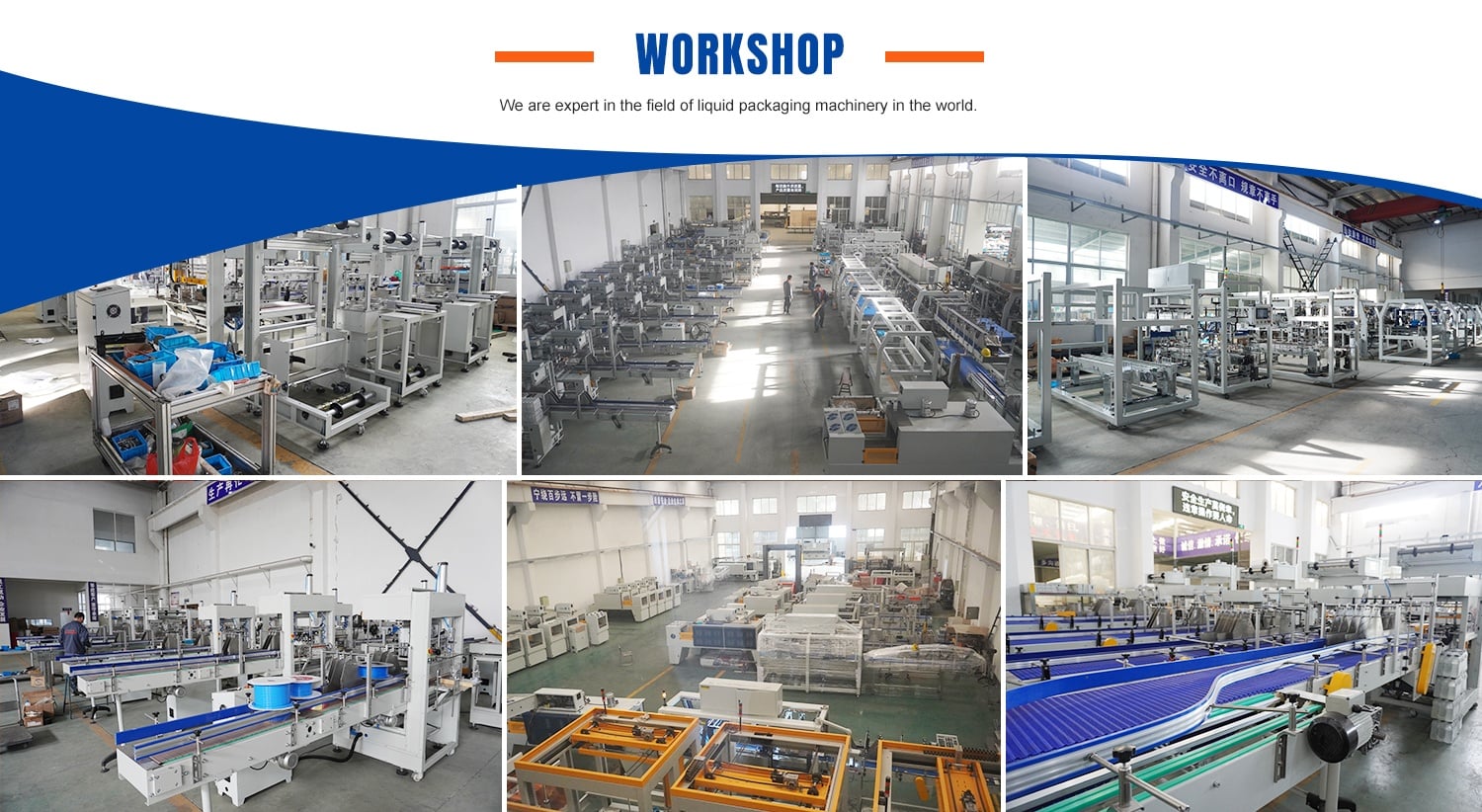

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10, 000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description

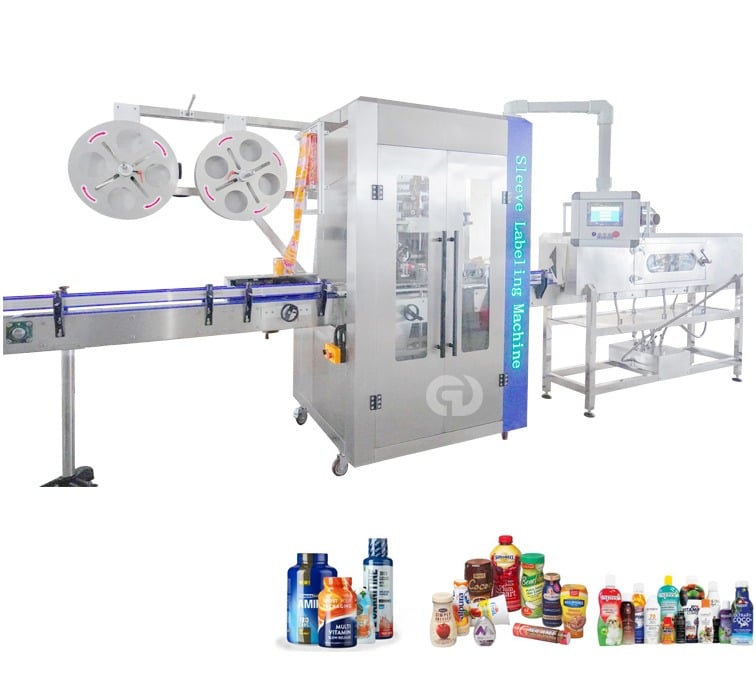

Automatic PVC PE Sleeve Shrink Labeling Machine

This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc

Pharmaceutical & Healthcare Industry Food & Beverage Industry Daily chemical & Beauty Industry

Suitable: Medicine, Health products Bottled water, yogurt cup, canned food etc

Daily chemical products, cosmetic products etc
Bottle Material: PET / PE / Glass / Metal Bottle Type: Round / Square / Unique

Label Material: PVC/PET Shrink Label

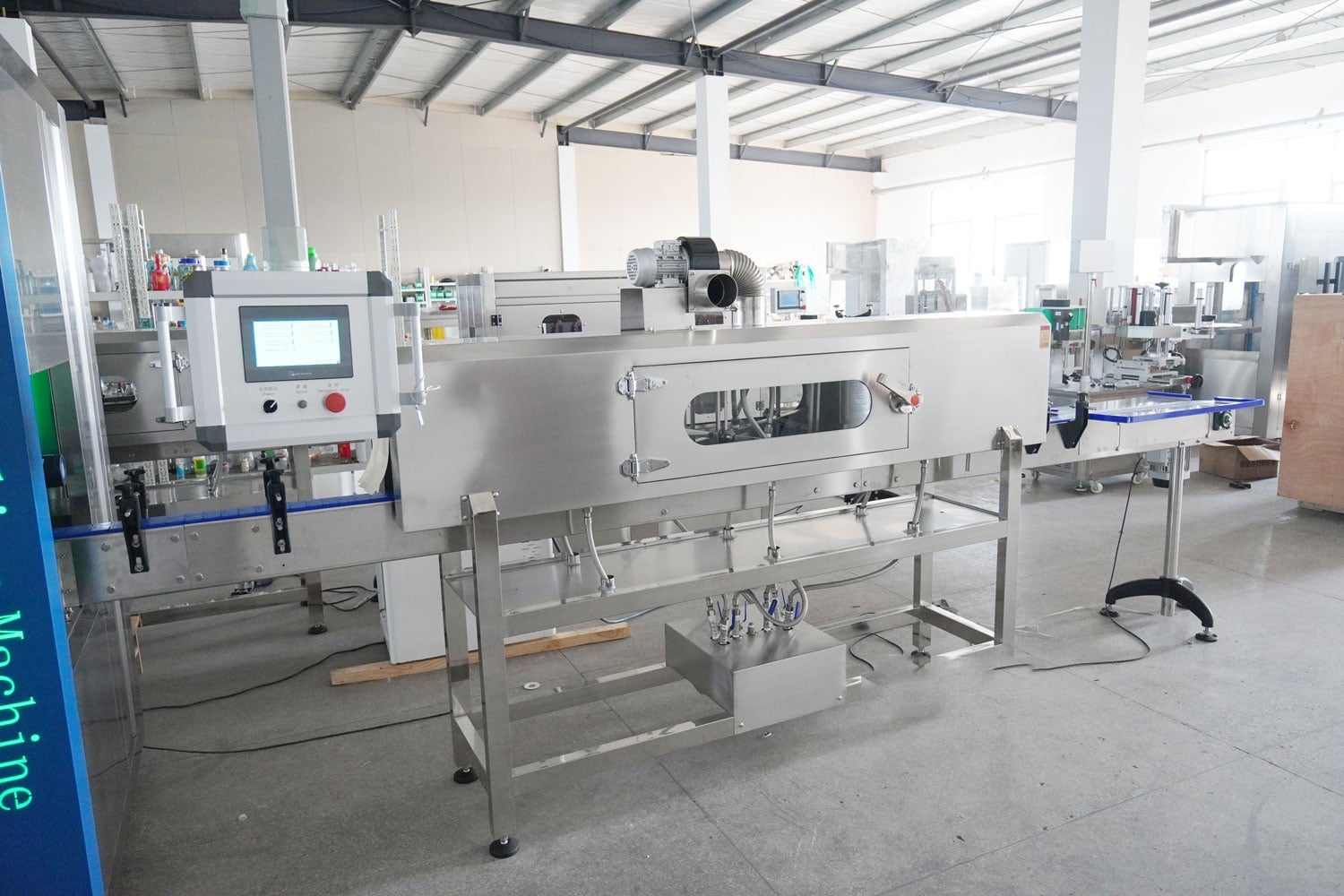

Steam heat shrink tunnel

Tunnel provides the support for making hot sleeves which can be readily wrapped on products or containers. The tunnels are available with different mechanisms which can be chosen based on the wrapping material and its compatibility with the type of heat produced inside the tunnel. Consumers can choose hot steam tunnel or electric heat tunnels as per the labeling material texture and compatibility.

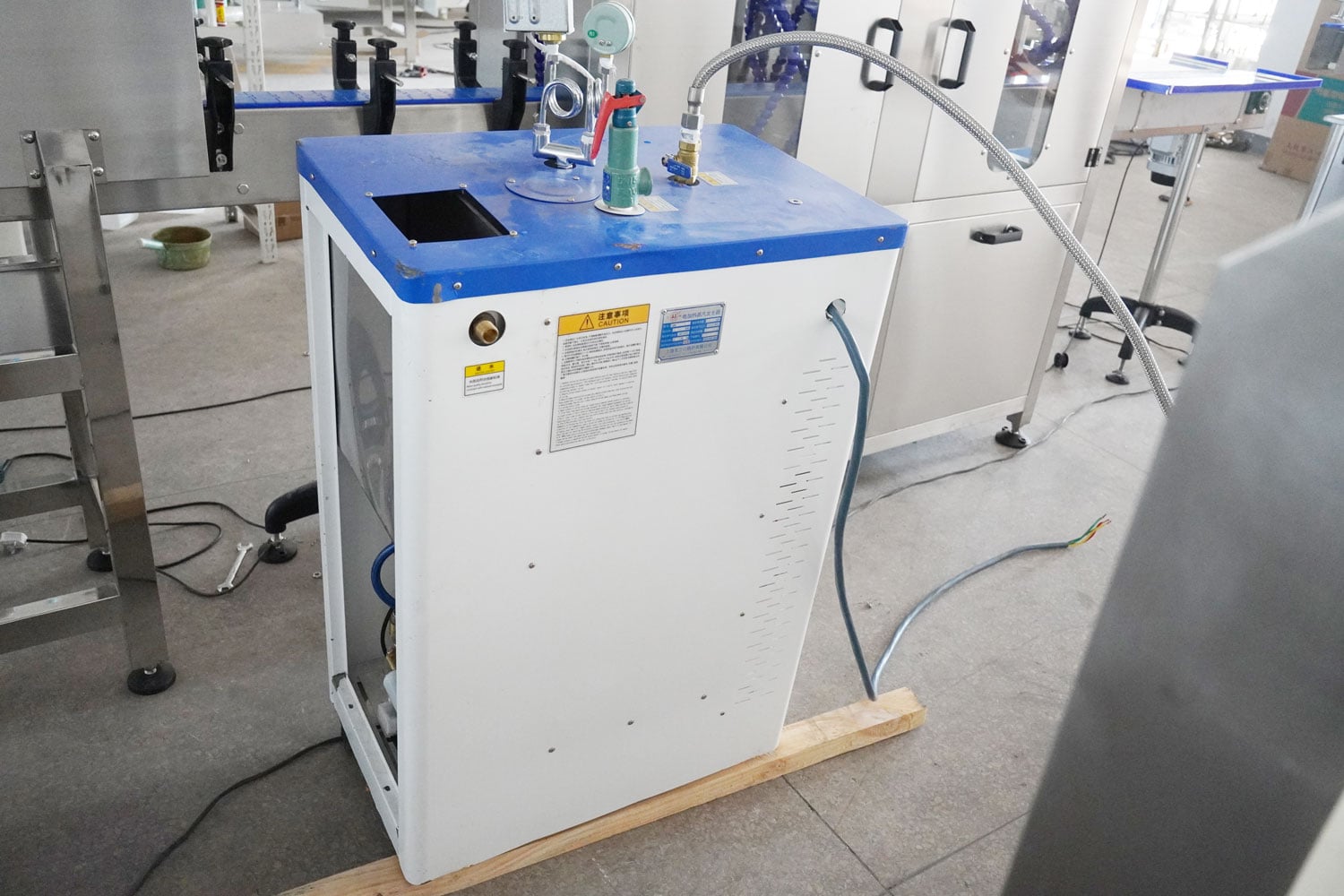

Steam Generator

The steam pressure is 3.5 bar, then open the steam hand valve to about 45 degrees, let the steam shrinking furnace heat up, and observe the temperature gauge on the shrinking furnace at 95-100 degrees.

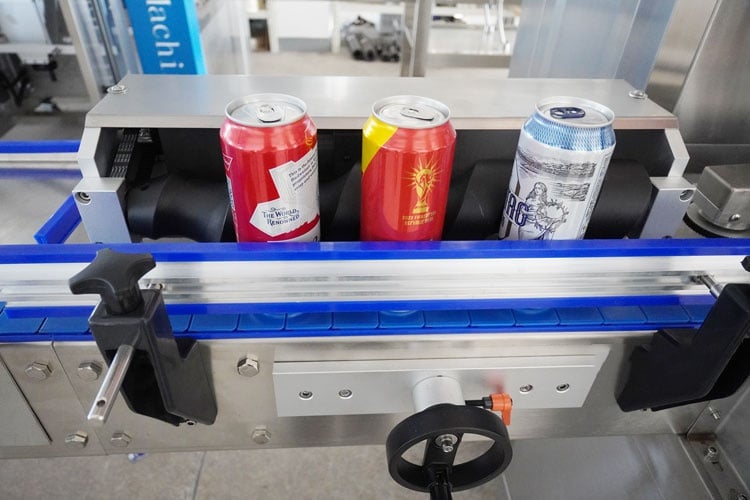

Separating screw feeder

1. When your container is glass bottle or square bottle or irregular shape, so this screw bottle feeder will be included. 2. The bottle separating component can help to separate bottle and adjust bottles distance, ensure the bottle can be labeled in order, improve the labeling effect

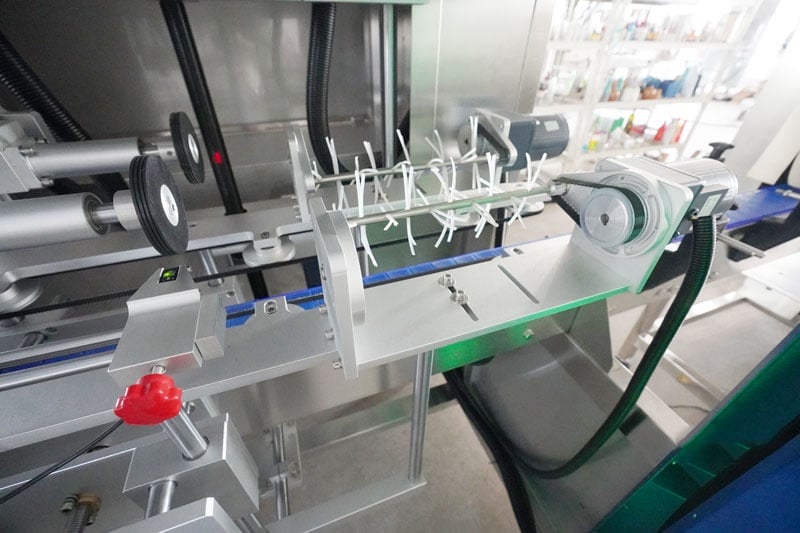

Rubber underbrushes

It is with soft brush which is used to improve the sleeve effect for the next film shrinking process.

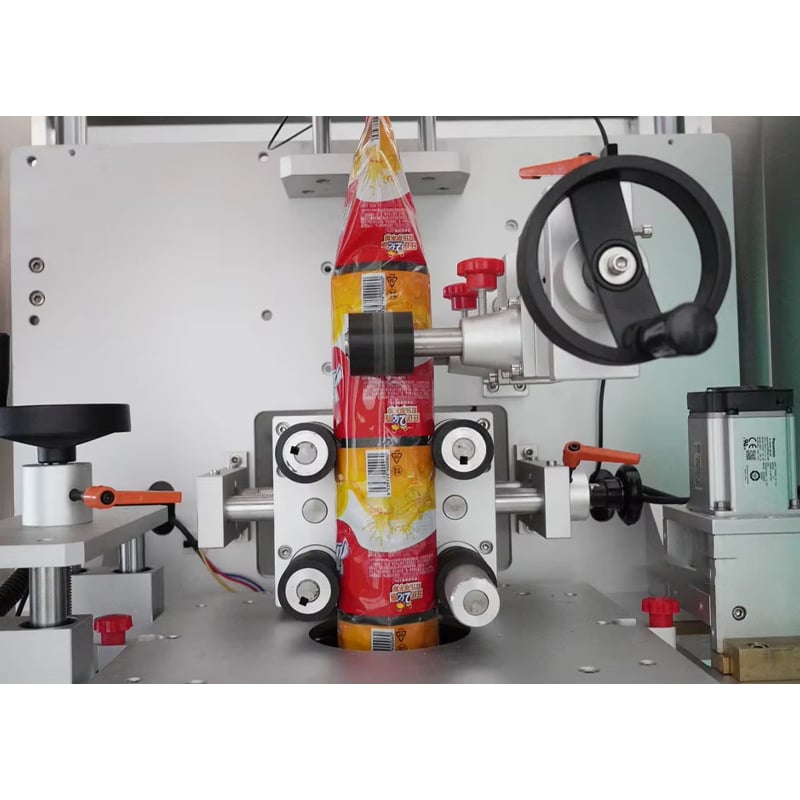

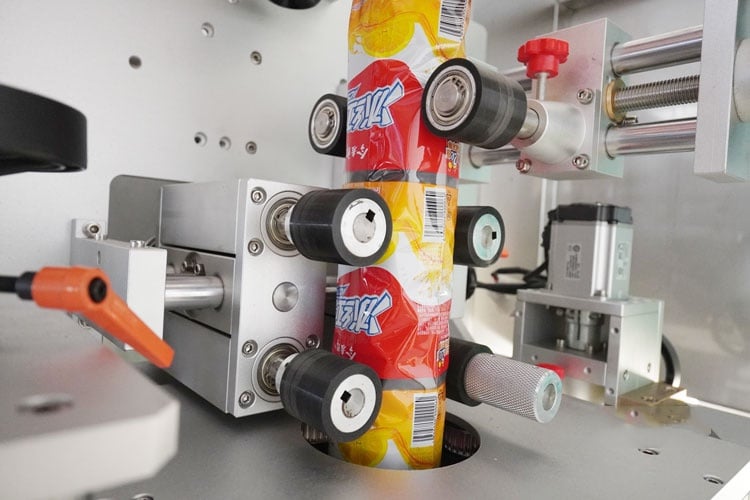

Drive rollers

Suitable for different shapes of bottles the label feeding mechanism can automatically work once the system detect bottles. double-group mechanism synchronous servo motor control, so that the shrink film can be conveyed in a fixed size

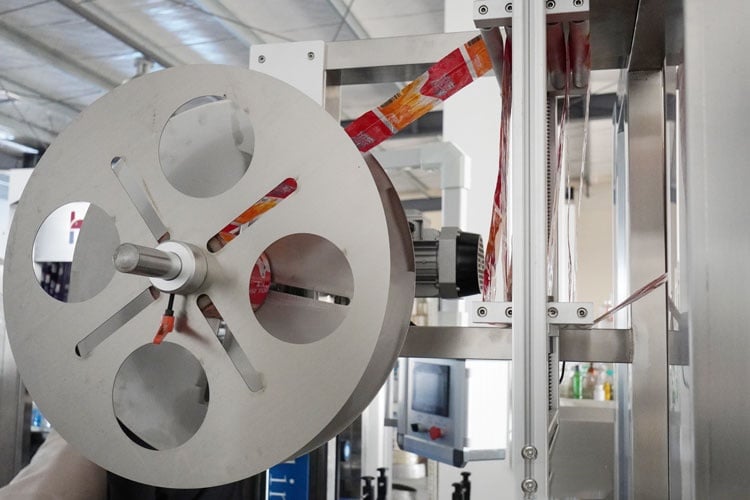

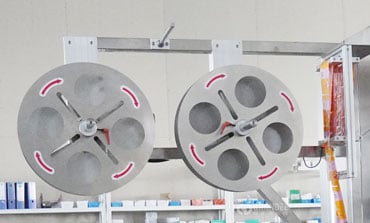

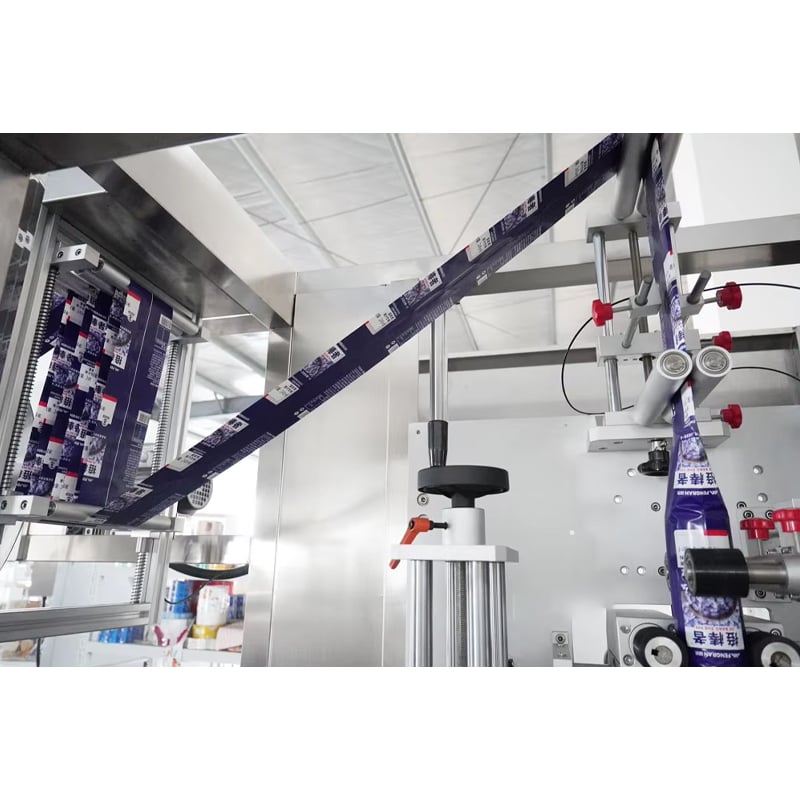

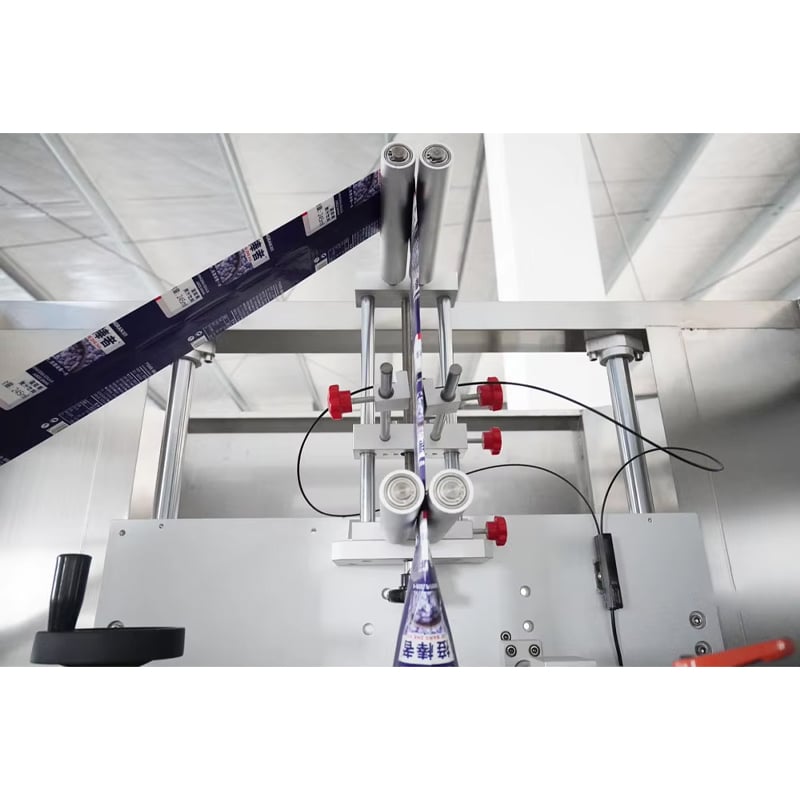

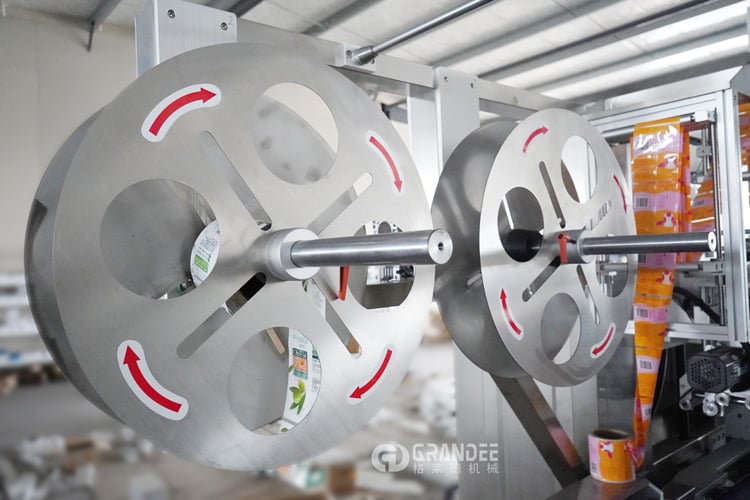

Label roller feeder with sensor

It is composed of a feeder box that controls the tension of the label feeding and a feeder rack above the electric eye rack group where the label is turned and positioned to convey the label film material

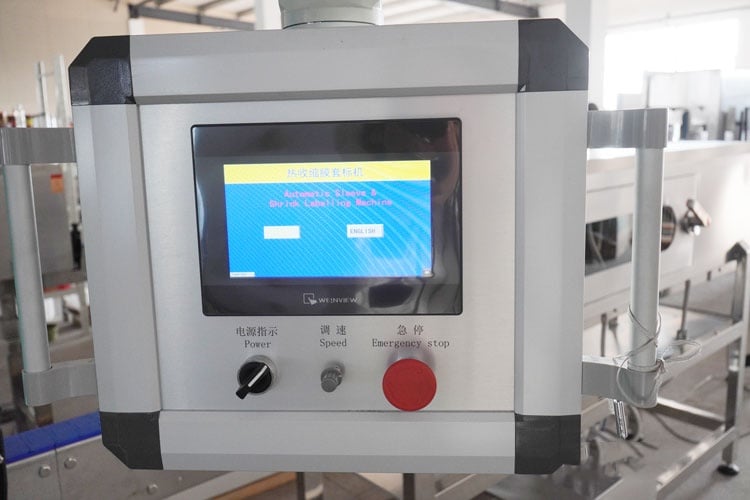

PLC control system

Panasonic servo frequency converter makes the working parameter is visual, the precise adjustment can be easily achieved according to operation, ensure the labeling effect, it helps save a lot of time

Main technical parameter

Machine model	GD-S150
Bottle diameter range	φ28mm- φ125mm
Bottle height	30mm-280mm
Label length	30mm-250mm
Label thickness	0.03 mm - 0.13 mm (PVC, PET, OPS, materials are all available)
Sleeve standard error	±1.5mm
Machine speed	150 bottles/min
Voltage	220V single phase
Power	24kw ( mainly steam boiler)
Main machine conveyor	Standard 2M
Machine size	2230*1230*2200 mm (L*W*H)
Machine weight	600KGS

Turnkey Solution

1. RO system

This RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department. This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.
This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised. We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc

2. Automatic blow molding machine for PET bottle:

Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity, etc from 2500BPH to 12000BPH for 500ml bottle.

3. Automatic OPP hot glue labeling machine:

Capacity: 100-350bottles/min can be chosen                                Label material: PVC PET OPS, etc
Bottle material: PET PE PP Glass                                                      Bottle Diameter: 28 ~ 120mm
Bottle Height: 15~320mm                                                                  Bottle shape: round, square, ellipse, rectangular
Label length: 30~250mm(max)                                                         Label thickness: 0.03~0.13mm

4. High speed automatic PE film shrink packing machine:

Film material: PE                                                                         Shrink membrane thickness: 70~100um
Capacity: 20-25packages/ min can be chosen                      Conveyor belt max width: 600mm
Height: 1000～1100mm
