Automatic 4 in 1 plastic mineral water bottle filling and capping machine production line plant

GRANDEE MACHINE

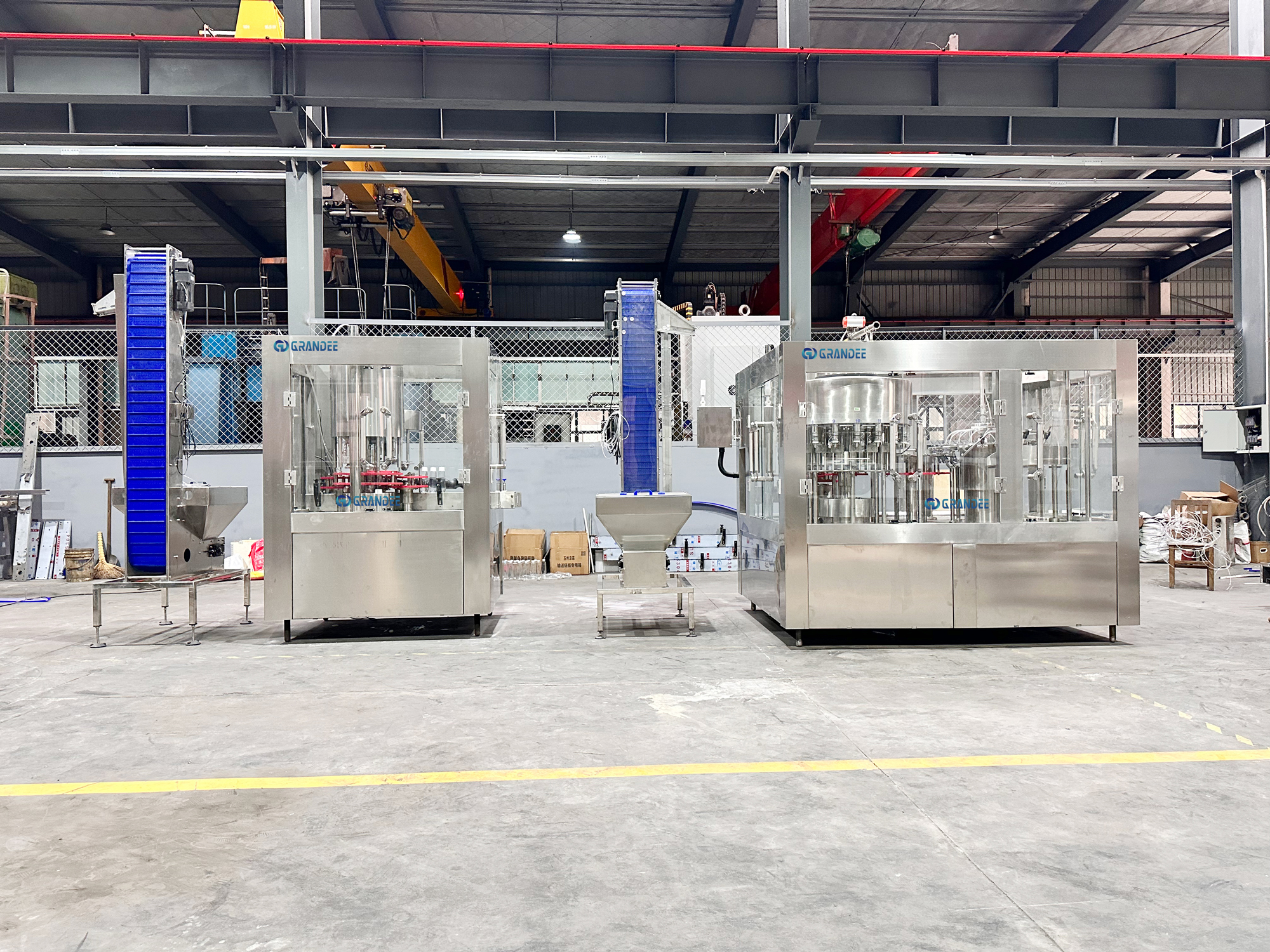

The is an innovative, state-of-the-art 4 in 1 plastic mineral water bottle filling and capping machine production line plant. This advanced machine is designed to help water bottling companies fill and cap their bottles with ease and efficiency. The machine is fully automatic, which means it requires minimal human intervention.

The GRANDEE MACHINE is constructed with high-quality materials, making it durable and long-lasting. The machine is designed to be easy to operate, which means that even new users can understand how to use it quickly.

The machine is multifunctional, meaning it can be used for four different functions: bottle feeding, washing, filling, and capping. The bottle feeding function involves the machine automatically loading empty bottles onto a conveyor belt that transports them through the production line. The washing function ensures that the bottles are thoroughly cleaned and ready for filling. The GRANDEE MACHINE filling function involves the machine automatically measuring and dispensing the desired amount of water into each bottle. Finally, the capping function involves the machine automatically sealing each bottle with a cap.

The GRANDEE MACHINE is also designed to be energy efficient, which means that it won't consume large amounts of power. This can lead to a reduction in energy costs and support environmental conservation efforts.

The machine is also designed to handle different sizes and types of bottles, making it a versatile solution for water bottling companies. The machine is capable of filling and capping up to 4000 bottles per hour, making it a highly efficient and productive solution.

Aside from its functionality, the GRANDEE MACHINE boasts a sleek design that is aesthetically pleasing. Its compact size makes it easy to fit into any factory setup, saving space while still delivering results.

Managing a water bottling business can be stressful and time-consuming, but with the GRANDEE MACHINE, the process is simplified and made more efficient. The machine offers a cost-effective and high-quality solution for companies in the water bottling industry looking to increase their production and streamline processes.

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10, 000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description

Washing machine part

The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

Filling machine part

Long tube filling type with 2 times filling process to make sure perfect filling level Liquid tank, filling valves, controlling rings, upgrading cylinder. High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.

Screw capping machine part 1 ( small screw cap)

Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The heads are raised and lowered by the action of a follower that is riding on a shaped cam.

Automatic capping machine 2 ( pressure type big cap)

Through the mechanical device or power drive, the capping head exerts pressure on the bottle cap, and the bottle cap is tightly pressed on the bottle mouth to achieve the purpose of sealing. This capping machine is fully automatic, with a total of 5 heads. When the small cap is screwed, enter the capping machine and press the big cap on the small lid. The cap mold of the big cap is customized according to the shape of the cap.

Dimension(mm) 1650*1350*2300mm

Main motor of automatic cap loader(KW) 0.4kw

Weight(KG) 400KG

Main technical parameter

Model	XGF 8-8-3	XGF 14-12-5	XGF 16-16-5	XGF 18-18-6	XGF 24-24-8	XGF 32-32-10	XGF 40-40-12	XGF 60-60-15	XGF 72-72-15
Capacity(500ml/BPH)	2000-3000	3000-4000	4000-5000	6000-8000	10000-12000	13000-15000	16000-18000	23000-25000	30000-32000
Suitable bottle shape and size	Both round of square bottle, 220ml-2000ml, Dia: 50-108mm, Height: 150-340mm									Both round of square bottle, 220ml-2000ml, Dia: 50-108mm, Height: 150-340mm
Compressed air pressure	0.3-0.7MPa									0.3-0.7MPa
Bottle washing medium	Sterile water									Sterile water
Washing pressure	0.25MPa
Main motor	1.5	2.2	2.2	3	4.5	5.5	7.5	11	17
Dimension (mm)	2000*1600*2300	2200*1800*2300	2400*1900*2300	2400*1900*2350	2700*2100*2300	2970*2260*2700	3780*2800*2700	5500*3300*2700	6500*4800*2700
Weight(KG)	2000	2500	3000	3500	4500	6500	8500	12800	15000

NAME	BRAND	AREA
PLC	Siemens	Germany
CONTACTOR	Siemens	Germany
TOUCH SCREEN	Siemens	Germany
INVERTER	Siemens	Germany
MOTOR	ABB	SWISS
PNEUMATIC PARTS	FESTO	GERMANY
ELECTRICAL PARTS	SCHNEIDER	FRANCE

For more information, please feel free to contact us to send an inquiry!

Turnkey Solution

Juice filling machine

Carbonated drink filling machine

Automatic soft drink production line

Mixed fruit juice mixing system

Mineral water filling machine

Bottle filling packaging machine

Automatic OPP BOPP hot melt Glue labeling machine

Automatic BOPP labeling machine is widely suitable for different material of containers and labels. The cost of each label is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is one of the most economical models to make mass production and integrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, like changing the label is only needed to change the PLC program, the products concept that the equipment is used for users and considered for users is embodied in everywhere.

Automatic PVC PE Sleeve Shrink Labeling Machine

This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc.

Operating Principle Of Packaging Machine

The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping.
