Automatic 20 Liter 5 Gallon Bottle Mineral Water Filling Machine For Bottled Water Bottling Line

GRANDEE MACHINE

Presenting the Automatic 20 Liter 5 Gallon Bottle Mineral Water Filling Machine from the solution mineral most bottling ideal. The item is made to accurately and effectively fill 20-liter containers with fresh, clear water.

The GRANDEE MACHINE Automatic 20 Liter 5 Gallon Bottle Mineral Water Filling Machine features advanced technology which makes it simple to run and keep maintaining. Kit could be just tailored to allow for container different and water volumes which includes system user-friendly. It is possible to fill to 200 containers each hour full causing this to be suited to both small and operations being large-scale.

The Automatic 20 Liter 5 Gallon Bottle Mineral Water Filling Machine is made of top-notch materials, ensuring durability and durability. Stainless GRANDEE MACHINE construction helps to make sure the item shall remain corrosion-resistant and rust-free despite having discovered constant an environment it is humid. The electric and technical elements can be top-notch, boosting performance general reducing downtime a great deal.

One of several standout numerous popular options that come with the merchandise is its capping system automatic. These products works concerning the capping dependable to secure the caps tightly in the container, making water become fresh and far from contamination. The capping procedure can be hugely adjustable, enabling you to personalize anxiety this can be torque capping match your requirements being specific.

GRANDEE MACHINE Automatic 20 Liter 5 Gallon Bottle Mineral Water Filling Machine was made to save energy and time. The unit comes insurance firms a bottle-loading automated that will help reduce work costs by decreasing the requirement for handbook intervention. The stuffing nozzles are made to own higher level of accuracy, reducing spillage and wastage.

Cleaning and keeping the Automatic 20 Liter 5 Gallon Bottle Mineral Water Filling Machine is just a bit of dessert. The unit is not difficult to steadfastly keep up which will endure for the duration long minimal upkeep along featuring its easy-to-clean design and construction durable. The item can be hugely a breeze to disassemble, making repairs and servicing a breeze.

The GRANDEE MACHINE Automatic 20 Liter 5 Gallon Bottle Mineral Water Filling Machine is just a dependable and solution anyone efficient to bottle water for the scale big. This system ticks most of the right boxes for many who purchasing a water top-quality solution featuring its advanced functions, sturdy construction, and display screen easy-to-use.

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10, 000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions

Products Description

5 Gallon Mineral Pure Water Filling Production Machine

The 5 gallon water filling line specially for 3-5 gallons barreled drinking water, with type QGF-150, QGF-200, QGF-300, QGF-450, QGF-600, QGF-900, QGF-1200. It integrateds bottle washing, filling and capping into one unit, in order to achieve the purpose of washing and sterilizing, The washing machine uses multi-washing liquid spray and disinfectant spray, the disinfectant can be used circularly, The capping machine can be cap barrel automatically, The line equips with water spraying device in order to ensure those caps sterile and clean, it also can automatically carry out barrel, washing, steriizing, filling, capping, counting and products discharging, with complete function, modern design and high degree of automation, It is a new kind of barreled water auto producing line, which integrates mechanism, electricity and pneumatics technologies together

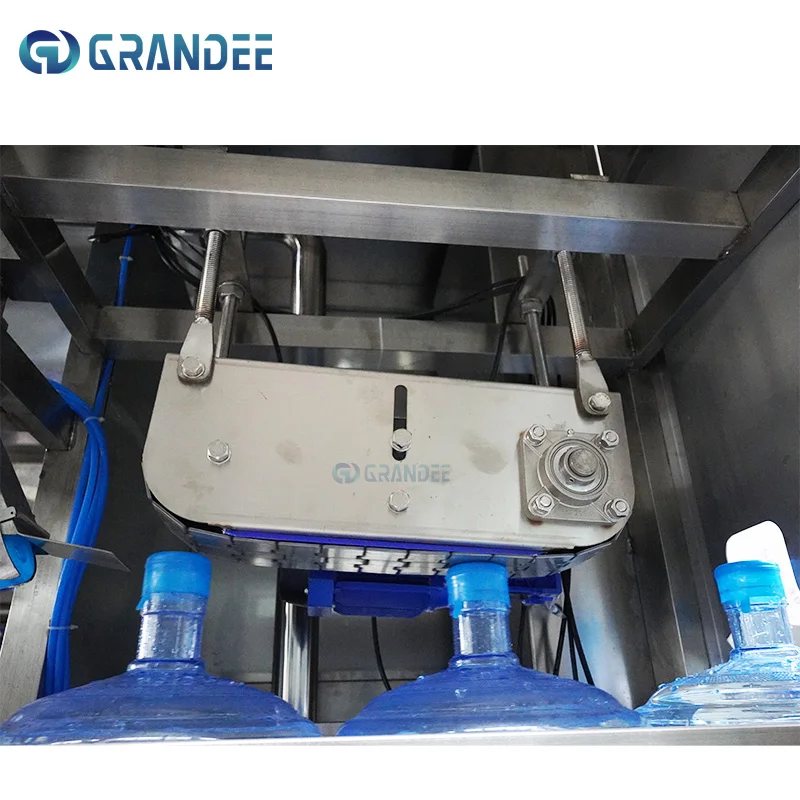

Automatic Decapping Machine

Decapping machine can be used alone, or whole production line. The cap-pulling head is mainly composed of cap pulling claw, cylinder, and other components. The cap-pulling head can be adjusted up and down, and the cap-pulling claw can be fine-tuned. It does not hurt the bottle mouth and has strong applicability to different bottle mouths. The host machine is controlled by PLC.

Leakage Tester

Automatic 5 gallon bottle Leaking Detector is a professional equipment to check leakage. With inline design, empty 5 gallon bottle is fed into testing compressed air continuously. After gas filling, pressure keeping, pressure testing, qualified bottle will be sent to next process, the damaged barrels will be kicked out of conveyor.

 Automatic rotary outer brushing machine

It can wash bottle neck, bottle body, bottle bottom and other parts, the bottle in the machine to complete the  revolution around the main shaft and its own autobiography, to achieve a full range of cleaning, cleaning water after washing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.

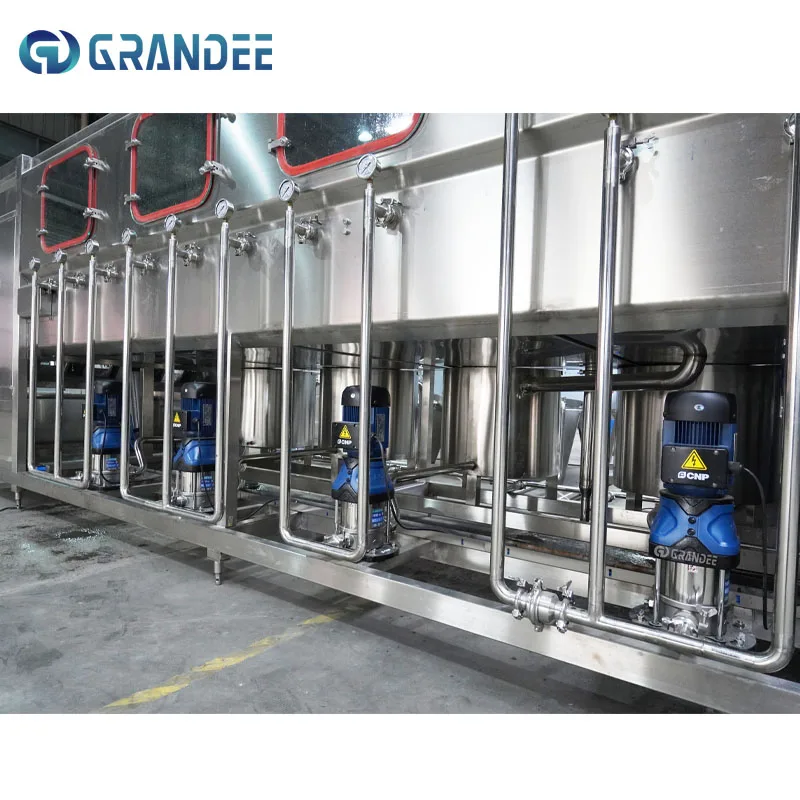

High pressure inside and outside brushing machine

1. high pressure nozzle clean inside, brusher clean outside, 2. The machine is special 5 gallons brush barrel machine, the main material is 304, beautiful appearance, reasonable structure, 3. convenient operation, automatic control, the main components is import, internal and external body brush, reduce the user's using area, it is ideal for 5 gallons filling machine equipment.

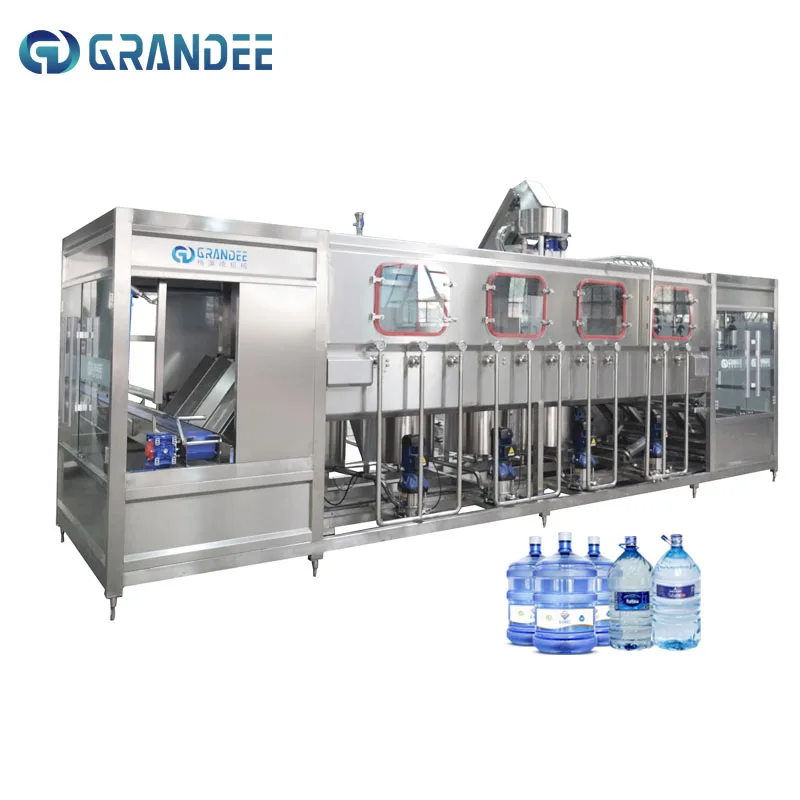

5 gallon water filling machine

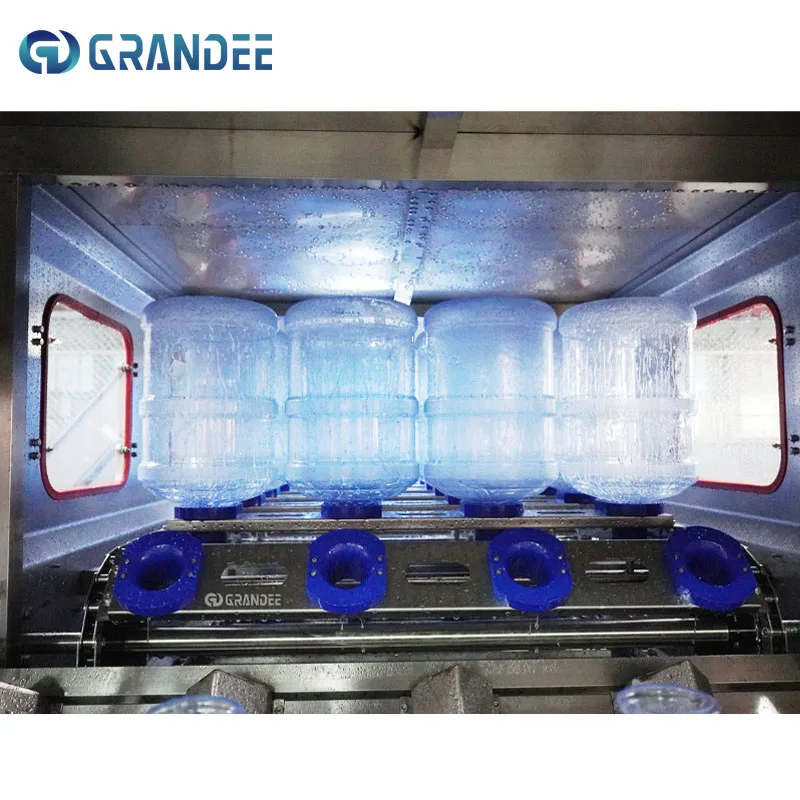

QGF series 5 gallon filling machine is designed for producing 5 gallon barrel drinking water. This machine is consisted of rinser, filler and capper. The rinser has several sprays which can be used as for both clean water rinsing and disinfectant
rinsing. The disinfectant can be recycled. The machine also has automatic capping device, and cap rinsing device. The

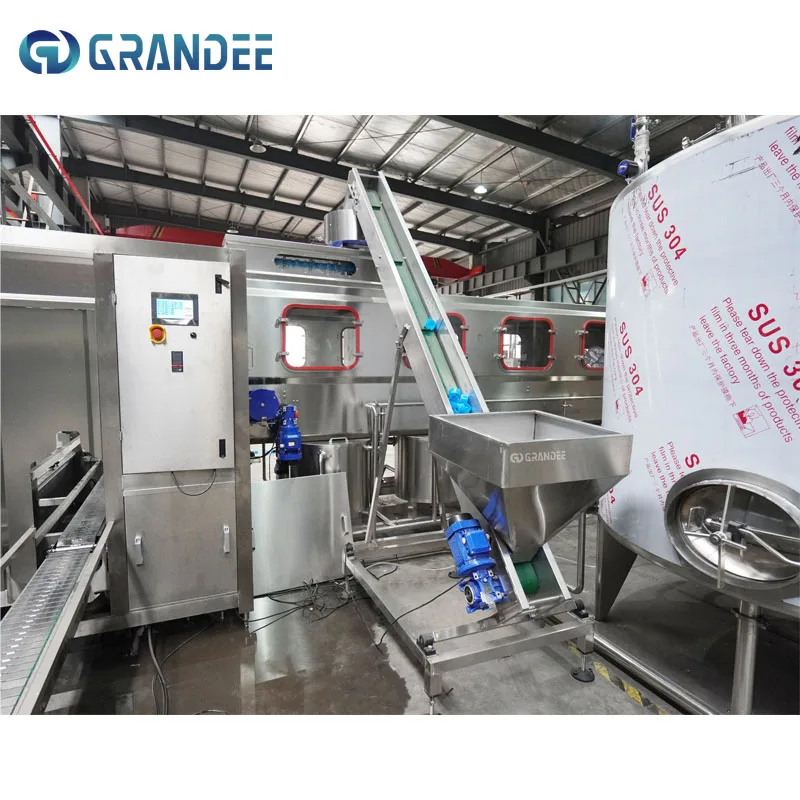

wholeproduction line can automatic feeding barrel, rinsing, sterilizing, filling, capping, counting and output.

Automatic 5 gallon cap seal shrink labeling machine

Equipment production efficiency: 100bottles/min, single shrink labels for the tray, microcomputer automatic control; Automatic detection, automatic positioning; In the rapid and energy saving, to cut off the position precision.

Automatic palletizer

1. The best choice for increasing production and efficiency. 2. Put the packaged buckets on the pallet according to a certain arrangement code for automatic stacking, which can be stacked in multiple layers and then pushed out to facilitate the forklift to transport to the warehouse for storage.

Main technical parameter

Model	QGF-120	QGF-200	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200
Capacity(500ml/BPH)	150	200	300	450	600	900	1200
Suitable bottle shape and size	18.9L bottle
Compressed air pressure	0.3-0.7MPa
Bottle washing medium	Sterile water
Washing pressure	0.25MPa
Main motor	1.5	2.2	2.2	2.2	4.5	5.5	7.5
Dimension(mm)	2900*1000*1800	3200*1200*2300	3900*1200*2300	5000*1500*2300	6200*18*2300	7970*1800*2700	10780*2000*2700
Weight(KG)	500	1500	3000	3500	4500	5500	7500

NAME	BRAND	AREA
PLC	Siemens	Germany
INVERTER	Siemens	Germany
CONTACTOR	Siemens	Germany
TOUCH SCREEN	Siemens	Germany
INVERTER	Siemens	Germany
MOTOR	ABB	SWISS
PNEUMATIC PARTS	FESTO	GERMANY
ELECTRICAL PARTS	SCHNEIDER	FRANCE

For more information, please feel free to contact us to send an inquiry!

Turnkey Solution

Juice filling machine

Carbonated drink filling machine

Automatic soft drink production line

Mixed fruit juice mixing system

Mineral water filling machine

Bottle filling packaging machine

One stage or Second stage R. O. Water treatment system

Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine

Automatic OPP BOPP hot melt Glue labeling machine

Automatic BOPP labeling machine is widely suitable for different material of containers and labels. The cost of each label is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is one of the most economical models to make mass production and integrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, like changing the label is only needed to change the PLC program, the products concept that the equipment is used for users and considered for users is embodied in everywhere.

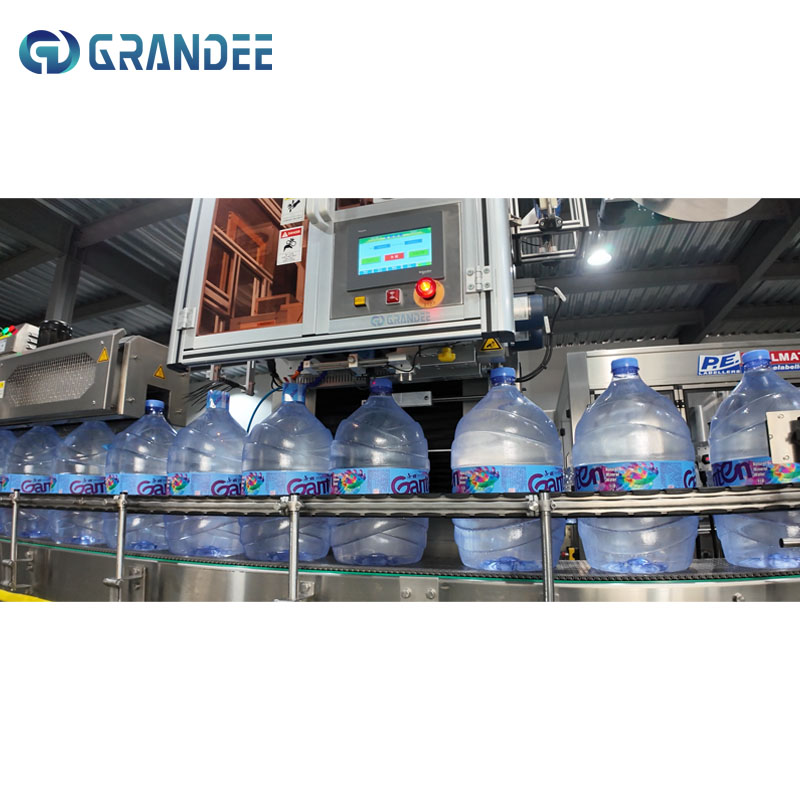

Automatic PVC PE Sleeve Shrink Labeling Machine.

This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc.

Operating Principle Of Packaging Machine

The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping.

Company Profile

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10, 000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions

We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line, can filling and sealing line, complete blowing labeling and packaging system

We have laser cutting, CNC machining centers, and other various processing equipment to provide customers with precise and reliable products. The ERP system provides an important resource integration path for production management and ensures production and delivery cycles

FAQ

Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www. grandeemachine. en. alibaba. com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for

Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years. We just not only sell drinking water machines and other related equipment, Quality is our culture. We have rich experienced engineers with technicians working team, providing good and after-sales service term, professional salesman terms

Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems

Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee, and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing

For more information, please feel free to contact us to send inquiries!
