Automatic conveyor belt carton box bottle packaging machine milk beer juice bottle packing machine

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions

Products Description

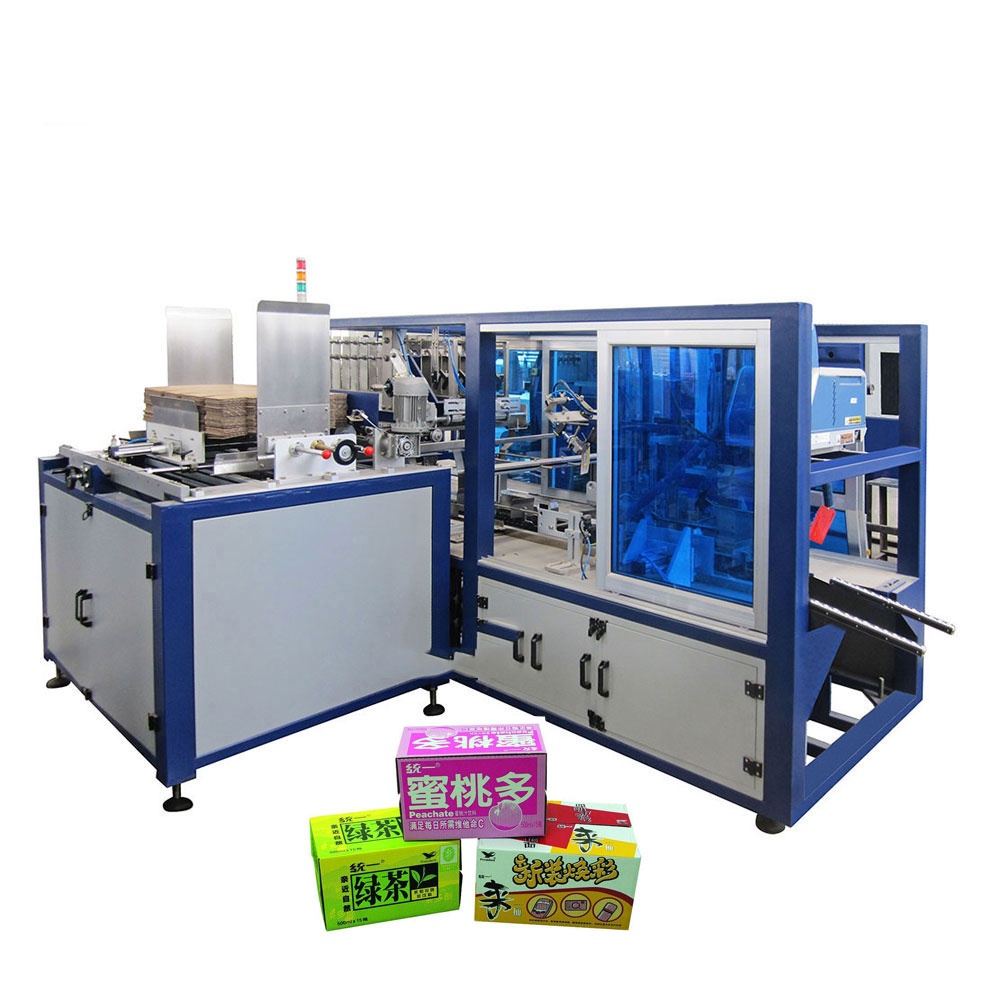

Automatic Hot Glue Carton Packing Machine

Machine description: Push-type automatic carton box opening packing and sealing machine is a Servo drive system, CNC positioning, signal detection mechanism, programmable central controller(PLC), man-machine interface parameter adjustment; The unpacked products or small packaging products automatically into the corrugated carton automation equipment, the working principle of the conveyor system will be products according to specifications, carton molding, products into the box, carton folding cover, box mouth sealing; Reduce the number of personnel and reduce the labor intensity of operators, improve the competitiveness of enterprises. Process: Through the conveyor system will be products according to specifications, carton molding, products into the box, carton folding cover, box mouth sealing, effectively reduce the staffing and reduce personnel labor intensity

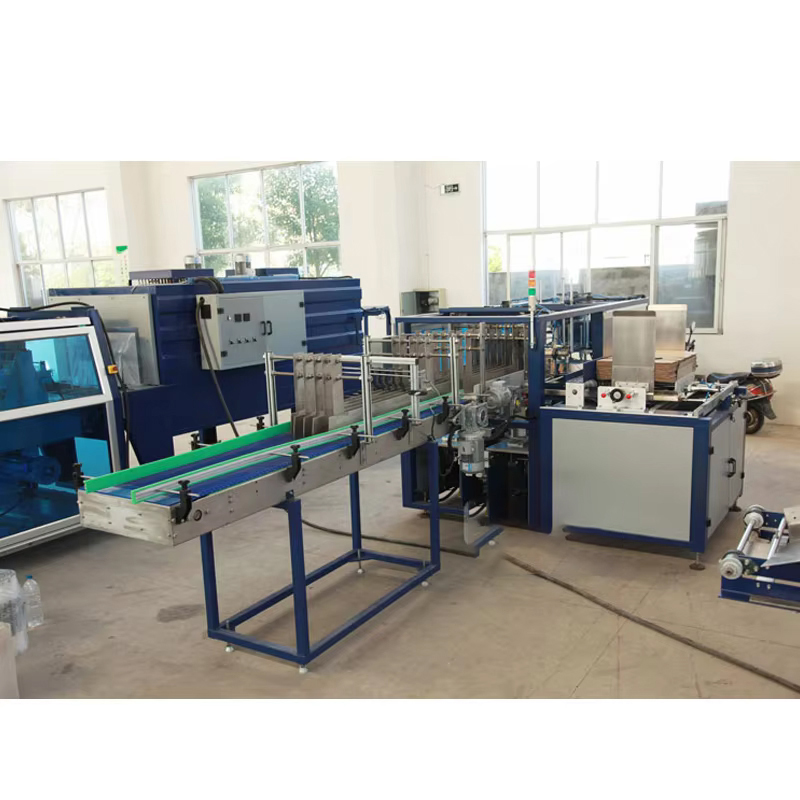

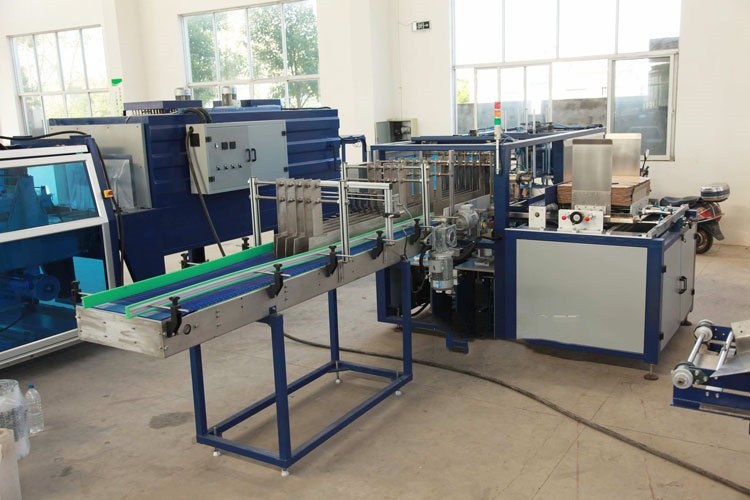

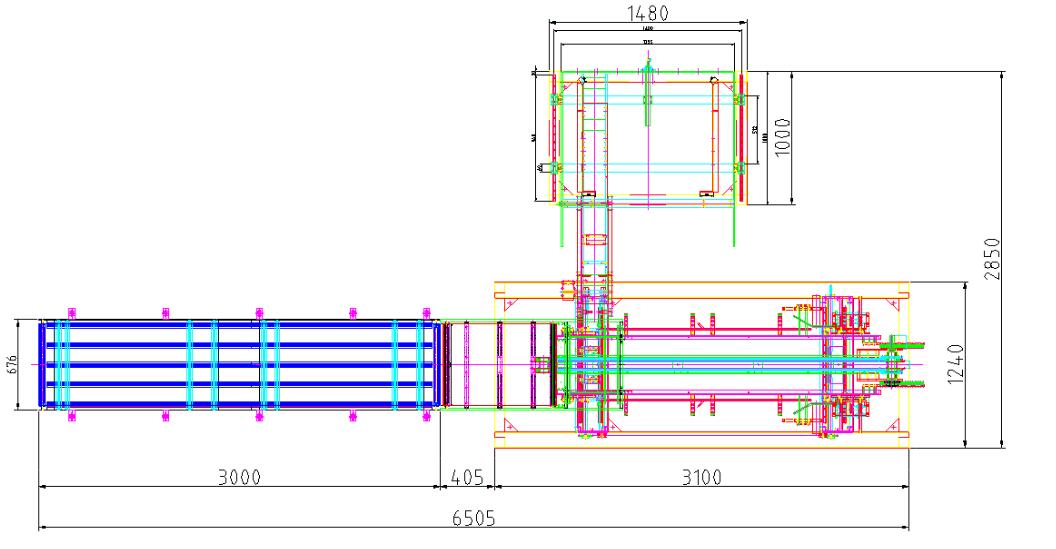

Machine Installation Layout

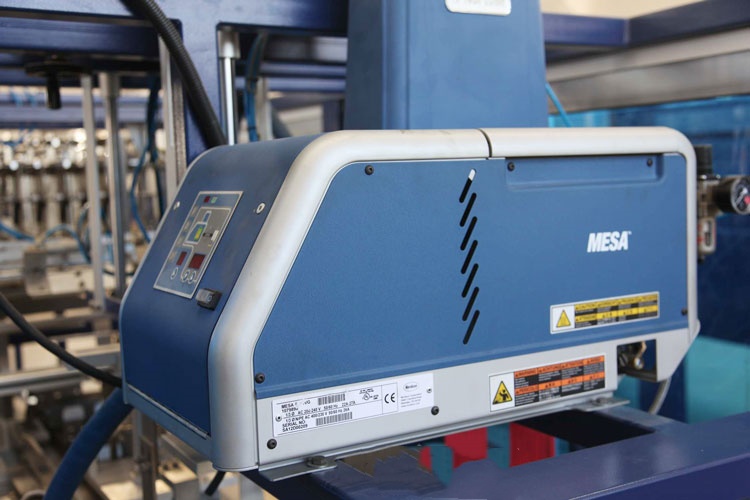

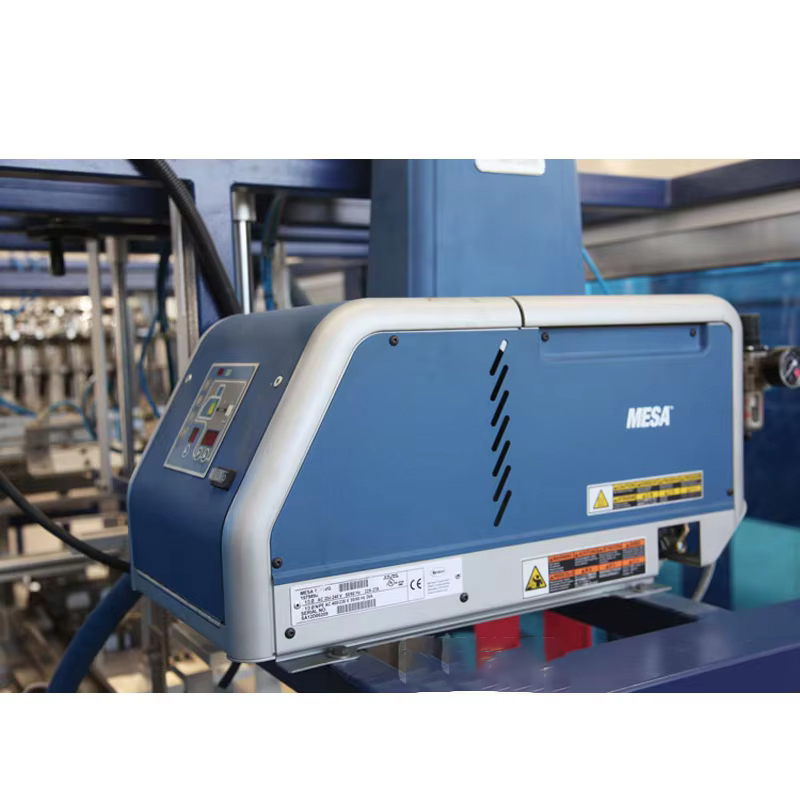

MESA and ROBATECH brand

The heating element and the hot melt glue sprayer are manufactured by MESA and ROBATECH brand

Bottles feeding are separated to multi channels at conveyor system, and then group divided and inspected evenly

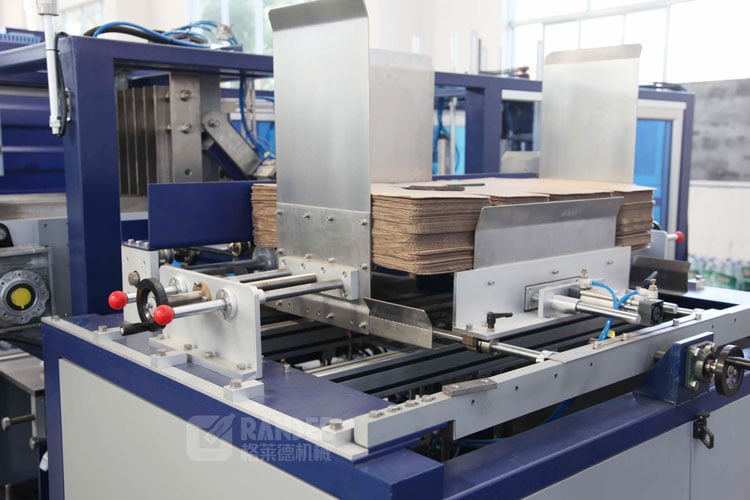

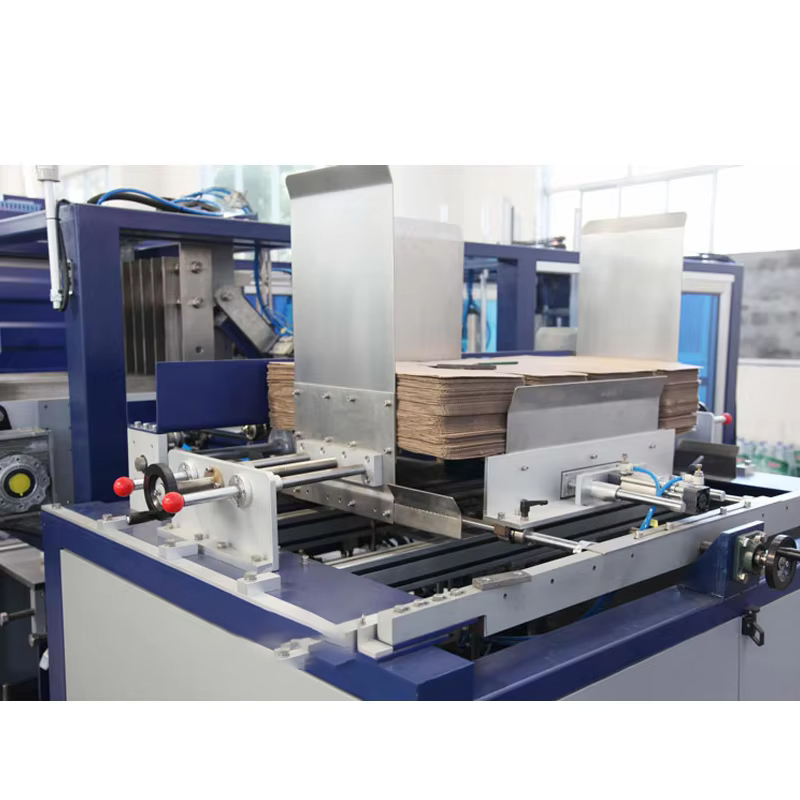

Automatic cardboard supplying system:

This equipment is installed in the side of the main machine, which stores the carton cardboard, the vacuumed sucking disk will in draft the card board into the guide slot, and then the belt will transport the cardboard into the main machine

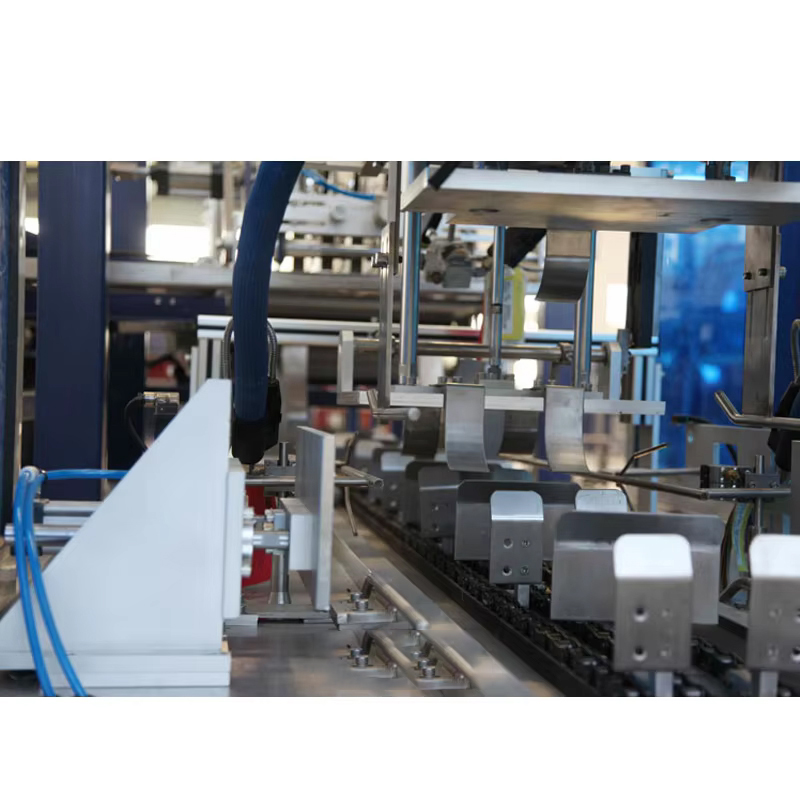

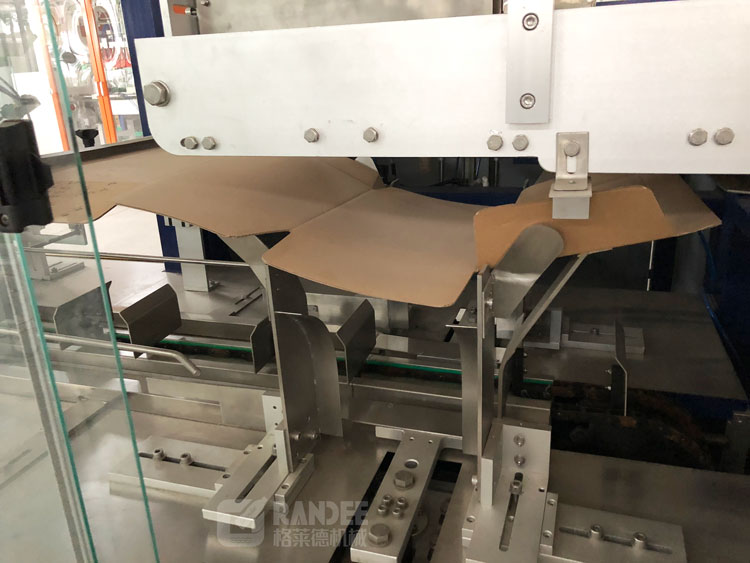

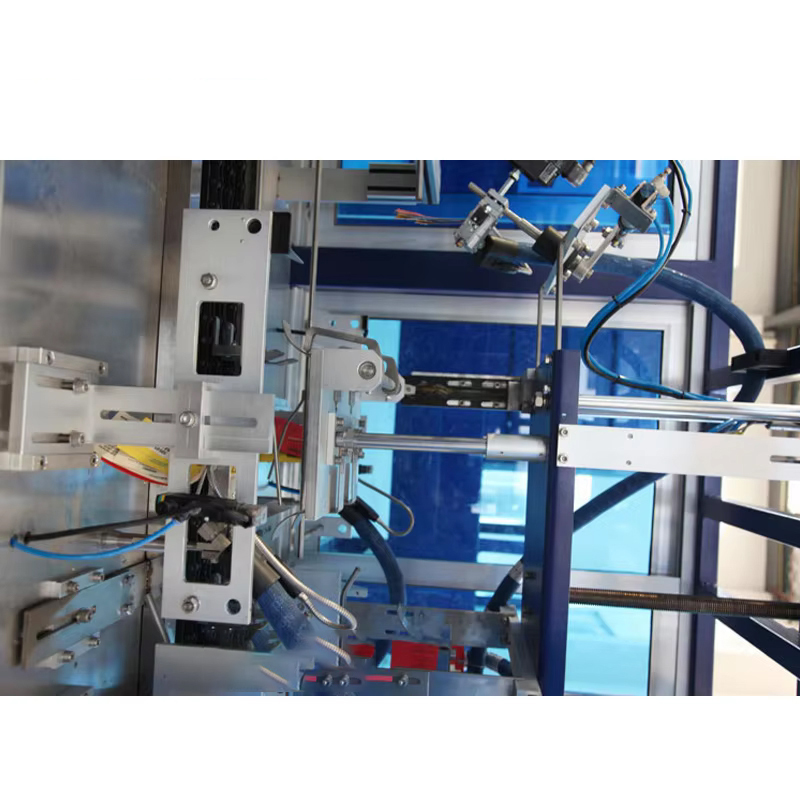

Card board folding mechanism

The servo driver of this mechanism will drive the chain to fold the card board step by step

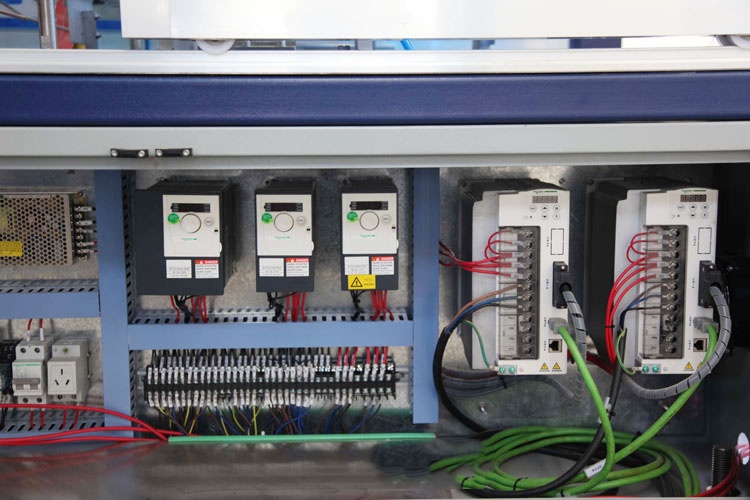

Automatic system control cabinet

Case wrap around machine adopt Siemens PLC to control the complete system of the machine. The interface is Siemens touch screen with good display of production management and status

Main technical parameter

Machine model	GD-XB25
Bottle type application	Tin can, pet bottle or glass bottle, etc
Power consumption	＜30 degree/h
Conveyor driven motor power	1.1-1.5kw
Lift servo motor power	2kw
Main chain servo motor	3kw
Cardboard feed motor power	0.55kw
Glue machine power	3kw
Control power	24V DC
Air compressure	0.6 MPa, 300L/Min
Min. packing size	300*200*160mm
Max. packing size	480*320*320mm
Capacity	25 boxes/min
Voltage	380V 50HZ 3P
Total Power	10kw
Conveyor belt height	1150mm
Machine size	6505*2850*1850 mm L*W*H
Machine weight	3500KGS

For more information, please feel free to contact us to send an inquiry

Turnkey Solution

Juice filling machine

Carbonated drink filling machine

Fruit juice mixing machine

Small bottle soft drink filling line

3-10L mineral water filling machine

Drinking water filling mahcine

One stage or Second stage R.O. Water treatment system

Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine

Automatic OPP BOPP hot melt Glue labeling machine

Automatic BOPP labeling machine is widely suitable for different material of containers and labels. The cost of each label is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is one of the most economical models to make mass production and integrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, like changing the label is only needed to change the PLC program, the products concept that the equipment is used for users and considered for users is embodied in everywhere

Automatic PVC PE Sleeve Shrink Labeling Machine

This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc

4. High speed automatic PE film shrink packing machine:

The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping

Company Profile

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions
We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line, can filling and sealing line, complete blowing labeling and packaging system

FAQ

Q1: How to find suitable machine or complete beverage production line
A1: Looking for beverage filling machine in www.grandeemachine.en.alibaba.com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for
Q2: Are you a trading company or a manufactory
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years. We just not only sell drinking water machines and other related equipment, Quality is our culture. We have rich experienced engineers with technicians working team, providing good and after-sales service term, professional salesman terms
Q3: Do you have technical support after we purchased your machines
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems
Q4: If you buy our machines, can you offer us wear-out spare parts
A4: We provide our high quality machine 2 years guarantee, and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing

The GRANDEE MACHINE’s Automatic conveyor belt carton box bottle packaging machine is a top-of-the-line device for packing bottles, cartons, and boxes quickly and efficiently. This machine was specially designed to be used for packing various kinds of beverages such as milk, beer, and juice.

It consists of an automatic conveyor system that ensures a smooth and steady flow of bottles, cartons, and boxes to the packaging station. It is powered by a high-performance engine and it can easily handle heavy loads of up to 20kg. The belt is also adjustable, so the position of the bottles can be customized to suit different packaging.

It comes by having an automatic bottle system that ensures constant and precise positioning of the bottles on the conveyor belt. It comprises of a series of detectors that identify the bottles if they are correctly positioned for packaging as they approach the conveyor belt.

After the bottles are correctly positioned, the packaging stage starts. It comes equipped with state-of-the-art packaging technology that can handle both cartons and boxes. It is loaded with a sealing mechanism that can seal the cartons or boxes quickly, ensuring that the contents are secure and safe.

Made of high-quality and durable materials, it was designed to operate in demanding surroundings and can withstand extensive use without breaking down. It is effortless to keep up and requires minimal maintenance, which makes it a great choice for businesses which are looking for a reliable and durable packaging machine.

It is easy to use, with a user-friendly interface that makes it easy for anybody to make use of. It was made with safety in mind, and its safety features ensure that it is safe to operate even in hazardous environments.

GRANDEE MACHINE's Automatic conveyor belt carton box bottle packaging machine is the perfect choice for businesses that require a reliable and efficient packaging machine.
